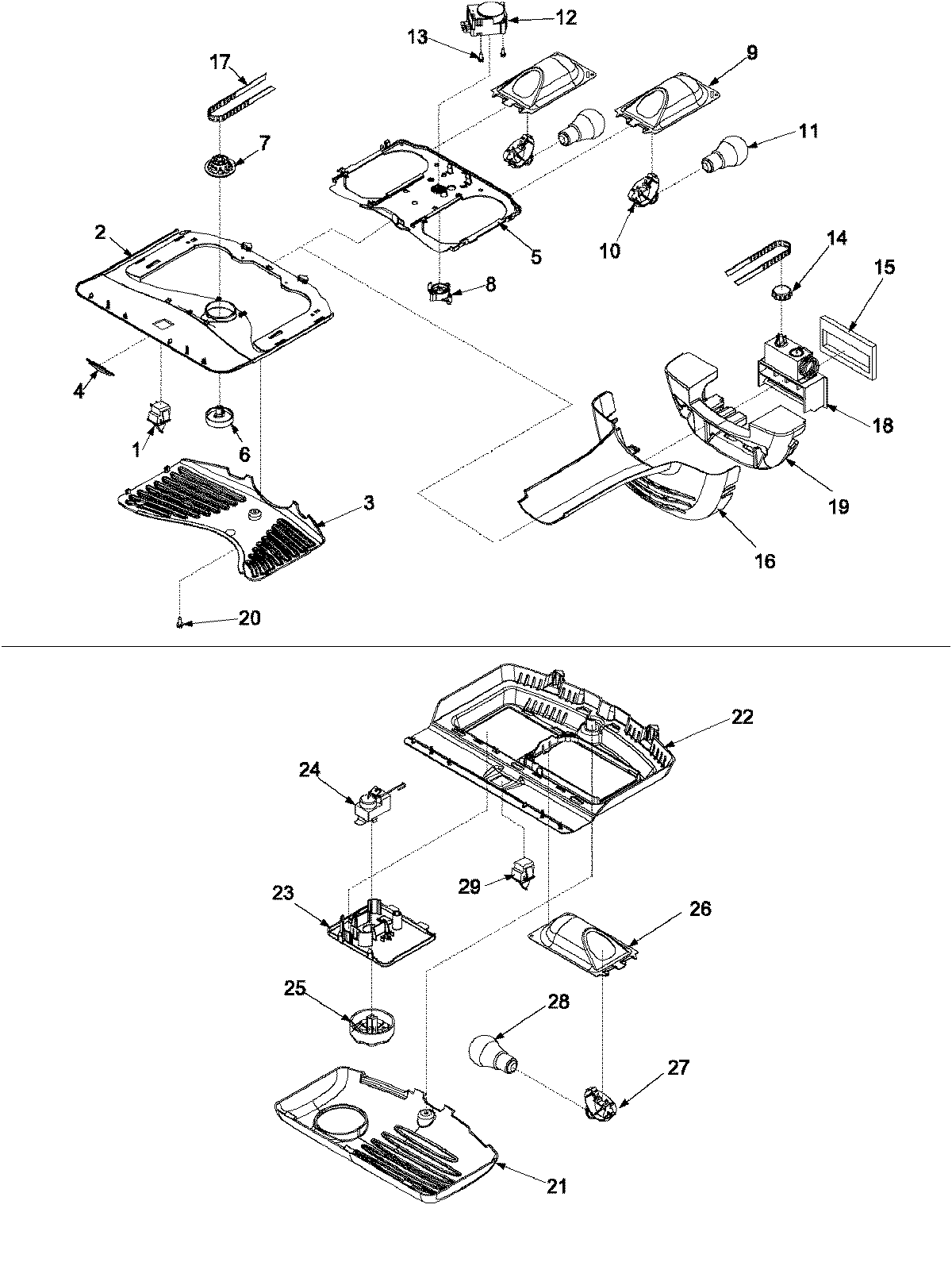

PBB1951HEB 04 – CONTROLS

Products

Position	Product
1	Switch, Light (2)
2	Bracket, Control and Lights
3	MAY 67002301
4	MAY 67003398
5	WP67002085 Whirlpool Refrigerator Housing
7	67001033 Whirlpool Refrigerator Knob Gear
8	67001034 Whirlpool Refrigerator Tensioner Belt
12	WP67001036 Whirlpool Refrigerator Defrost Timer
13	MAY M0216705
14	MAY 67001037
15	MAY 67001038
16	MAY 67003878
17	MAY 67001040
18	MAY 67001041
19	MAY 67003803
20	MAY M0211018
21	MAY 67001285
22	WP12476002 Whirlpool Refrigerator Module
23	Panel, Fz Control
24	WP67003000 Whirlpool Refrigerator Control
26	MAY 67001035
27	Socket, Light (2)
28	RANGE ONLY 40W 120V APPL BULB
29	MAY 12466101
30	MAY 67001049
30	Harness, Controls (Refrigerator) (Includes 16)
