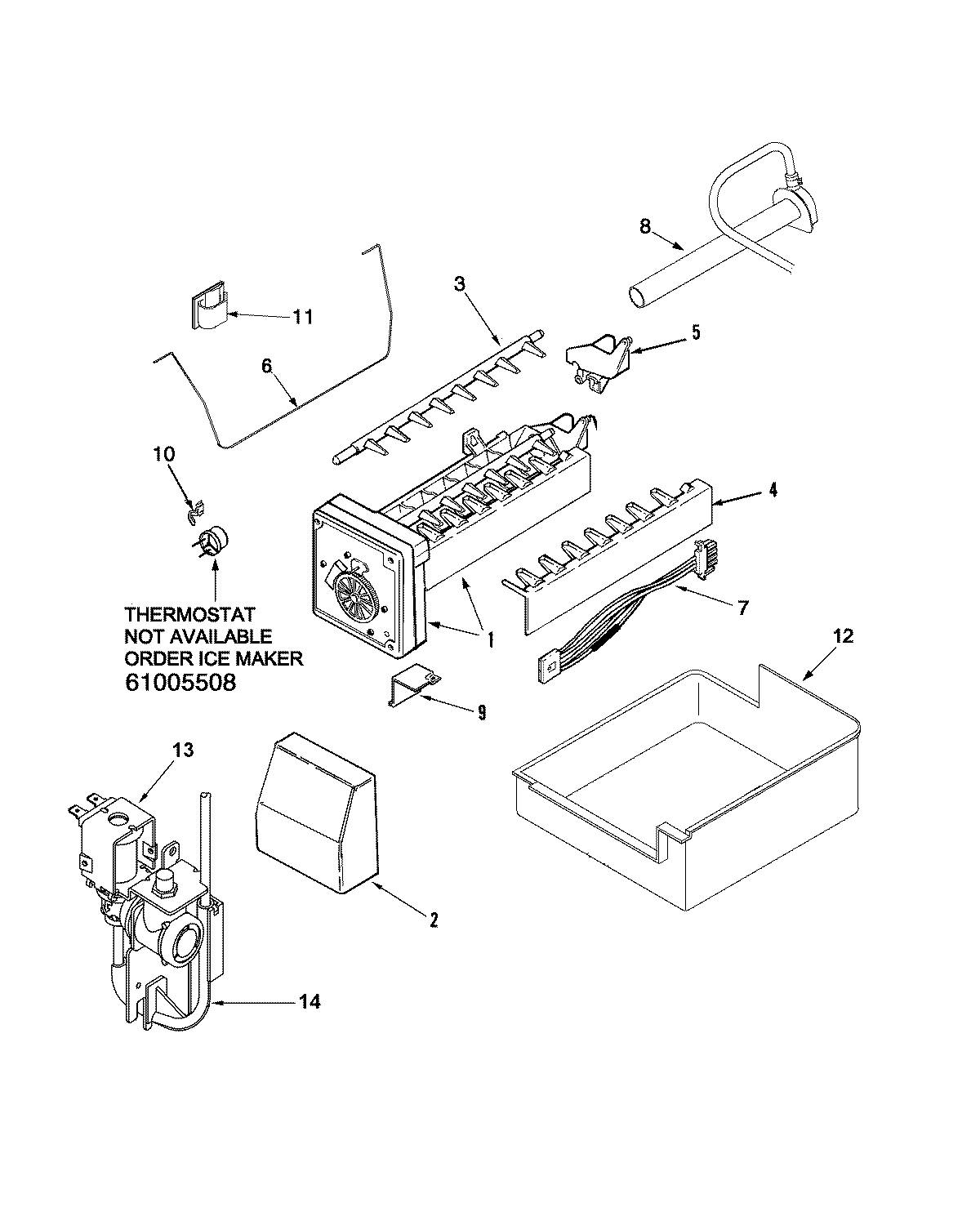

PBB1951HEQ 08 – OPTIONAL ICE MAKER KIT-IC11B

Products

Position	Product
1	WP2256087 Whirlpool Refrigerator Bracket
1	MAY M0211018
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
2	WPW10289690 Whirlpool Ice Maker Cover
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	WP628356 Whirlpool Refrigerator Fill Cup
6	ARM-SHUT
7	WPD7813010 Whirlpool Refrigerator Wire Harness
8	ELBOW, FILL TUBE
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	WP2315522 Whirlpool Refrigerator Clip
11	WPM0104106 Whirlpool Refrigerator Clip
12	WP67001255 Whirlpool Ice Bucket
13	WP67003753 Whirlpool Refrigerator Inlet Valve
14	MAY B5705323
15	W10833902 Whirlpool Refrigerator Clamp
16	MAY A3223101
17	Clip
18	W11033771 Whirlpool Refrigerator Coupling
19	8003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit
20	MAY 10526701
21	MAY 67001264
