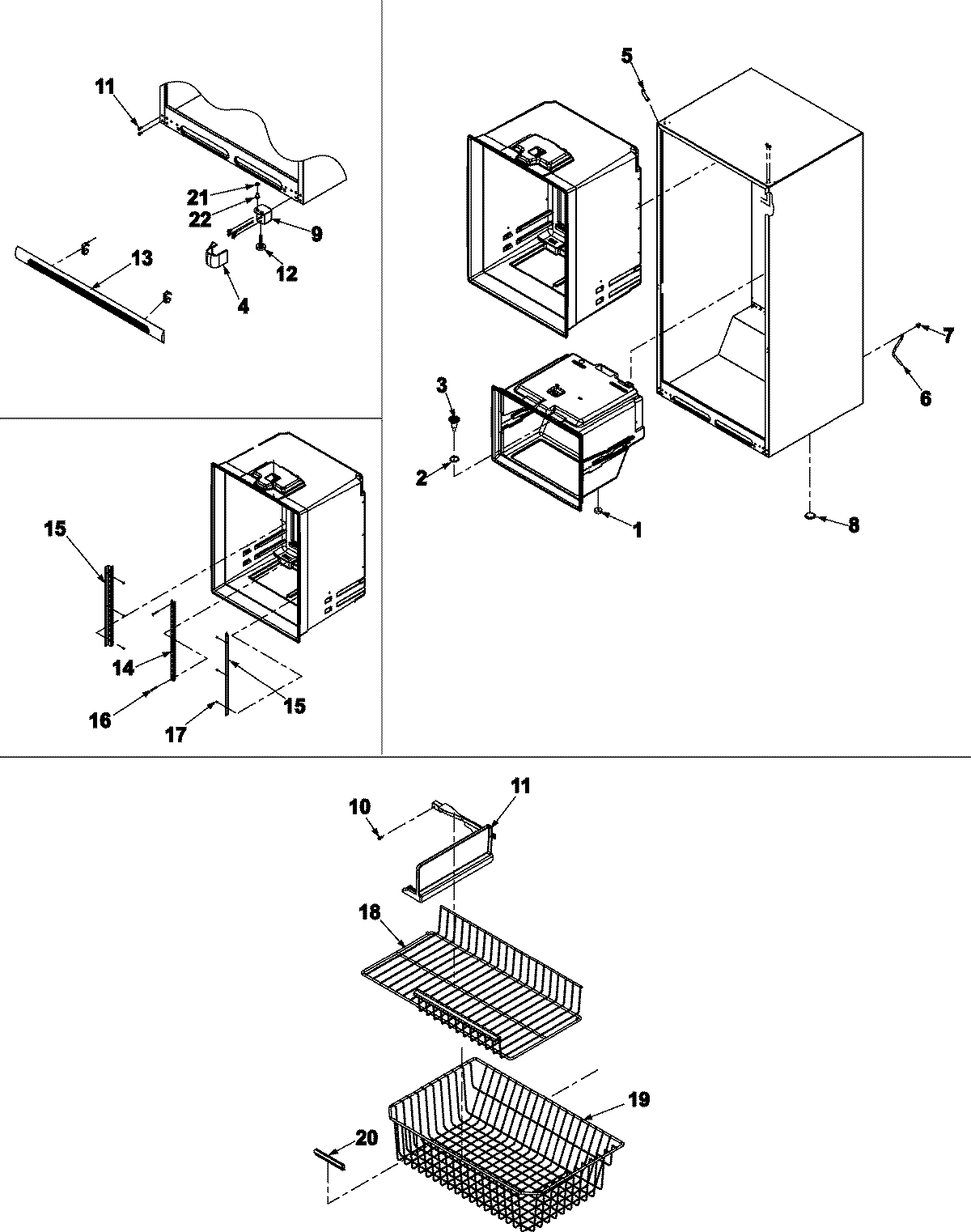

PBF1951KEW 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

PBF1951KEW 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Written by

in

PBF1951KEW 08 – INTERIOR CABINET/FRZ SHELVES/TOE GRILLE

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY 12561901W
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
912465002WD Whirlpool Refrigerator Bottom Hinge
9MAY 67006491
10MAY 67006608
11Divider, Upper Basket
12W11177593 Whirlpool Leveling Feet
13Grille Assembly (Includes Clips) (White)
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
18Shelf, Freezer (Upper)
19HANDLE, BASKET/SHELF
20WP12754803 Whirlpool Refrigerator Freezer Basket
21MAY M0274057
2267007018 Whirlpool Refrigerator Bottom Hinge PIN
