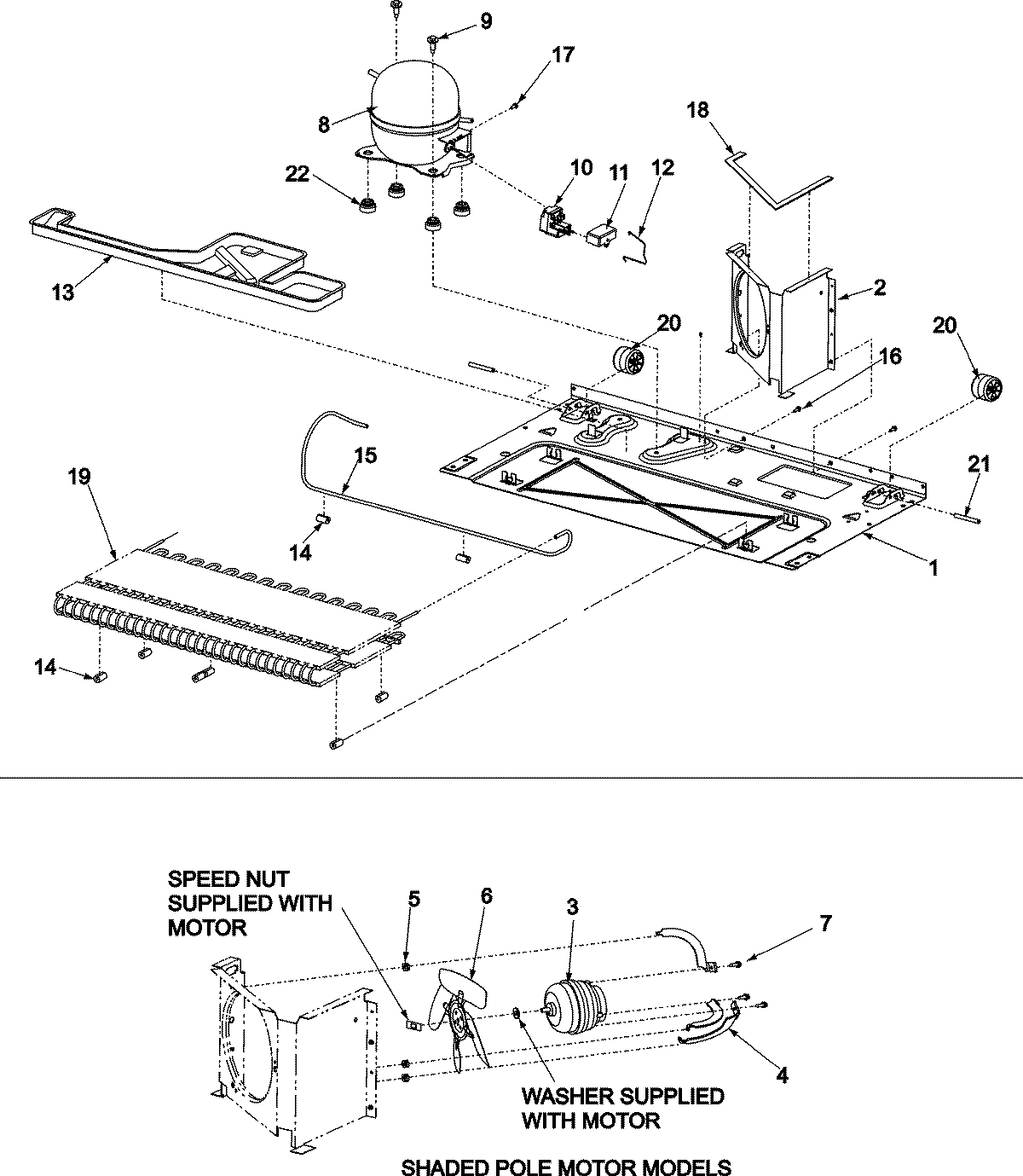

PBF2253HEB 02 – COMPRESSOR (SERIES 10)

PBF2253HEB 02 – COMPRESSOR (SERIES 10)

Written by

in

PBF2253HEB 02 – COMPRESSOR (SERIES 10)

Products

PositionProduct
1MAY 67001089
2SHROUD, CONDENSER FAN
3833697 Whirlpool Condenser Fan Motor
4Bracket, Motor (3)
5GROMMET, BRACKET
6WP12587601 Whirlpool Refrigerator Condenser Blade
7Screw (3)
8W10160407 Whirlpool Refrigerator Compressor
9MAY M0221523
10W10613606 Whirlpool Refrigerator Start Device Relay Overload
11CAPACITOR
12MAY 12576801
13MAY 67001091
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67001092
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP67006132 Whirlpool Refrigerator Condenser
20WP67005149 Whirlpool Roller
2167006434 Whirlpool Axle Pin
2267003493 Whirlpool Refrigerator Compressor Grommet
23MAY 67003823
