PBF2255HEQ 01 – CABINET BACK

PBF2255HEQ 01 – CABINET BACK

Written by

in

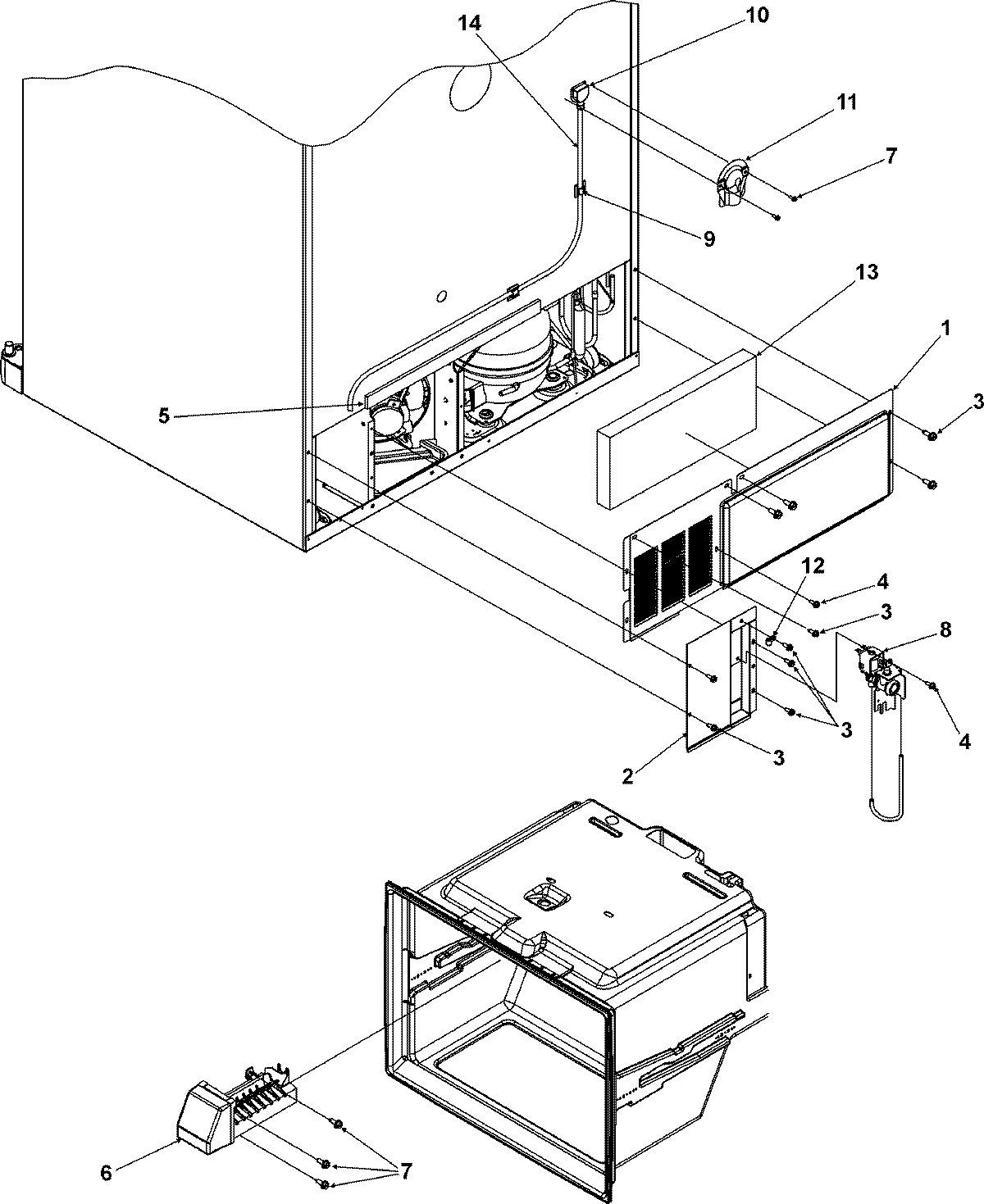

PBF2255HEQ 01 – CABINET BACK

Products

PositionProduct
1BACK, MACH COMP
2MAY 67001097
3MAY M0238616
4681390 Whirlpool Refrigerator Screw
5Gasket
6D7824706Q Whirlpool Refrigerator Ice Maker Assembly
7MAY M0211018
8WP67003753 Whirlpool Refrigerator Inlet Valve
9WPM0104106 Whirlpool Refrigerator Clip
10Clip
10ELBOW, FILL TUBE
11COVER, WATER LINE
12W10833902 Whirlpool Refrigerator Clamp
1367003796 Whirlpool Refrigerator Fiber Acoustic
14Tubing, Plastic
14MAY A3223101
15WP67006506 Whirlpool Refrigerator Power Cord
