PBF2255HEW 09 – REFRIGERATOR DOOR

PBF2255HEW 09 – REFRIGERATOR DOOR

Written by

in

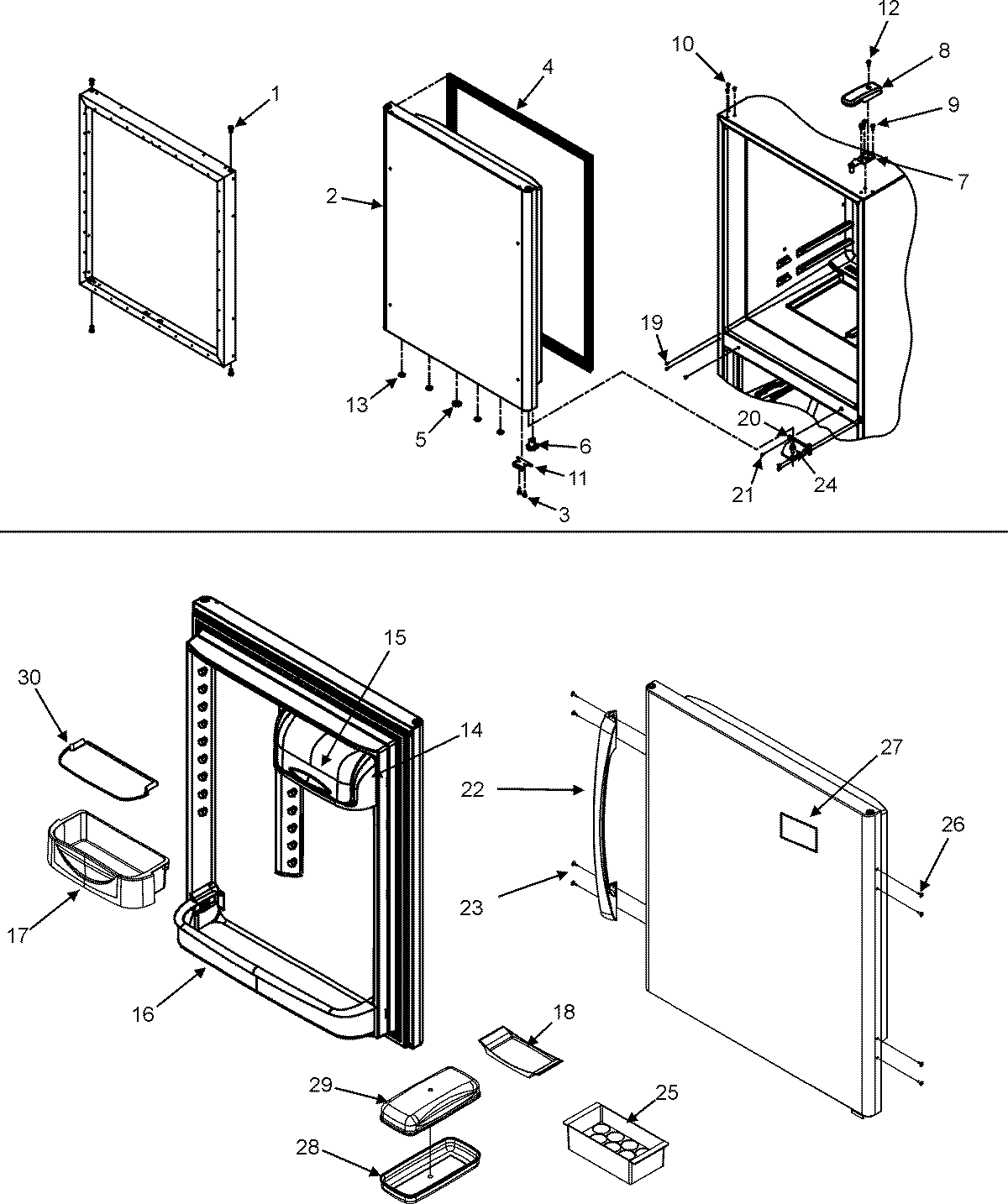

PBF2255HEW 09 – REFRIGERATOR DOOR

Products

PositionProduct
1WP67004977 Whirlpool Refrigerator Door Hinge Bushing
2DOOR ASSY., REF. FOAM (WHT)
3MAY M0211533
4W10443313 Whirlpool Door Gasket
5MAY A3080002
6WP67003638 Whirlpool Closing Cam
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001014 Whirlpool Refrigerator Top Hinge Cover White
9MAY M0238731
10MAY M0310729
11MAY 10447108
12WP8281196 Whirlpool Screw
1310712401 Whirlpool Refrigerator Vent Plug (White)
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP67003637 Whirlpool Dairy Door
16RETAINER, DOOR
17WPW10371194 Whirlpool Refrigerator Door Shelf Bin Basket Bucket
18MAY 29936-2
19WP489349 Whirlpool Refrigerator Screw
20WP12607103WD Whirlpool Refrigerator Center Hinge
21MAY M0226233
22MAY 67004403
23MAY 67004046
24WP67006642 Whirlpool Refrigerator Pin
25MAY 67215-2
26MAY 12246601
272324038 Whirlpool Refrigerator Nameplate
28MAY 67004404
29MAY 67004405
30GRIPPER, BUCKET
