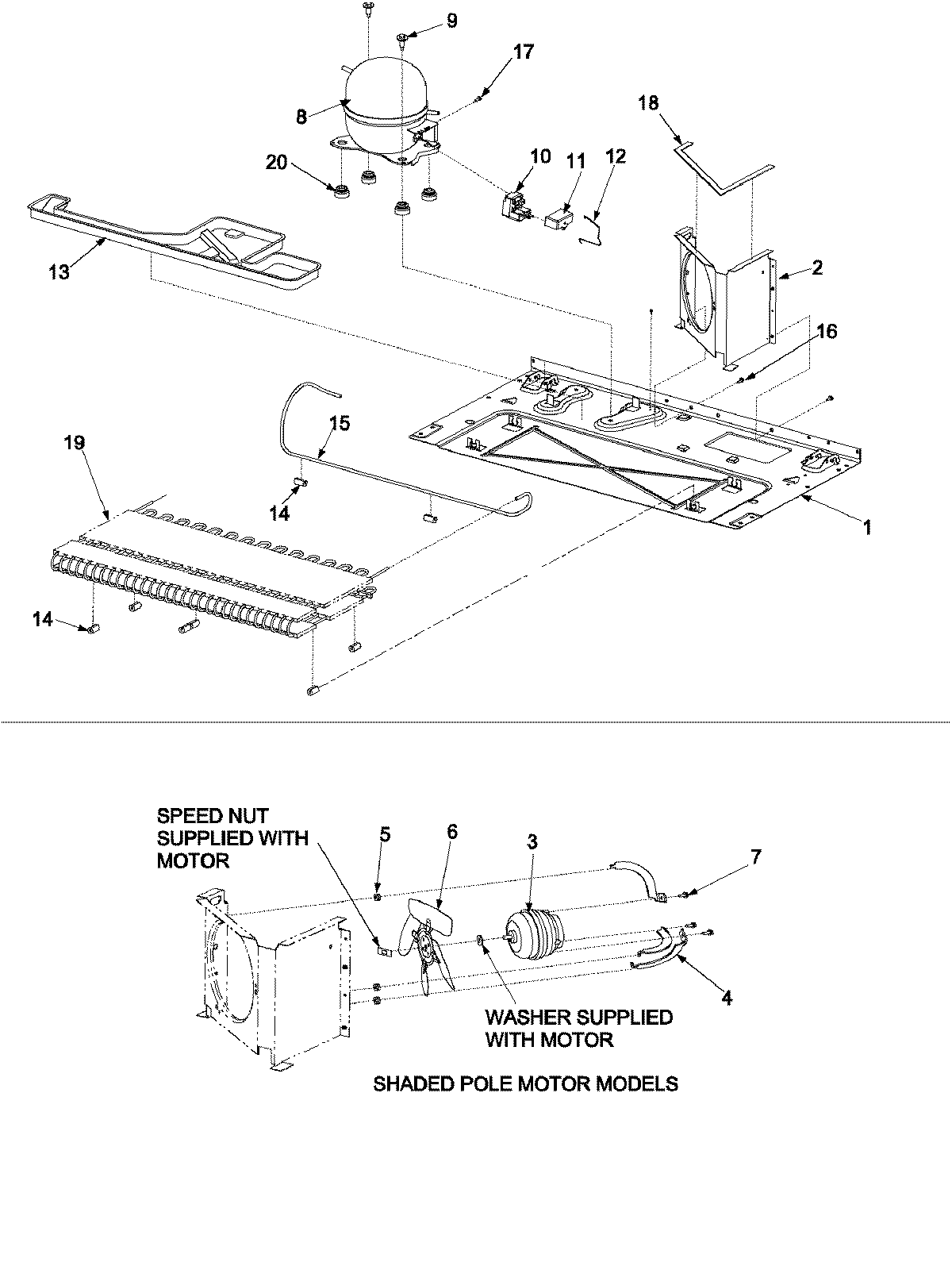

PBF2555HEB 02 – COMPRESSOR (SERIES 10)

PBF2555HEB 02 – COMPRESSOR (SERIES 10)

Written by

in

PBF2555HEB 02 – COMPRESSOR (SERIES 10)

Products

PositionProduct
1MAY 67001512
2SHROUD, CONDENSER FAN
3833697 Whirlpool Condenser Fan Motor
4Bracket, Motor (3)
5GROMMET, BRACKET
6WP12587601 Whirlpool Refrigerator Condenser Blade
8W10160407 Whirlpool Refrigerator Compressor
9MAY M0221523
10W10613606 Whirlpool Refrigerator Start Device Relay Overload
11CAPACITOR
12MAY 12576801
13WP12579803 Whirlpool Refrigerator Drain Pan
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67002494
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
19MAY 67003195
2067003493 Whirlpool Refrigerator Compressor Grommet
21MAY 67003823
