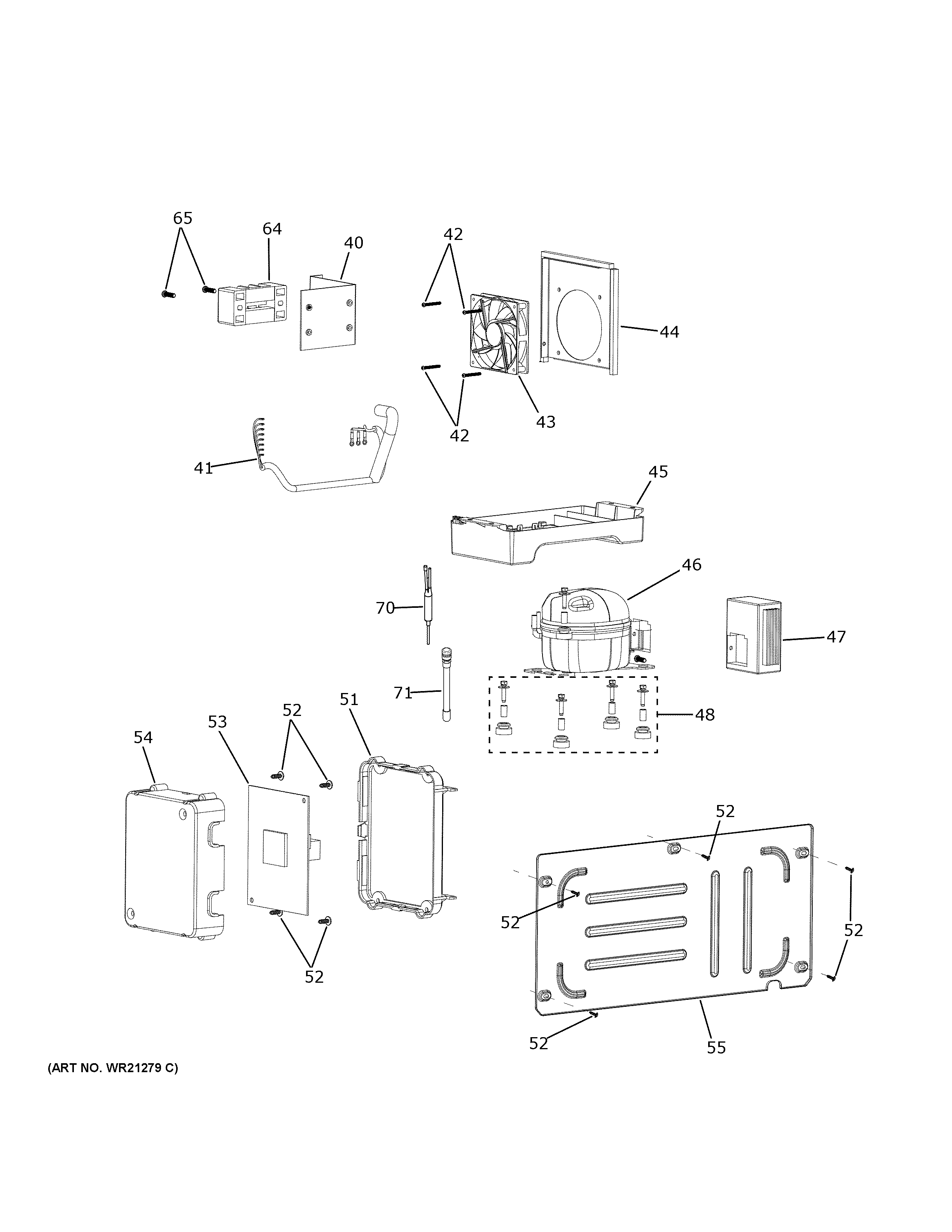

PBV10R5VBSS MACHINE COMPARTMENT

Products

Position	Product
40	TERMINAL BLOCK MOUNTING PLATE
41	MAIN HARNESS
42	CONDENSER FAN SCREW
43	CONDENSER FAN
44	CONDENSER FAN BRACKET
45	DRAIN PAN
46	COMPRESSOR
47	INVERTER
48	COMPRESSOR MOUNTING HARDWARE
51	MAIN BOARD COVER
52	WR01X29254 GE Screw
53	MAIN CONTROL BOARD
54	MAIN BOARD HOUSING
55	MACHINE COVER
64	WR55X32535 GE Terminal Block
65	SCREW
70	FILTER DRIER
71	WR87X30876 GE Refrigerator R600 Process Valve with Red Cap
