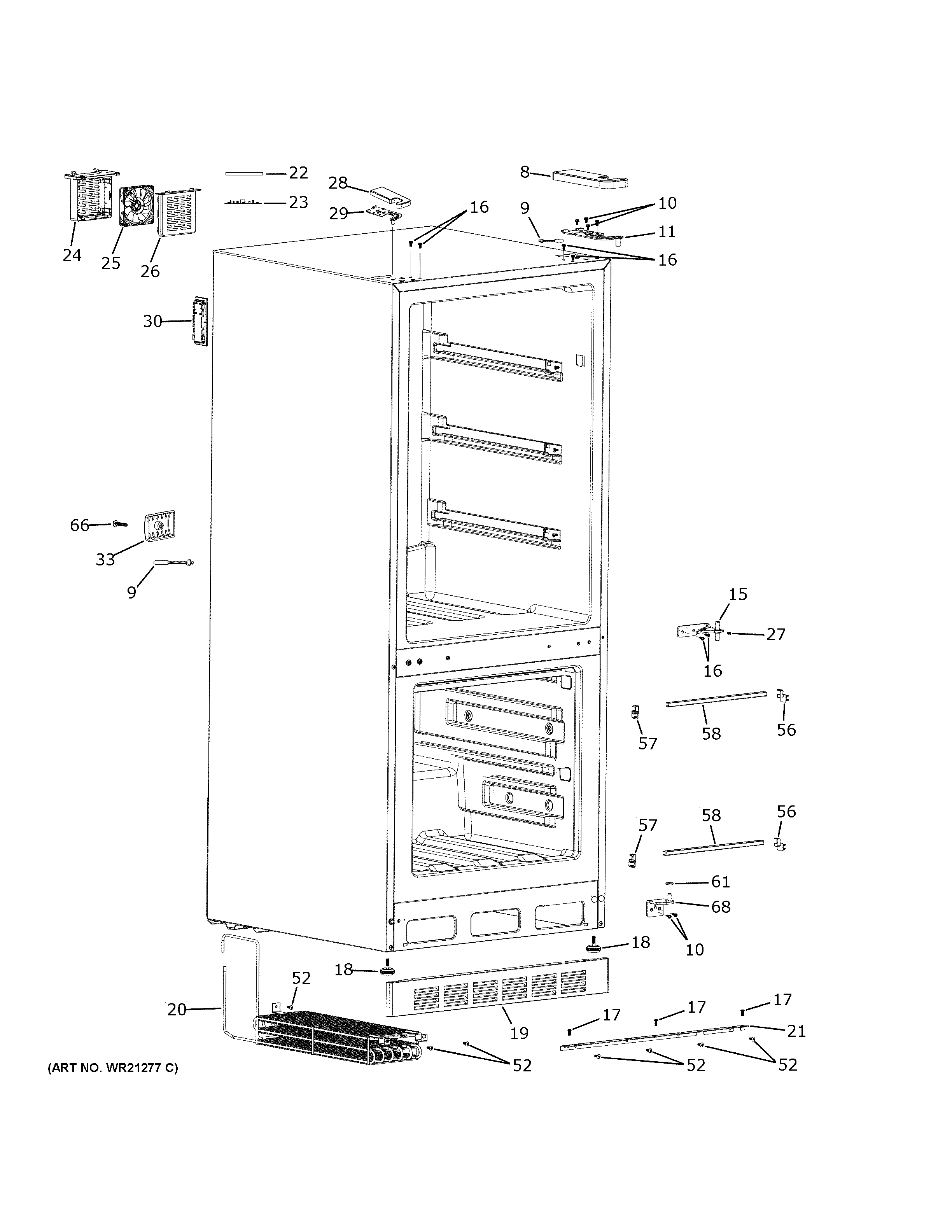

| 8 | TOP HINGE COVER - RIGHT |
| 9 | WR09X40626 GE Refrigerator Thermistor |
| 10 | WR01X29269 GE Refrigerator Hexagon Head Bolts |
| 11 | TOP HINGE - RIGHT |
| 15 | MIDDLE HINGE |
| 16 | SCREW |
| 17 | TOE KICK SCREW - STAINLESS STEEL |
| 18 | LEVELING LEG |
| 19 | TOE KICK - STAINLESS STEEL |
| 20 | CONDENSER |
| 21 | TOE KICK BRACKET |
| 22 | LED COVER |
| 23 | LED BOARD |
| 24 | REFRIGERATOR FAN HOUSING |
| 25 | REFRIGERATOR FAN |
| 26 | REFRIGERATOR FAN HOUSING COVER |
| 27 | SCREW |
| 28 | TOP HINGE COVER - LEFT |
| 29 | TOP HINGE - LEFT |
| 30 | DISPLAY BOARD |
| 33 | THERMISTOR COVER |
| 52 | WR01X29254 GE Screw |
| 56 | EVAPORATOR CLIP - RIGHT |
| 57 | EVAPORATOR CLIP - LEFT |
| 58 | EVAPORATOR TRIM |
| 61 | BOTTOM HINGE SHIM |
| 66 | SCREW |
| 68 | BOTTOM HINGE |
