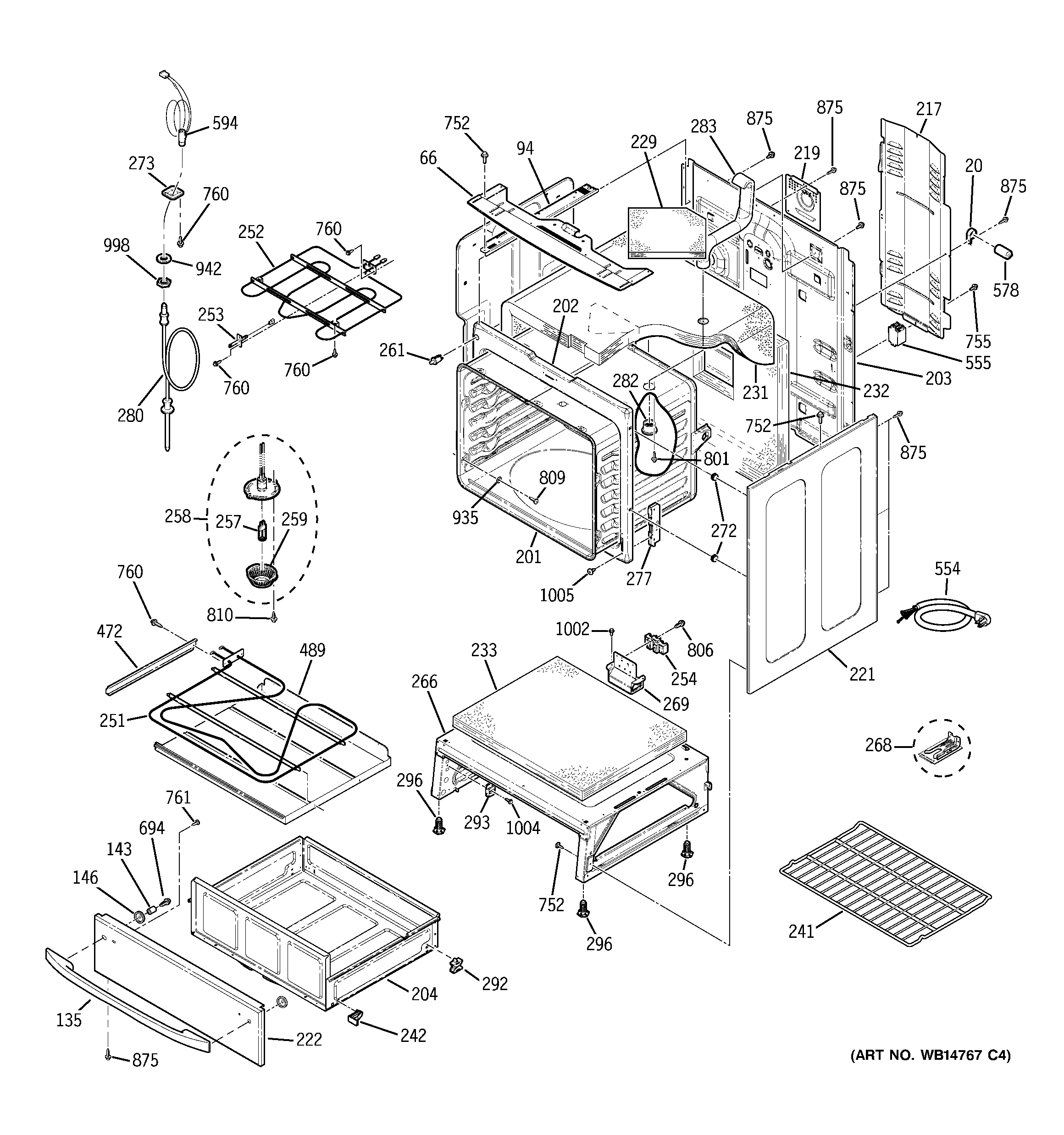

PCB909DP2WW BODY PARTS

PCB909DP2WW BODY PARTS

Written by

in

PCB909DP2WW BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66GEN WB34T10083
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
135WB15T10136 GE Oven Drawer Handle
135GEN WB15T10138
143SPACER DR HANDLE
146GEN WB01X1256
201GEN WB63T10145
202GEN WB63T10096
203GEN WB63T10147
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28881 GE Oven Side Panel Black
221WB56X28884 GE Oven White Side Panel
222GEN WB56T10174
222GEN WB56T10173
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10211 GE Oven Insulation
232GEN WB35T10023
233GEN WB35T10022
241WB48T10082 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10075
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
266WB63X28540 GE Base Assembly Rivet
268GEN WB02T10416
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
554WB08T10029 GE Range Cord 4' 3-Prong
555WB18T10352 GE Oven Relay
578WB27T10662 GE Oven Capacitor
594GEN WB08T10040
694WB1K5157 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
755WZ4X245D GE Screw Package
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
