PCB909DP3BB CONTROL PANEL

PCB909DP3BB CONTROL PANEL

Written by

in

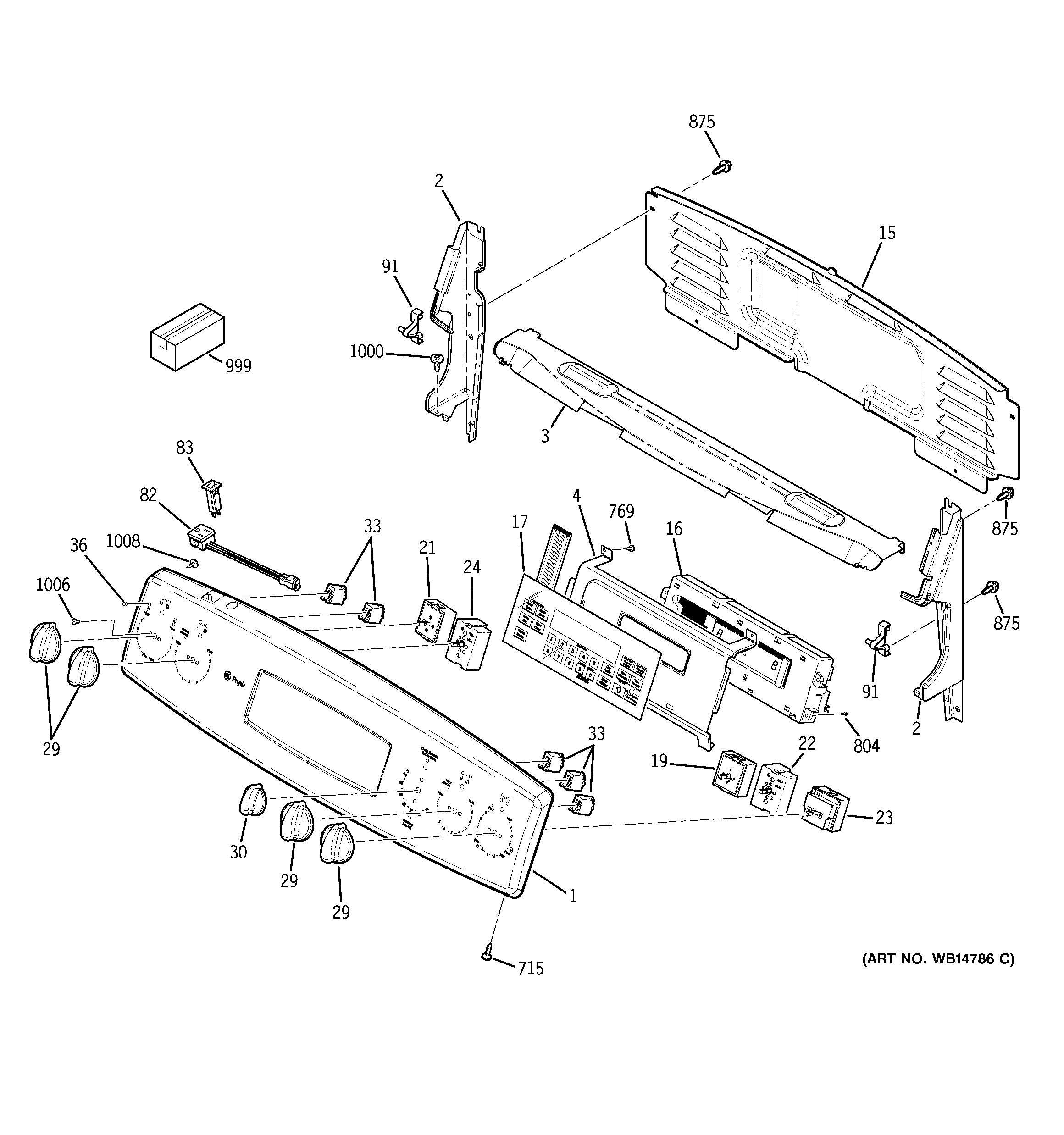

PCB909DP3BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10664
1GEN WB07T10663
2WB36T11207 GE Oven End Plate LT
2WB36T11204 GE Oven Right End Plate
2WB07X27823 GE End Plate LT (Black)
2WB36T11206 GE Oven End Plate Right
3WB02X28994 GE Heat Shield
4GEN WB02T10491
15GEN WB02T10499
16GEN WB27T11150
17GEN WB27T11131
17GEN WB27T11132
19INFINITE CONTROL SWITCH
21WB24T10153 GE Oven Infinite Switch Control
22WB24T10146 GE Oven Surface Element Control
23WB24T10162 GE Oven Infinite Control Switch
24WB24T10145 GE Oven Burner Switch
29KNOB PROFILE SU
29KNOB PROFILE SU
30KNOB GE S/U (BLK)
30KNOB GE S/U (WHT)
33GEN WB25T10090
33GEN WB25T10088
36LENS
82GEN WB08T10032
82GEN WB08T10034
83BREAKER RECEPTACLE
83GEN WB08T10035
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
715WD2X433 GE Dishwasher Trim Screw
769WZ4X44D GE Screw Package
804WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
999GEN 29-5667
999GEN 31-14806
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-10679
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1008WB1X5904 GE Oven Screw 8-18 BA
