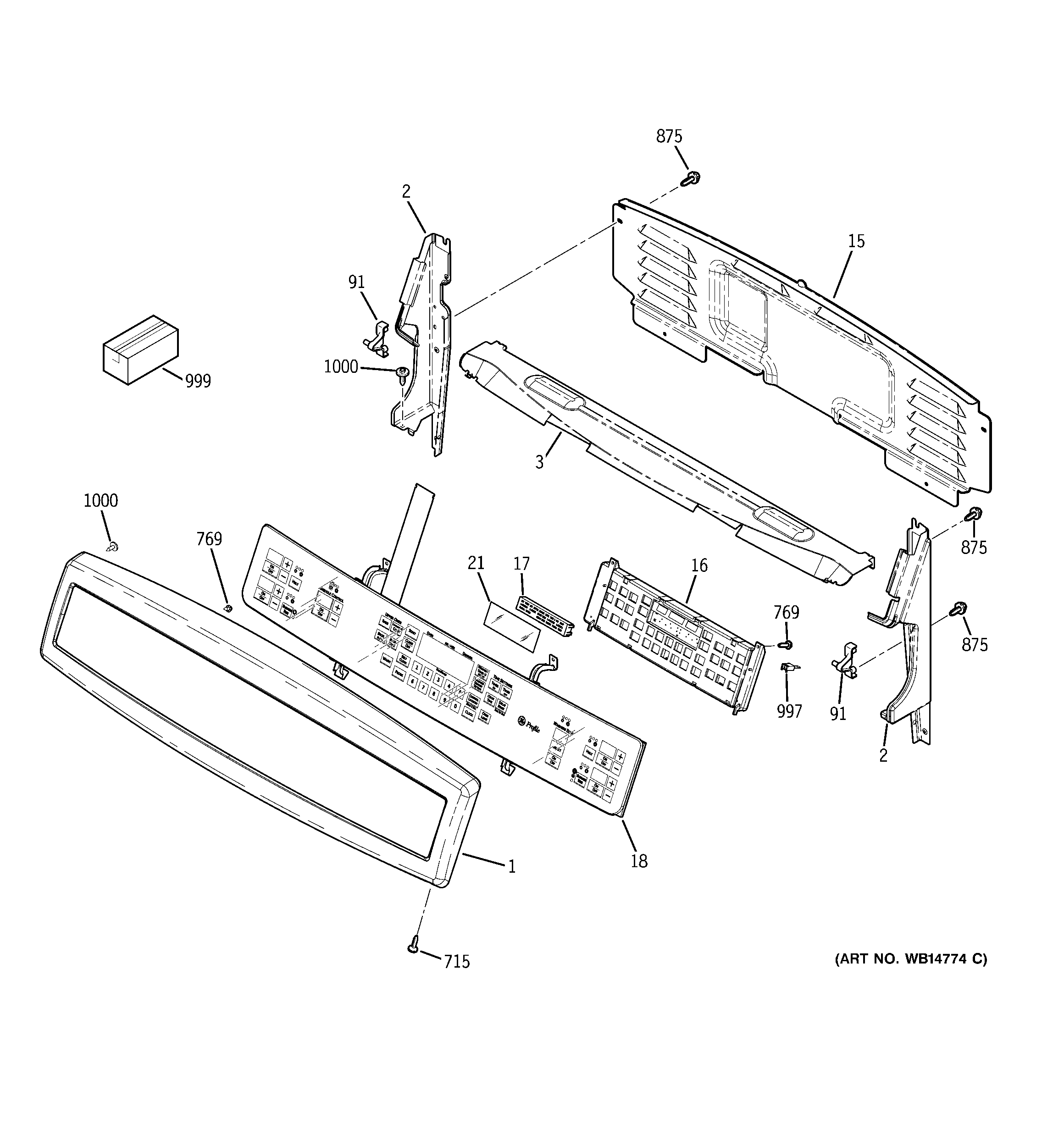

PCB920SR2SS CONTROL PANEL

Products

PositionProduct
1GEN WB07T10683
2WB07X27823 GE End Plate LT (Black)
2WB36T11204 GE Oven Right End Plate
3WB02X28994 GE Heat Shield
15GEN WB02T10499
16GEN WB27T11316
17WB27T11121 GE Oven Overlay and Guide Assembly
18WB27T11122 GE Oven Glass Assembly
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
769WZ4X44D GE Screw Package
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
997WB18T10437 GE Oven Ribbon Cable Board
997GEN WD21X10233
999GEN 29-5667
999GEN 31-10679
999GEN 31-14844
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
