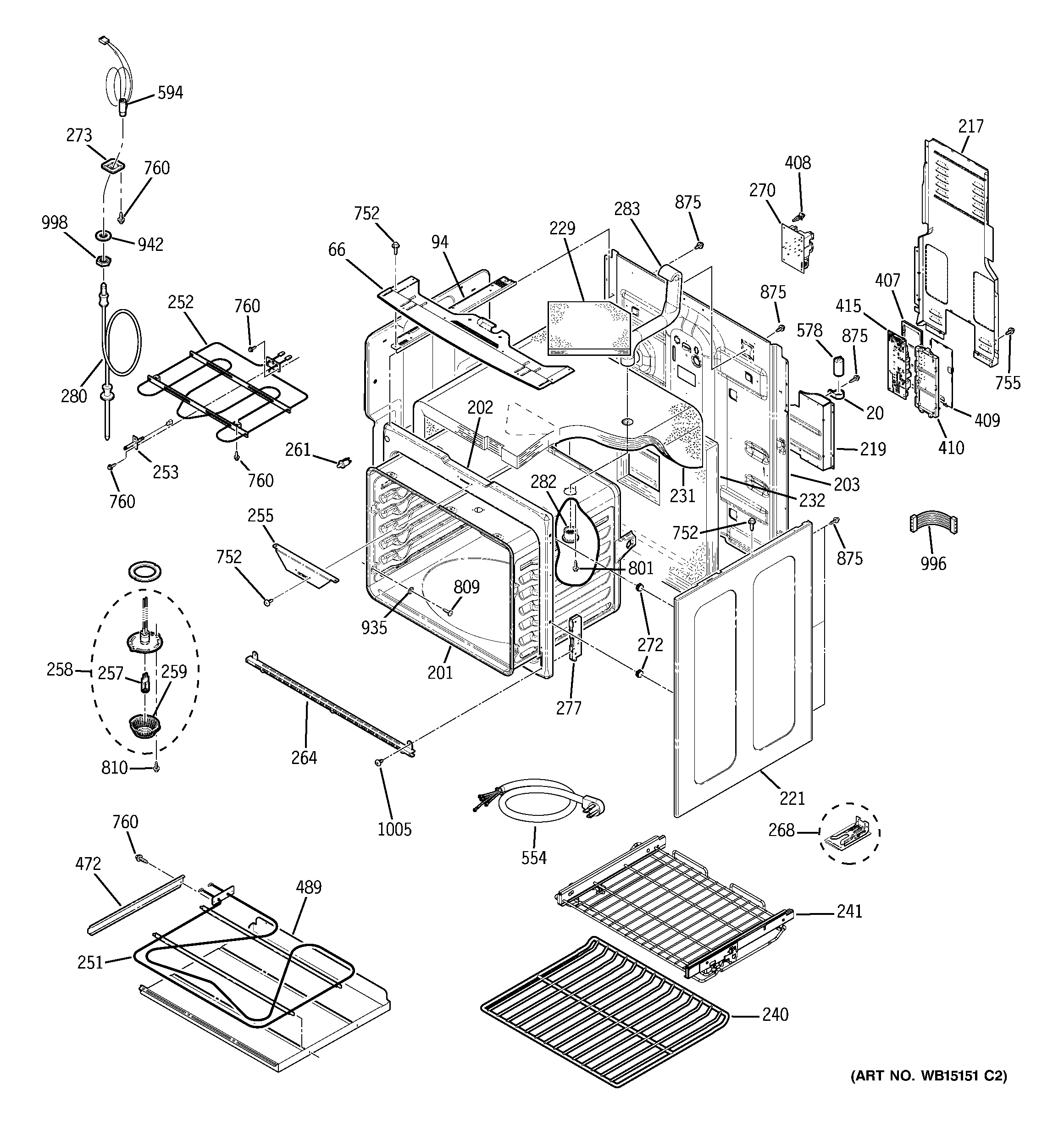

PCB920ST2SS BODY PARTS

PCB920ST2SS BODY PARTS

Written by

in

PCB920ST2SS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66ENCLOSURE RANGETOP
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201BODY OVEN WELD ASM
202FRAME FRONT 5.0
203GEN WB63T10147
203BACK MAIN (P014)
217GEN WB02T10573
219GEN WB02T10572
221WB56X28881 GE Oven Side Panel Black
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10211 GE Oven Insulation
232GEN WB35T10023
240WB48T10083 GE Oven Rack
241GEN WB48T10077
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
255GEN WB07T10517
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
264WB07T10516 GE Oven Front Trim Assembly
268GEN WB02T10580
270GEN WB34T10107
270WB27T11358 GE Oven Relay Daughter Board
270GEN WB34T10108
272WB02T10034 GE Oven Body Side Support
273PROBE COVER
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
407WB02T10512 GE Range Relay Board Frame
408WB02T10477 GE Standoff PCB
410WB27T11357 GE Oven Assembly Frame Board
415WB27T11356 GE Oven Printed Circuit Board Assembly
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
554WB08T10029 GE Range Cord 4' 3-Prong
578WB27T10662 GE Oven Capacitor
594WB18T10394 GE Oven Wire Probe Harness
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WD02X10208 GE Screw 10-32 TTT Hex 7/16
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
942WB1X5573 GE Oven Washer
996GEN WB18T10498
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
