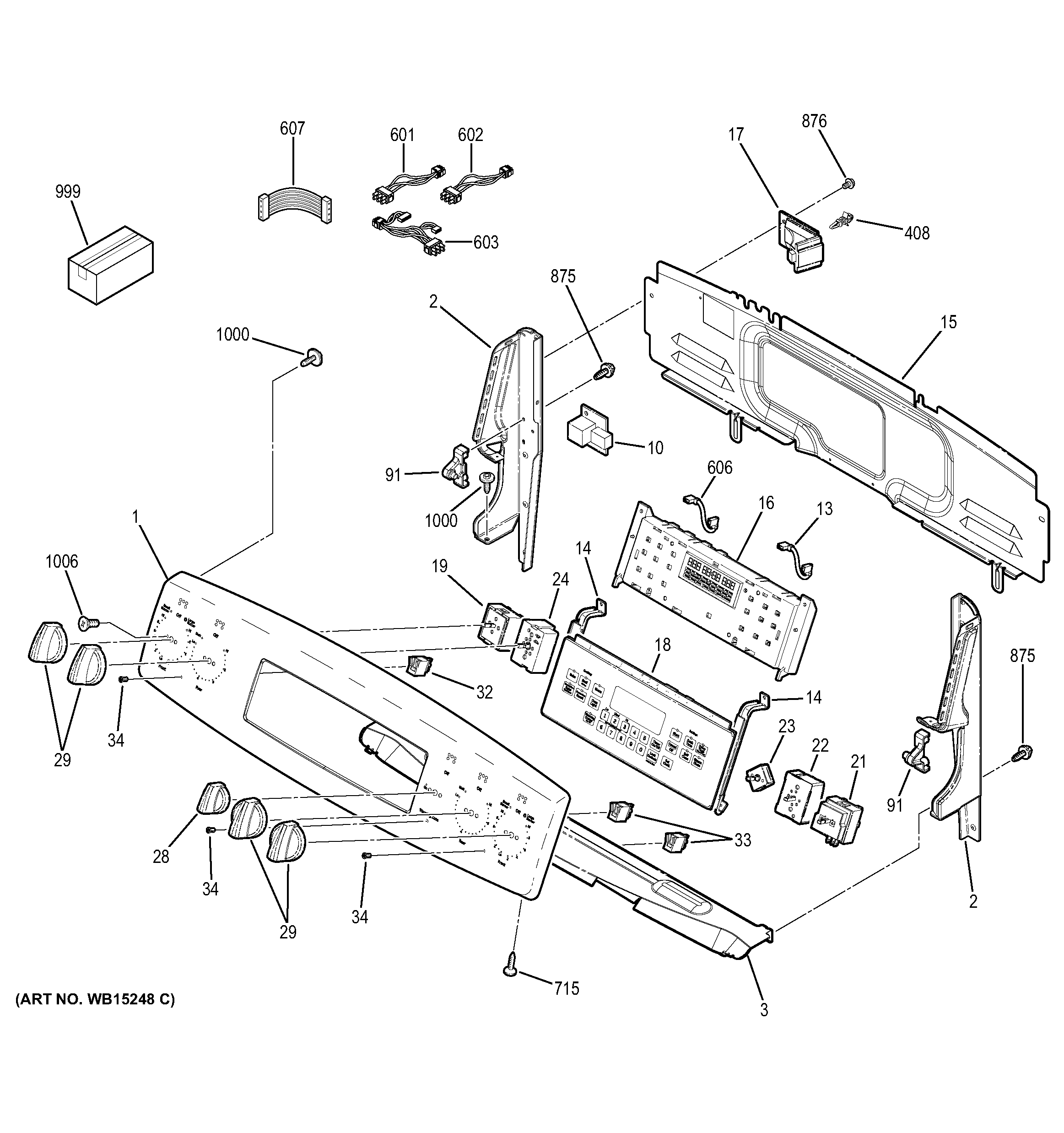

PCB950SF2SS CONTROL PANEL

Products

Position	Product
1	LABEL WIRE DIAGRAM
1	GEN WB36X20044
2	WB07X27823 GE End Plate LT (Black)
2	WB07X27820 GE Right Endplate (Black)
3	WB02X28994 GE Heat Shield
10	WB27X20933 GE Oven RJ45 Housing Assembly
13	WB18X30704 GE Jumper
14	BRACKET GLS ASM(T012-DG
15	WB34X20932 GE Control Cover
16	WB27X25360 GE Oven Control Board T012
18	WB27T11116 GE Clock Display Filter
19	WB24T10153 GE Oven Infinite Switch Control
21	WB24T10162 GE Oven Infinite Control Switch
22	WB24T10029 GE Oven Infinite Burner Switch
23	GEN WB24X21736
24	WB24T10146 GE Oven Surface Element Control
28	KNOB ASM
29	WB03T10337 GE Oven Knob Assembly
32	WB25X20005 GE Oven Light Indicator Pilot
33	WB25K10010 GE Oven Light Indicator Pilot
34	LENS
91	WB10T10116 GE Range Top Hinge Pin
408	WB02T10477 GE Standoff PCB
601	GEN WB18X20041
602	GEN WB18X20123
603	HARNESS WIRE UI COM
606	GEN WB18X20865
607	GEN WB18X20006
715	WD2X430 GE Dishwasher Screw
875	WH2X930 GE Screw
999	GEN 31-17055
999	GEN 31-10818
999	GEN 31-10817
999	GEN 49-80639
1000	WB1X500D GE Oven Screw Package
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
