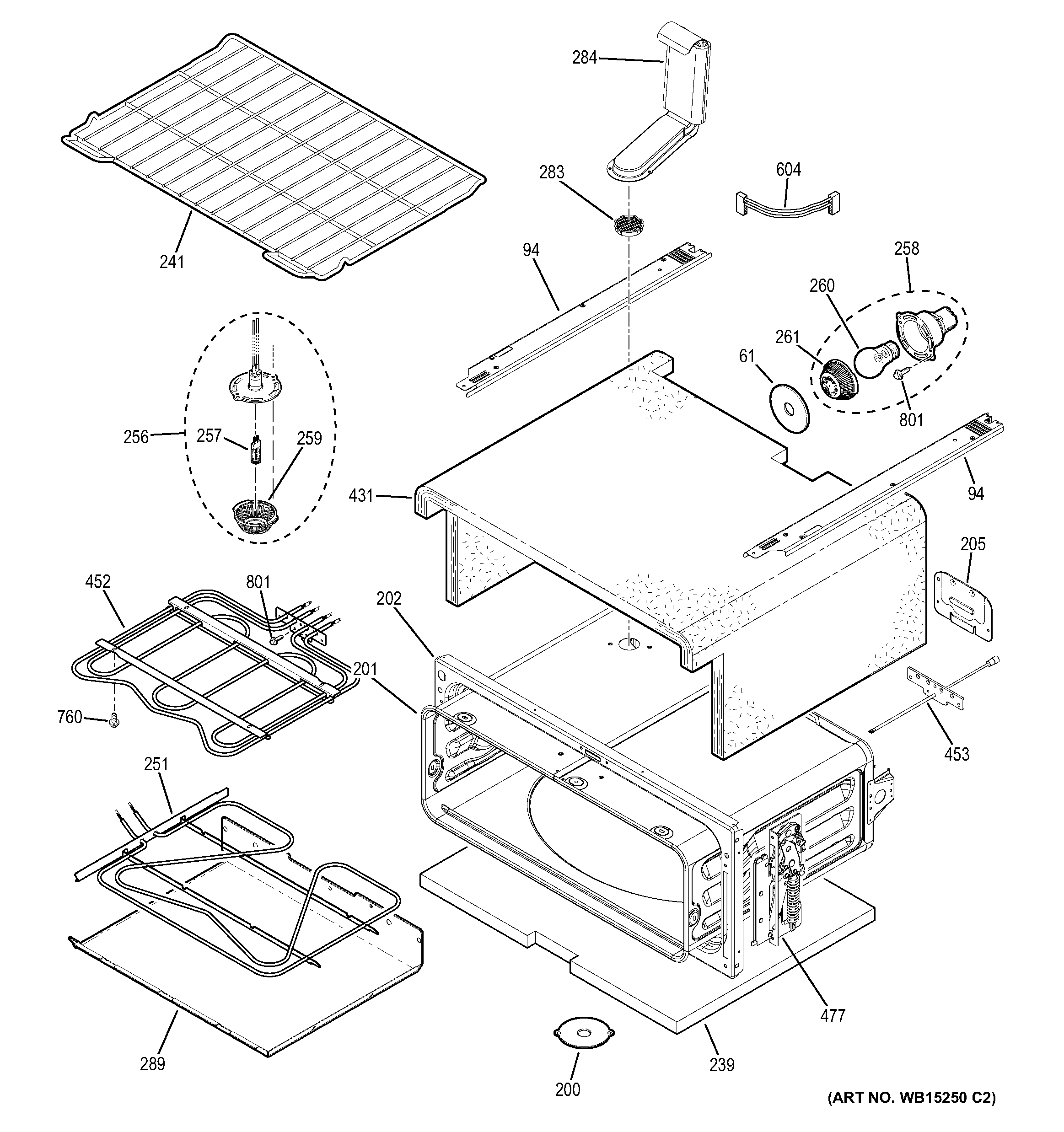

PCB950SF2SS UPPER OVEN

PCB950SF2SS UPPER OVEN

Written by

in

PCB950SF2SS UPPER OVEN

Products

PositionProduct
61GEN WB04T10021
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
200WB34X20009 GE Cover Hole Assembly (Black)
201WRAPPER OVN CAV ASM
202WB63X20010 GE Front Upper Frame (Black)
205WB34X20970 GE Plate Cover Assembly (Black)
239WB35T10235 GE Middle Insulation
241WB48T10059 GE Oven Rack
251WB44T10082 GE Oven Bake Element
256WB25T10093 GE Oven Halogen Lamp Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259OV LAMP LENS LWR
260RANGE ONLY 40W 120V APPL BULB
261WB25T10002 GE Oven Bulb Lens
283WB38T10033 GE Oven Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
289PAN REFLECTOR
431WB35X25049 GE Upper Insulation Wrapper
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10105 GE Oven Hinge Assembly
477WB10T10104 GE Oven Hinge Assembly
604WB18T10463 GE Oven Harness Wire HB
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
