PCB969DP3WW WARMING DRAWER

PCB969DP3WW WARMING DRAWER

Written by

in

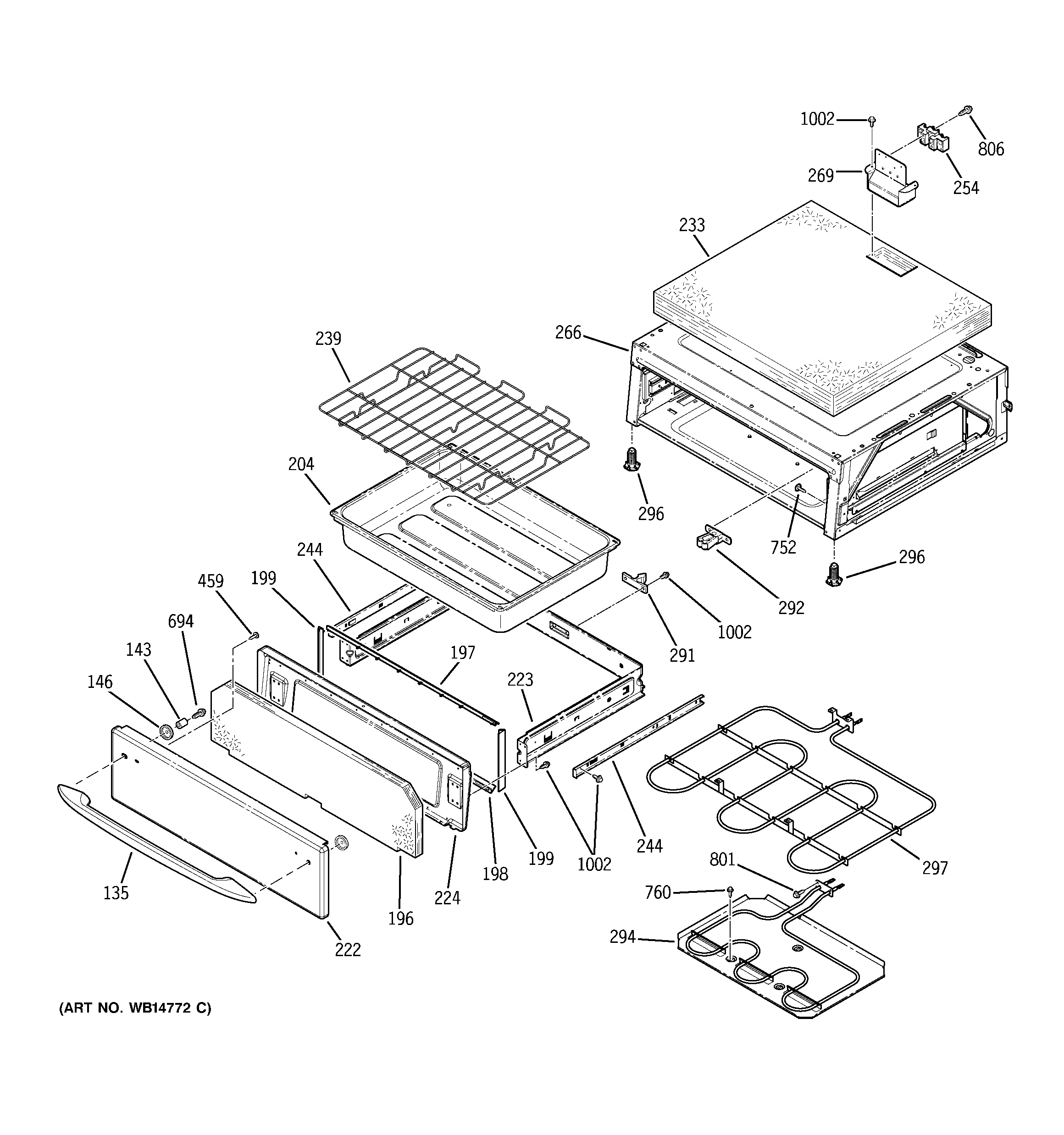

PCB969DP3WW WARMING DRAWER

Products

PositionProduct
135WB15T10136 GE Oven Drawer Handle
135GEN WB15T10138
143SPACER DR HANDLE
146WB1K5117 GE Oven Washer
196GEN WB35T10216
197WB04T10056 GE Oven Drawer Gasket
198GEN WB04T10058
199GEN WB04T10057
204GEN WB49T10011
222GEN WB56T10292
222GEN WB56T10291
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10194
233GEN WB35T10022
239GEN WB48T10039
244SLIDE
254WB17T10011 GE Oven Terminal Block
266GEN WB58T10015
269WB17T10020 GE Oven Terminal Block Mount
291WB02K10111 GE Oven Strike
292GEN WB02T10281
294GEN WB30T10143
296WB02X10521 GE Oven Leveling Leg
297GEN WB30T10104
459WB1X537 GE Oven Screw
694WB1K5157 GE Oven Black Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X1186 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
