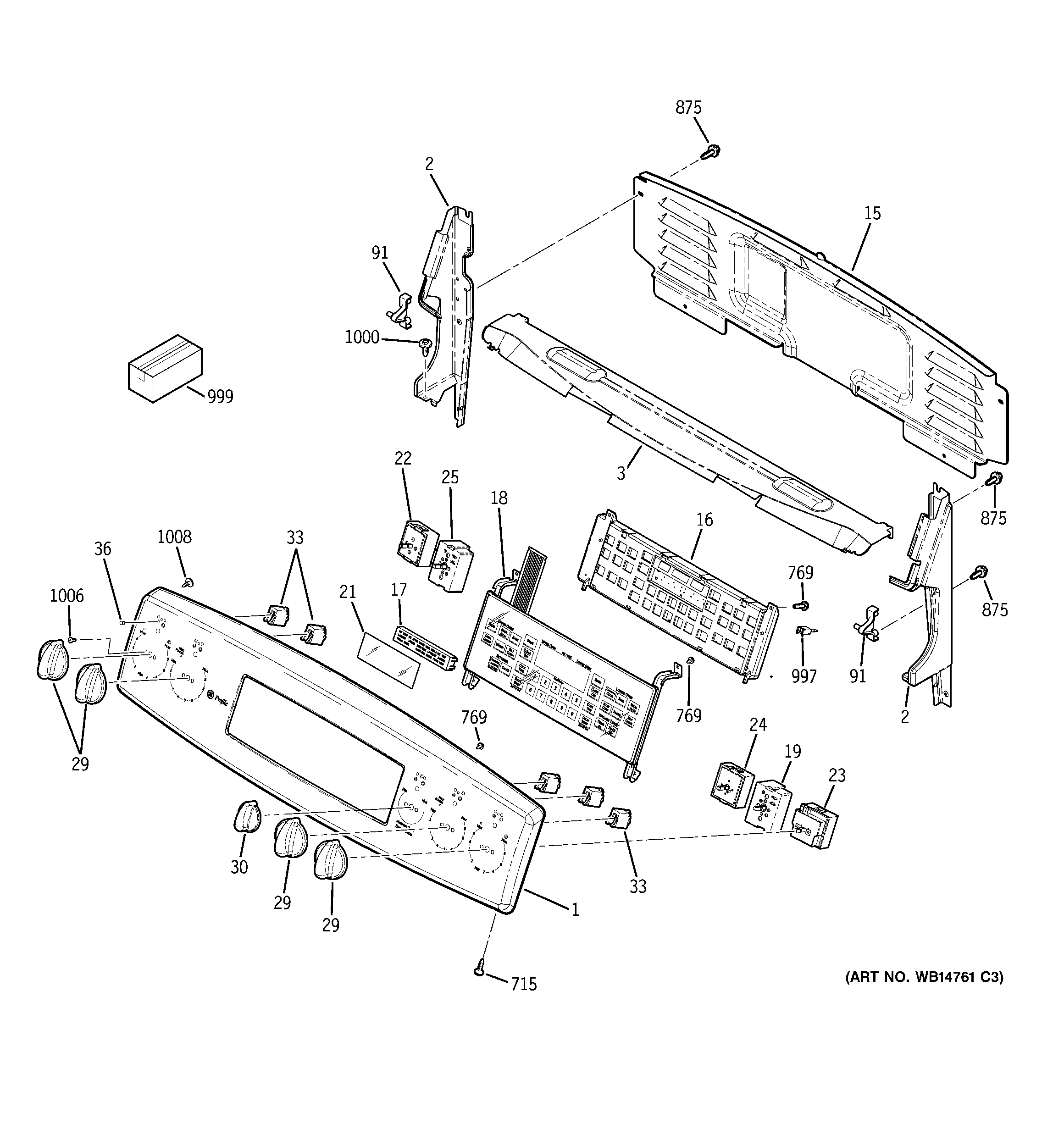

PCB975DP2BB CONTROL PANEL

PCB975DP2BB CONTROL PANEL

Written by

in

PCB975DP2BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10674
1GEN WB07T10675
2WB36T11206 GE Oven End Plate Right
2WB36T11207 GE Oven End Plate LT
2WB36T11204 GE Oven Right End Plate
2WB07X27823 GE End Plate LT (Black)
3WB02X28994 GE Heat Shield
15GEN WB02T10499
16GEN WB27T11315
17WB27T11115 GE Oven Guide and Overlay Assembly
18WB27T11146 GE Oven Touch Control Panel
18GEN WB27T11147
19WB24T10145 GE Oven Burner Switch
21WB27T11116 GE Clock Display Filter
22WB24T10153 GE Oven Infinite Switch Control
23WB24T10162 GE Oven Infinite Control Switch
24INFINITE CONTROL SWITCH
25WB24T10146 GE Oven Surface Element Control
29KNOB PROFILE SU
29KNOB PROFILE SU
30KNOB GE S/U (BLK)
30KNOB GE S/U (WHT)
33GEN WB25T10088
33GEN WB25T10090
36LENS
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
715WD2X433 GE Dishwasher Trim Screw
769WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
997GEN WD21X10232
999GEN 29-5667
999GEN 31-10679
999GEN 31-14839
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1008WB1X5904 GE Oven Screw 8-18 BA
