PCB975ST1SS LOWER OVEN

PCB975ST1SS LOWER OVEN

Written by

in

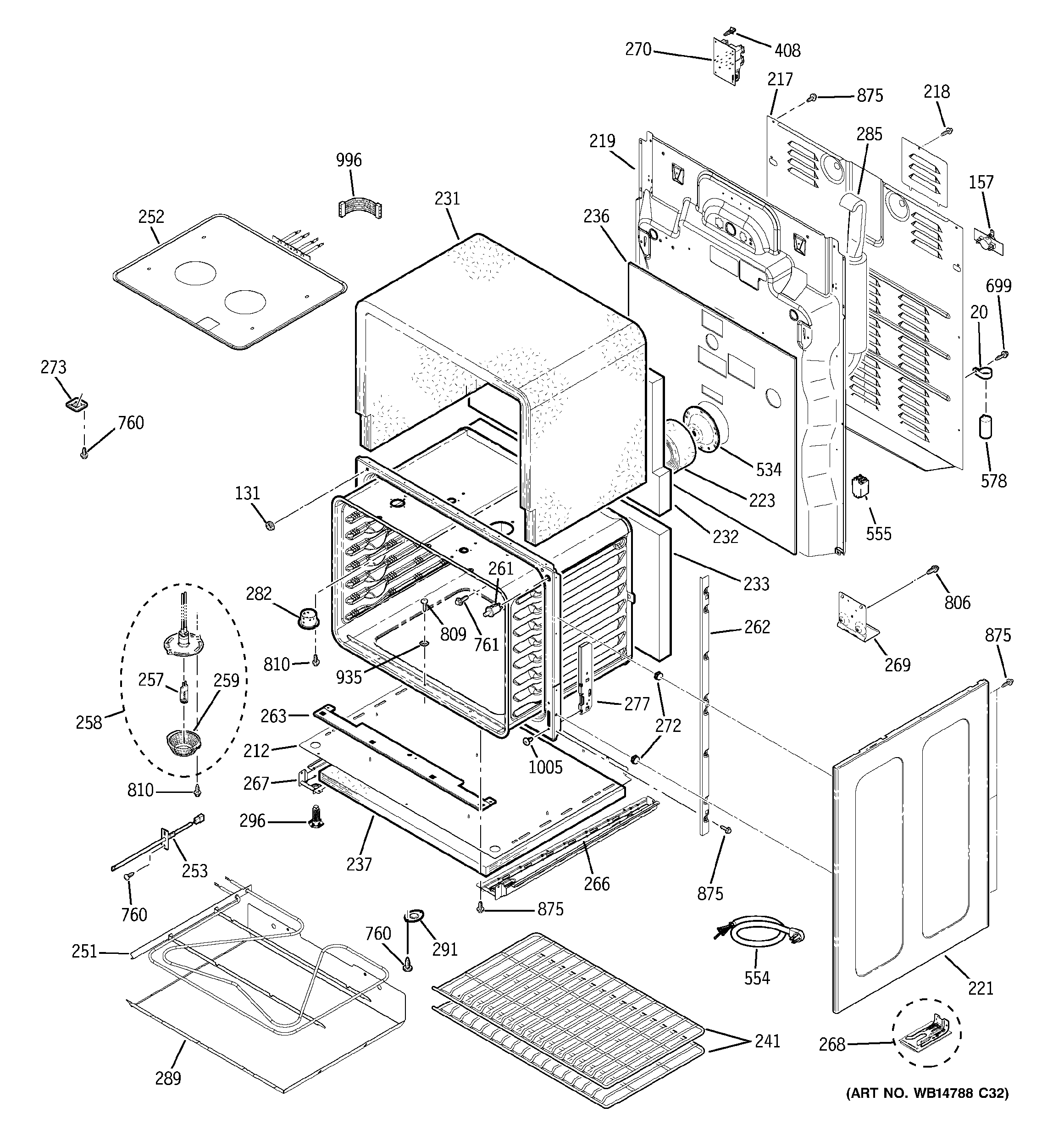

PCB975ST1SS LOWER OVEN

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
131WB01T10022 GE Oven Door Bumper
157WB24T10105 GE Oven Runaway TCO
212GEN WB39T10015
217WB02T10575 GE Main Wire Cover
218WB02T10564 GE Oven Terminal Block Cover
219WB02T10507 GE Main Back Panel
221WB56X28881 GE Oven Side Panel Black
223WB35T10223 GE Oven Back Insulation
231WB35T10170 GE Oven Insulation Wrapper
233WB35X25122 GE Back Insulation
233WB35X25048 GE Back Insulation
236GEN WB35T10180
237GEN WB35T10228
241RACK OVEN
251WB44T10082 GE Oven Bake Element
252GEN WB44T10095
253WB21X22134 GE Oven Sensor Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263COVER FRONT
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268GEN WB02T10580
269GEN WB02T10492
270WB27X25594 GE Oven Relay Board
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10034
289WB49T10071 GE Oven Reflector Pan
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
555WB18T10352 GE Oven Relay
578WB27T10662 GE Oven Capacitor
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
761WZ4X44D GE Screw Package
806WH2X1186 GE Screw
809WB1X1261 GE Oven Screw
810GEN WH02X0941
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
996WB18T10463 GE Oven Harness Wire HB
996HARNSS WIRE HIDDN BKE(L)
996WB18T10569 GE Main Wire Harness
1005WB01T10008 GE Oven Screw 10-32
