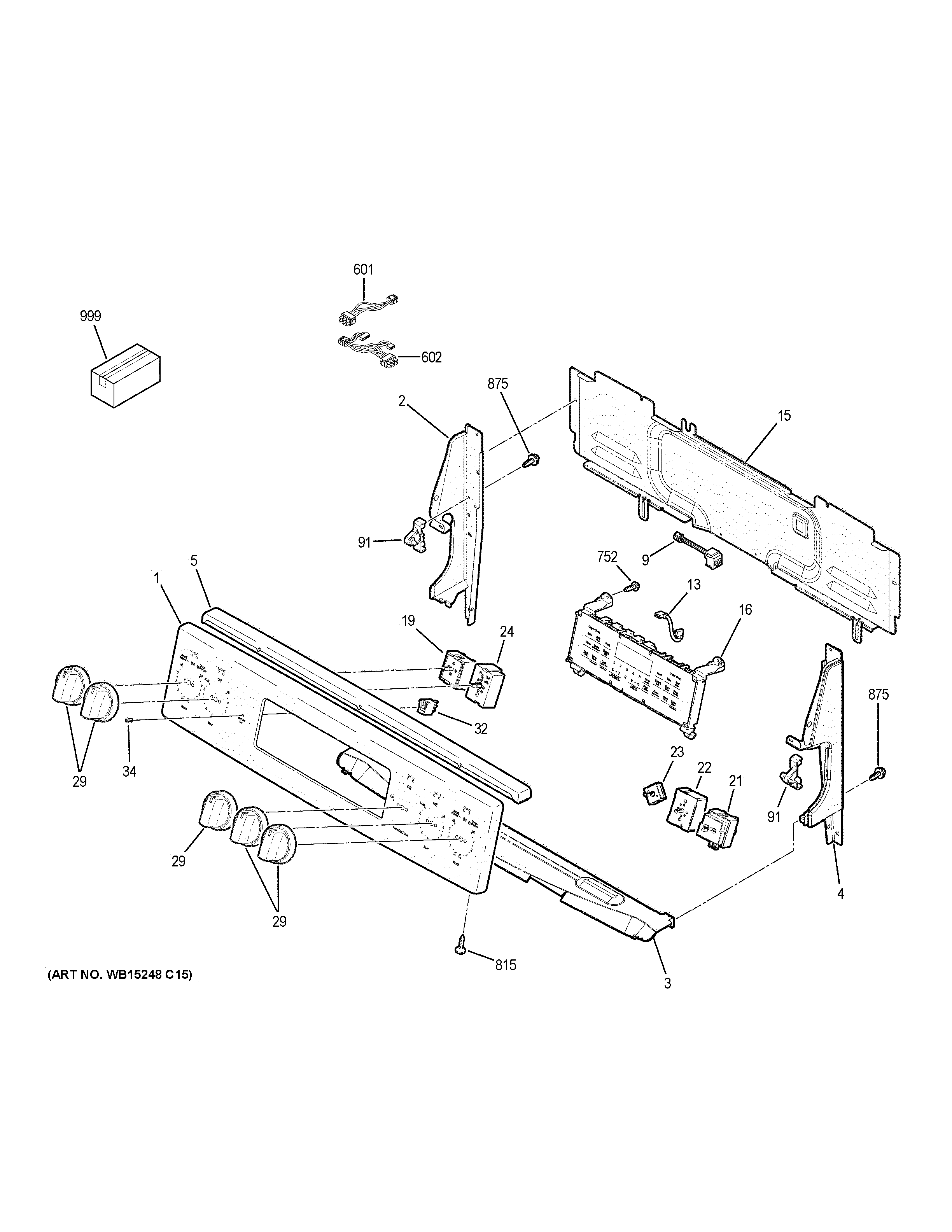

PCB980SJ8SS CONTROL PANELadmin2025-04-26T12:21:29+00:00PCB980SJ8SS CONTROL PANEL ProductsPositionProduct1TRIM CONTROL ASM1LABEL WIRE DIAGRAM2WB07X29534 GE Oven Left Hand End Plate3WB34X28565 GE Oven Heat Backguard Shield4WB07X29535 GE Oven Right Hand End Plate5WB07X28582 GE Oven Top Trim Assembly9WB27X30706 GE RJ45 Connector Harness13WB18X30704 GE Jumper15WB34X25565 GE Oven Control Cover16OVEN CONTROL AND OVERLAY ASM19WB24X25013 GE Oven Control Infinite Switch21WB24X25152 GE Oven Infinite Switch Control22WB24T10029 GE Oven Infinite Burner Switch23WB24X25302 GE Oven Rotary Switch24WB24T10146 GE Oven Surface Element Control29WB03X34871 GE Oven Stainless Infinite Knob32WB25X20005 GE Oven Light Indicator Pilot34WB25X24023 GE Oven Indicator Light Lens91WB10T10116 GE Range Top Hinge Pin601WB18X32738 GE Oven Infinite Switch Harness602WB18X32734 GE UI Connection Harness Wire752WB1K5200 GE Oven Screw 340531815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel875WH2X930 GE Screw999WB02T10303 GE Cleaner Lubricant999PM INSTRUCTIONS INSTALL999PM INSTRUCTION INSTALL999PM MANUAL MINI & WD ASM999PM OWNERS MANUAL
