PCE23NGTMFWW FREEZER DOOR

PCE23NGTMFWW FREEZER DOOR

Written by

in

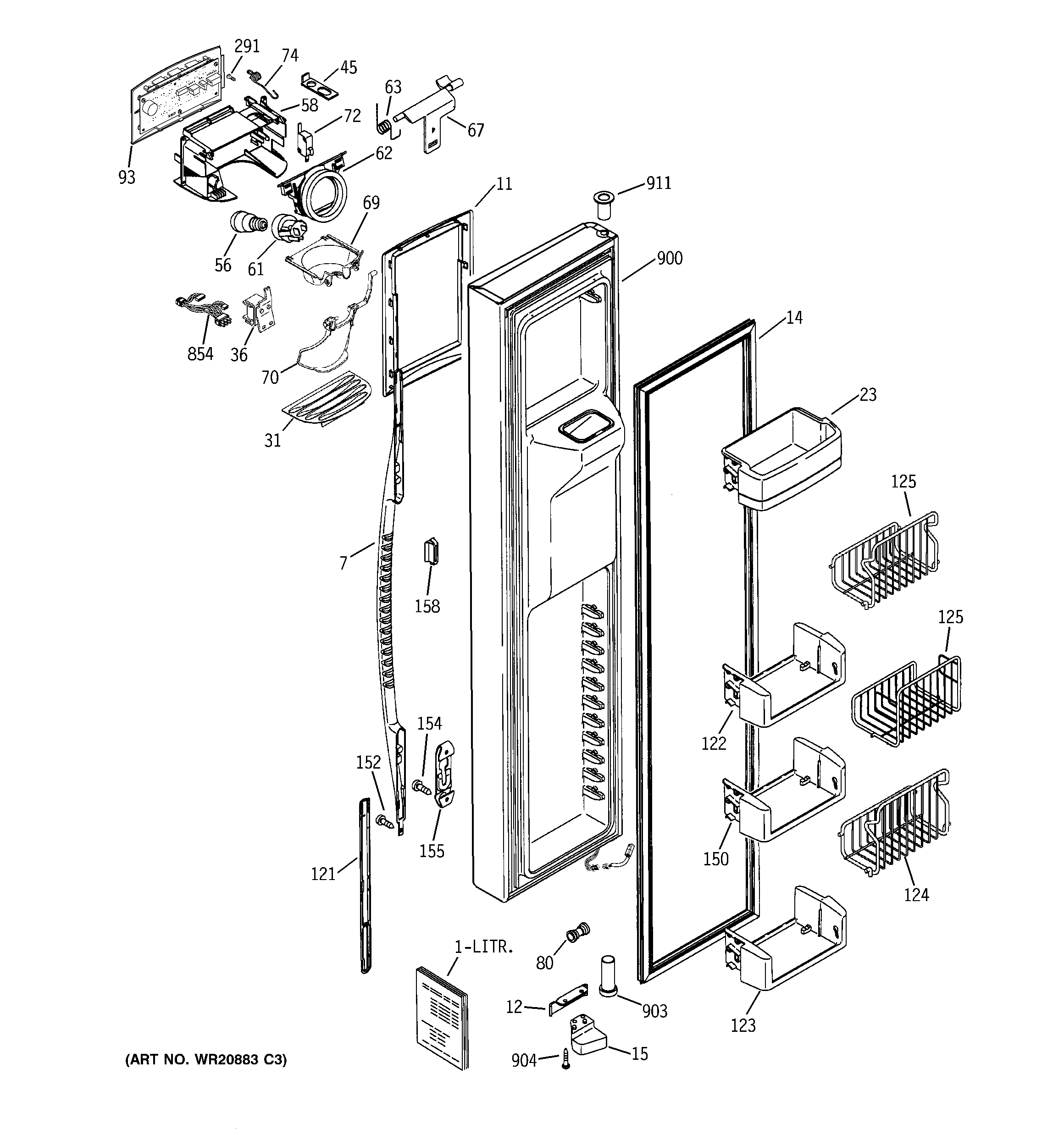

PCE23NGTMFWW FREEZER DOOR

Products

PositionProduct
1GEN 31-46222
1GEN 49-60565-2
7GEN WR12X10430
7GEN WR12X10406
11WR38X10237 GE Refrigerator Black Recess Trim
11GEN WR38X10227
12WR02X13425 GE Refrigerator Door Stop
12WR02X13424 GE Refrigerator Door Stop
14WR24X20455 GE Refrigerator Freezer Door Gasket
14WR24X10156 GE Refrigerator Door Gasket White
15WR02X10638 GE Refrigerator Cam Closure
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10355
31WR17X11654 GE Refrigerator White Recess Grille
31WR17X11655 GE Refrigerator Grille Recess Black
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X12785 GE Refrigerator Housing Shield Dispenser
58WR17X12784 GE Refrigerator Housing Shield Dispenser
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X21781 GE Refrigerator Dispenser Ice Funnel
70WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
70WR17X12121 GE Refrigerator Paddle Ice Dispenser White
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10609
93GEN WR55X10618
121GEN WR12X10405
121GEN WR12X10429
123GEN WR71X10358
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
150WR71X10256 GE Refrigerator Module Support
152GEN WR01X10762
154GEN WR01X10624
155WR02X10643 GE Refrigerator Handle Lock Bracket
158GEN WR02X10646
291WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854GEN WR23X10657
900GEN WR78X11851
900GEN WR78X11852
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
