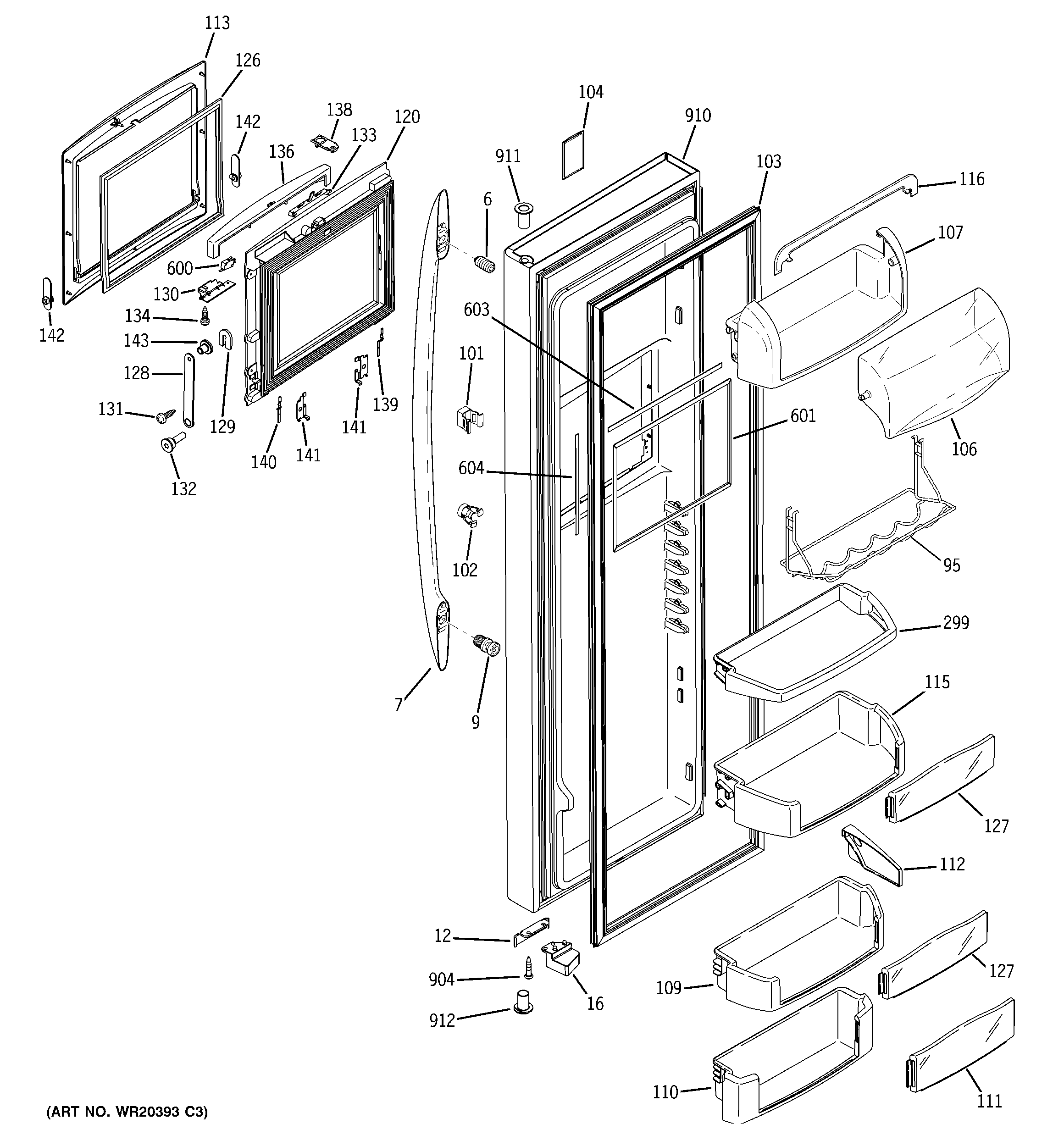

PCE23NHTMFSS FRESH FOOD DOOR

PCE23NHTMFSS FRESH FOOD DOOR

Written by

in

PCE23NHTMFSS FRESH FOOD DOOR

Products

PositionProduct
6WR01X10450 GE Refrigerator Screw Set
7GEN WR12X11006
9WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
12WR02X13425 GE Refrigerator Door Stop
16WR02X10779 GE Refrigerator Door Closure Cam
95WR17X12289 GE Refrigerator Wine & BEVERAGE Rack
101WR02X10040 GE Refrigerator Rectangular Fastener
102WR02X12272 GE Tubular Fastener
103WR24X20456 GASKET
104WR04X10129 GE Refrigerator Lens Nameplate
106WR22X10042 GE Refrigerator Clear Dairy Door
107WR22X10041 GE Refrigerator Dairy Compartment
109WR71X10979 GE Refrigerator Module Shelf Fresh Food
110WR71X10297 GE Refrigerator Shelf Module
111WR71X10788 GE Refrigerator Fixed Insert Module
112WR02X10582 GE Refrigerator Modu Snug R
113GEN WR38X10434
115WR71X10973 GE Refrigerator Door Shelf Bin
116WR22X10043 GE Refrigerator Trim Dairy Compartment
120GEN WR17X12534
126GEN WR24X10086
127WR71X10764 GE Door Shelf Insert Module
128WR13X10005 GE Refrigerator Hinge Arm
129WR02X10035 GE Hinge Cap Arm
130WR02X10032 GE Refrigerator Bracket Side CMK
131SCR 10-24 TX 11/16
132WR02X10037 GE Refrigerator Stop Hinge Arm
133WR02X10033 GE Refrigerator Door Trigr CMK
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
136GEN WR12X10438
138GEN WR02X10034
139GEN WR02X10038
140GEN WR02X10039
141GEN WR01X10018
141GEN WR01X10017
142GEN WR02X10045
143WR02X10041 GE Arm Hinge Stud
299WR71X10376 GE Bottle Retainer
600WR23X10027 GE Refrigerator Micro Switch
601WR02X11459 GE Inner Door Trim Assembly
603WR02X11483 GE Foam Tape
904WR01X10611 GE Screw
910GEN WR78X11682
911WR01X10956 GE Door Thimble
912WR01X10232 GE Refrigerator Door Thimble
