PCE23VGXAFBB FREEZER DOOR

PCE23VGXAFBB FREEZER DOOR

Written by

in

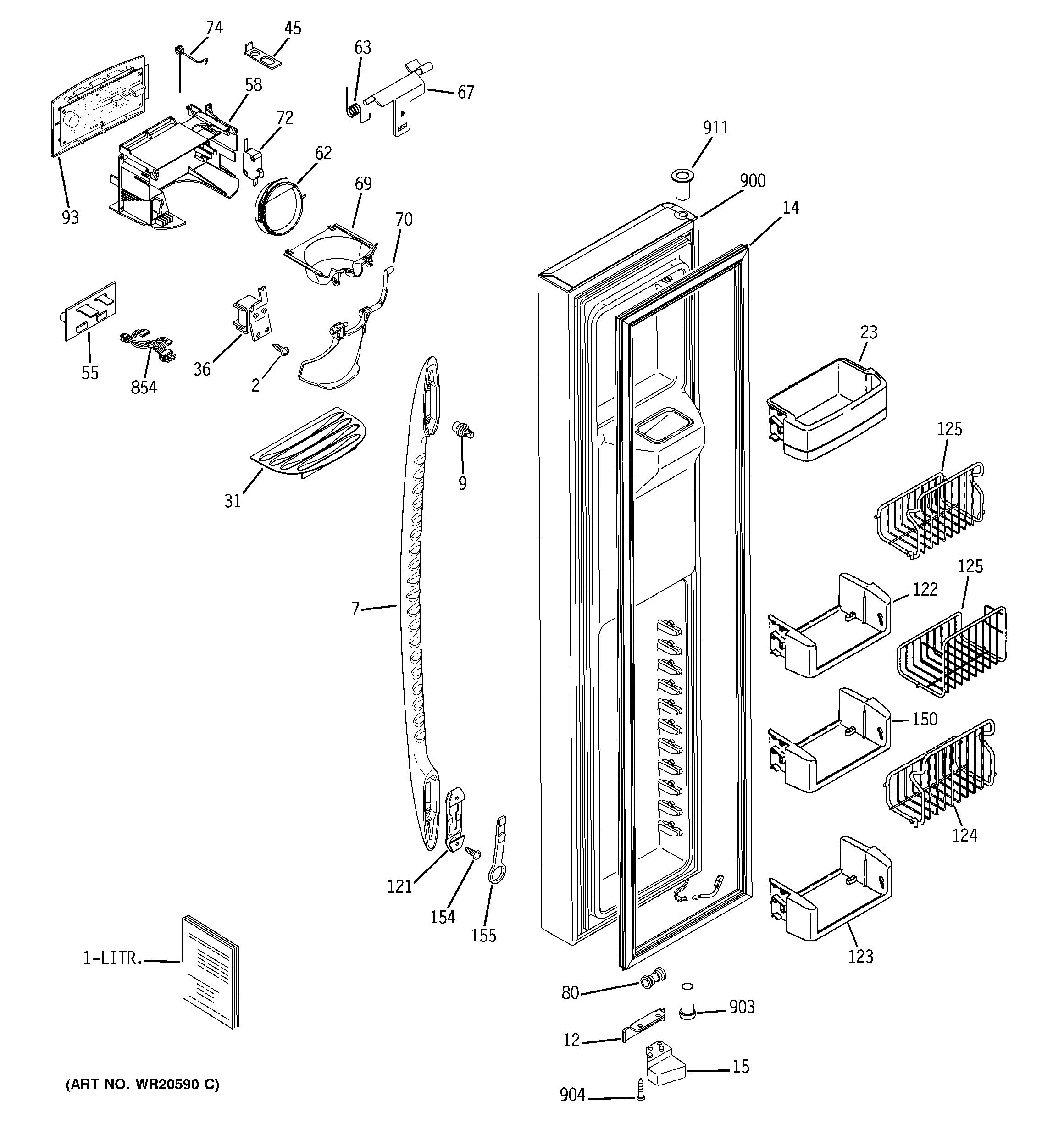

PCE23VGXAFBB FREEZER DOOR

Products

PositionProduct
1GEN 31-46245
1GEN 49-60565-1
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7WR12X10731 GE Refrigerator Handle Assembly SXS White
7GEN WR12X10825
9WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
12WR02X13424 GE Refrigerator Door Stop
12WR02X13425 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10638 GE Refrigerator Cam Closure
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10355
31WR17X12873 GE Refrigerator Grille Recess
31WR17X12884 GE Refrigerator Grille Recess
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58GEN WR17X12487
58WR17X12489 GE Refrigerator Dispenser Housing Shield
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
70WR17X12121 GE Refrigerator Paddle Ice Dispenser White
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10950
121WR02X12022 GE Refrigerator Locking Handle
123GEN WR71X10358
124WR21X10111 GE Refrigerator Basket Wire TILTOUT
125WR21X10110 GE Refrigerator Basket Wire TILTOUT
150WR71X10256 GE Refrigerator Module Support
154WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
854WR23X10665 GE Dispenser Recess Harness
900GEN WR78X12429
900GEN WR78X12447
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
903WR01X10208 GE Refrigerator Door Thimble
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
911WR01X10955 GE Refrigerator Door Thimble
