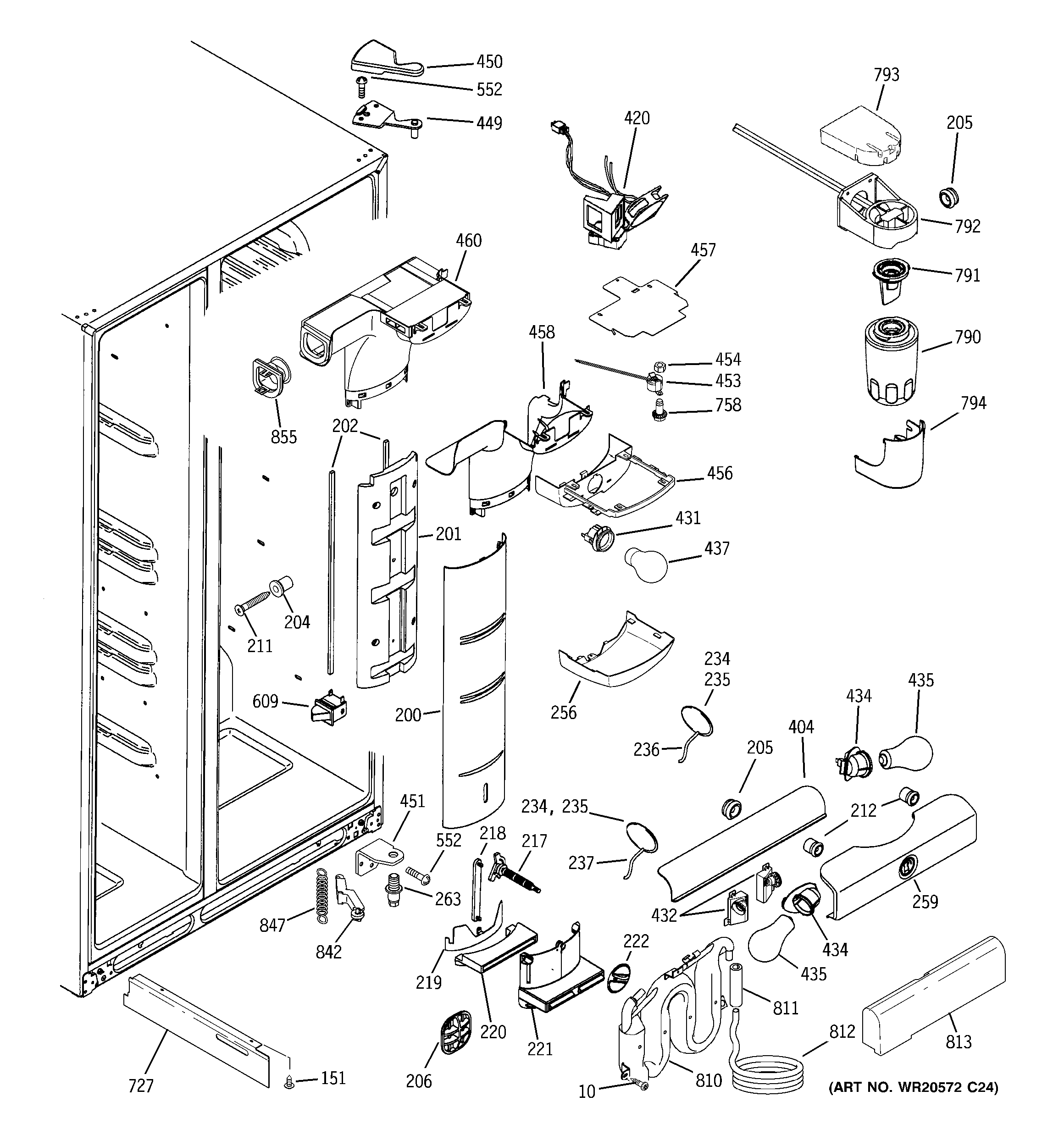

PCE23VGXAFBB FRESH FOOD SECTION

PCE23VGXAFBB FRESH FOOD SECTION

Written by

in

PCE23VGXAFBB FRESH FOOD SECTION

Products

PositionProduct
10WR01X10065 GE Screw
151WR01X10588 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
200WR17X10802 GE Refrigerator Tower Cover
201WR17X10803 GE Refrigerator EPS Tower E01
202WR14X10062 GE Ff Tow E01 Gasket
204WR02X12187 GE Refrigerator Support Shelf
205WR02X10678 GE Refrigerator Grommet
206WR02X10671 GE Refrigerator Air Return Grille
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10154 GE Refrigerator Dial Chill Pan
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220WR02X11261 GE Chill Duct Pan
221WR02X10641 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
259GEN WR17X10801
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
404WR17X11609 GE Refrigerator Air Flow Diverter
431GEN WR02X11462
432WR02X12285 GE Refrigerator Reflector Assembly Middle
432WR02X12284 GE Refrigerator Reflector Assembly Middle
434GEN WR02X11007
437WR02X12207 GE Refrigerator Net Bulb Light
449WR13X10215 GE Refrigerator Top Hinge & Pin
450WR02X10658 GE Refrigerator White Cover Hinge
450WR02X10832 GE Refrigerator Black Cover Hinge
451WR13X10167 GE Refrigerator Bottom Hinge Black
451WR13X10126 GE Refrigerator Hinge Bottom Adjuster White
453WR49X10191 GE Refrigerator Top Light Harness Kit
454WR01X10212 GE Refrigerator 8-32 Nut
456WR49X28627 GE Refrigerator Fresh Food Light Shield & H
457WR17X12201 GE Light Reflector
458WR49X10091 GE Refrigerator Fresh Food Damper Inlet Cover Kit
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
609REFRIGERATOR DOOR LIGHT SWITCH
727WR17X12382 GE Air Separator Hinge Side
758WD2X323D GE Dishwasher Screw Package
790MSWF GE Refrigerator Fast Fill Water Filter
791WR17X22064 GE Refrigerator MSWF Bypass
792MSWF MANIFOLD
793WR17X12205 GE Refrigerator Manifold Insulation
794WR17X12207 GE Refrigerator Water Filter Cover
810WR17X11440 GE Refrigerator Water Tank Assembly
811WR02X11288 GE Refrigerator Insulation Tube Foam
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
813WR17X11620 GE Refrigerator Insulation Tank Foam
842LEVER ASM FF
842WR11X10007 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
855WR02X13091 GE Refrigerator Duct Assembly Transition
