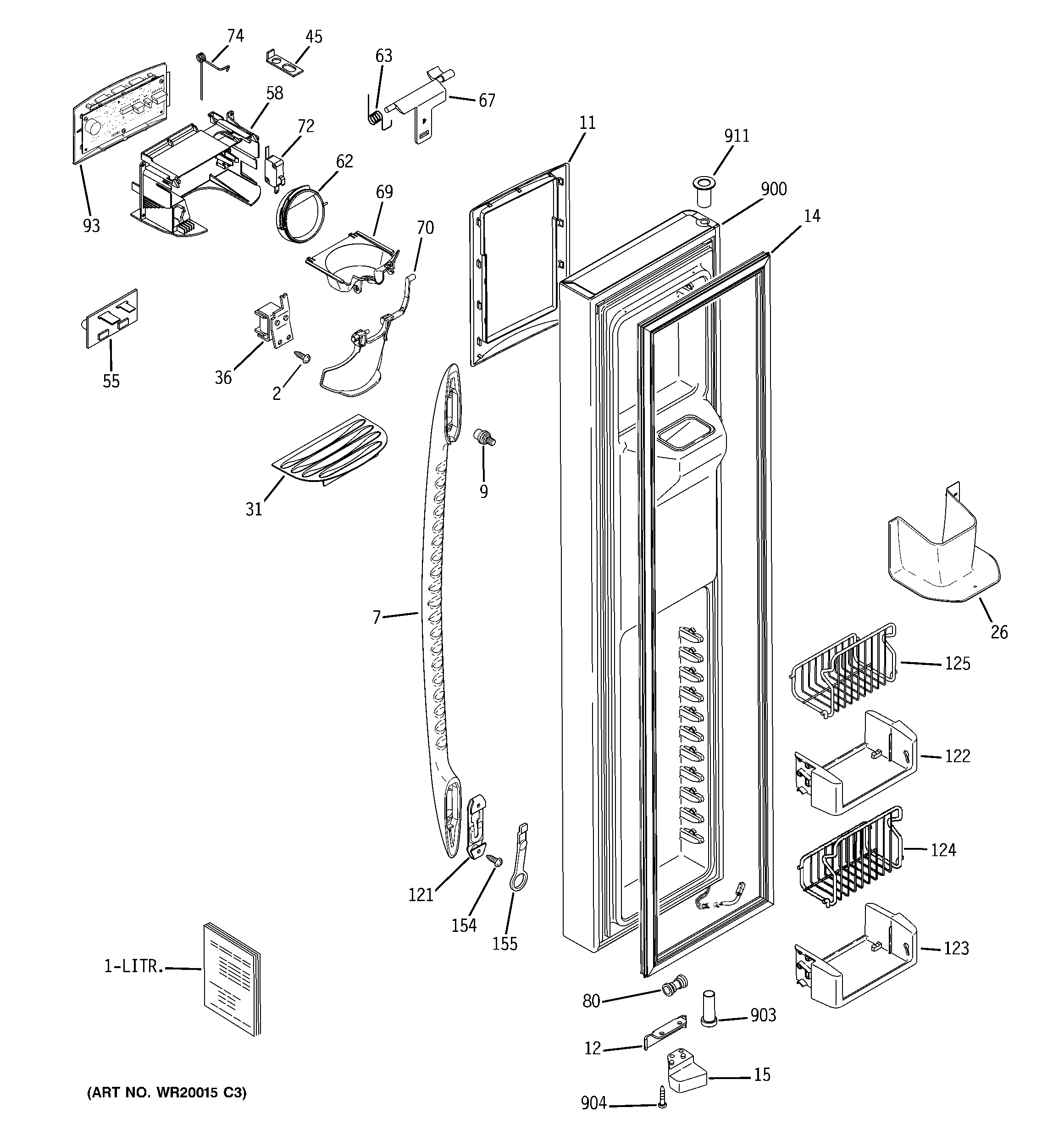

PCF23NGTDBB FREEZER DOOR

Products

Position	Product
1	SCR 8-18 AB PHR 1/2 S
1	GEN 31-51627
1	GEN 49-60414
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	GEN WR12X10825
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
11	GEN WR38X10385
12	WR02X10782 GE Refrigerator Stop Door
14	WR24X20455 GE Refrigerator Freezer Door Gasket
15	WR02X10780 GE Refrigerator Cam Closure
26	WR71X10705 GE Refrigerator Ice Guide
31	GEN WR17X12124
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X34266 GE Refrigerator Housing Shield Dispenser Black
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X12125 GE Refrigerator Black Paddle Ice Dispenser
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10584
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10256 GE Refrigerator Module Support
123	GEN WR71X10255
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
154	GEN WR01X10624
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
900	GEN WR78X11668
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
