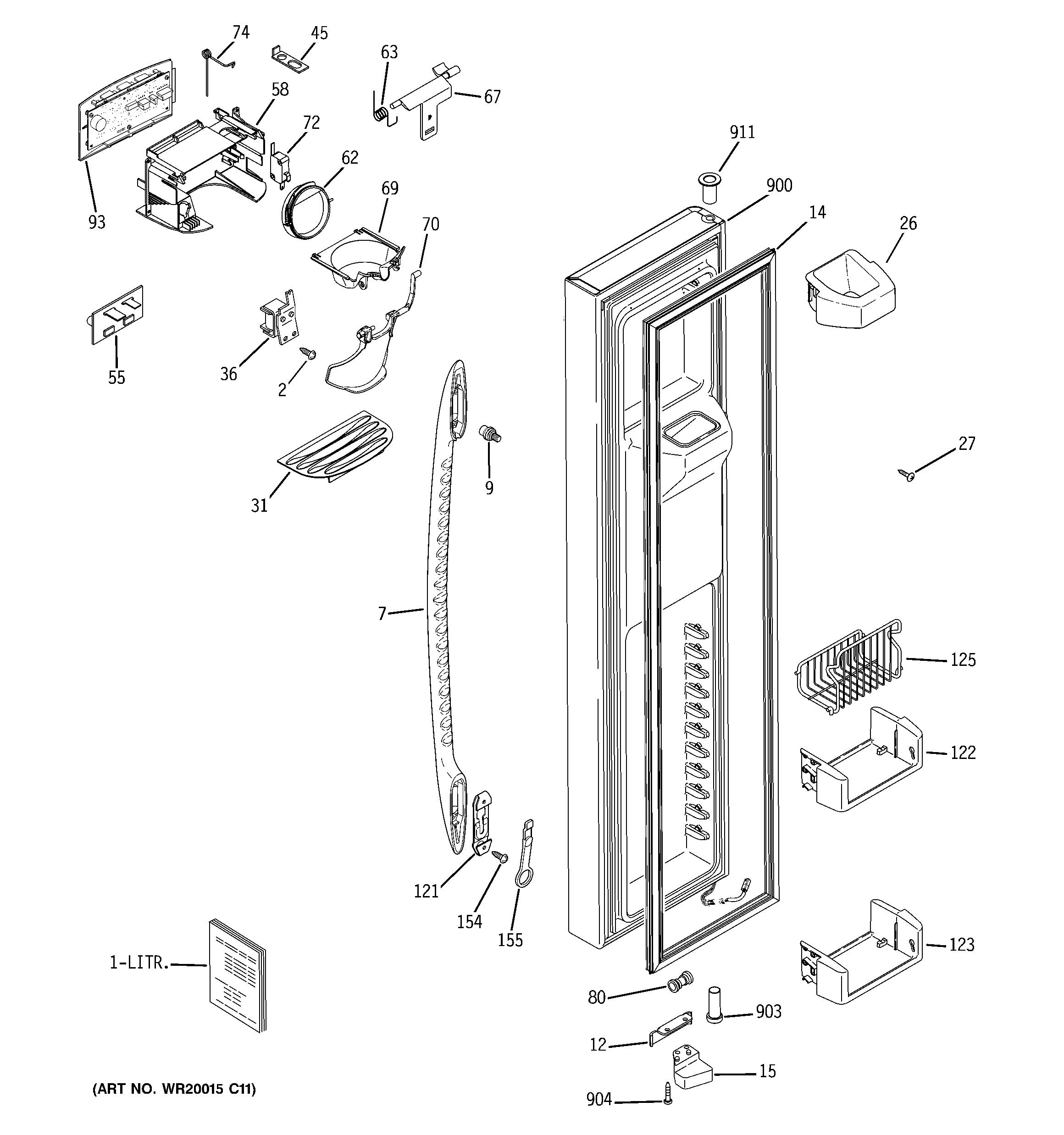

PCF25NGWCWW FREEZER DOOR

PCF25NGWCWW FREEZER DOOR

Written by

in

PCF25NGWCWW FREEZER DOOR

Products

Position	Product
1	GEN 49-60494
1	GEN 31-51707
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	WR12X10731 GE Refrigerator Handle Assembly SXS White
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
12	WR02X13424 GE Refrigerator Door Stop
14	GEN WR24X10168
15	WR02X10638 GE Refrigerator Cam Closure
26	WR71X10633 GE Refrigerator Ice Guide
27	WR01X10387 GE Refrigerator Stainless Steel Screw 8-18 AB OVP 7/8
31	WR17X12884 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X34287 GE Refrigerator Dispenser Housing Shield White
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X12121 GE Refrigerator Paddle Ice Dispenser White
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80	WR02X13342 GE Refrigerator Union Connector
93	GEN WR55X10671
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10256 GE Refrigerator Module Support
123	WR71X10629 GE Freezer Fixed Shelf Module
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
900	GEN WR78X11974
903	WR01X10208 GE Refrigerator Door Thimble
904	WR01X10611 GE Screw
911	WR01X10955 GE Refrigerator Door Thimble
