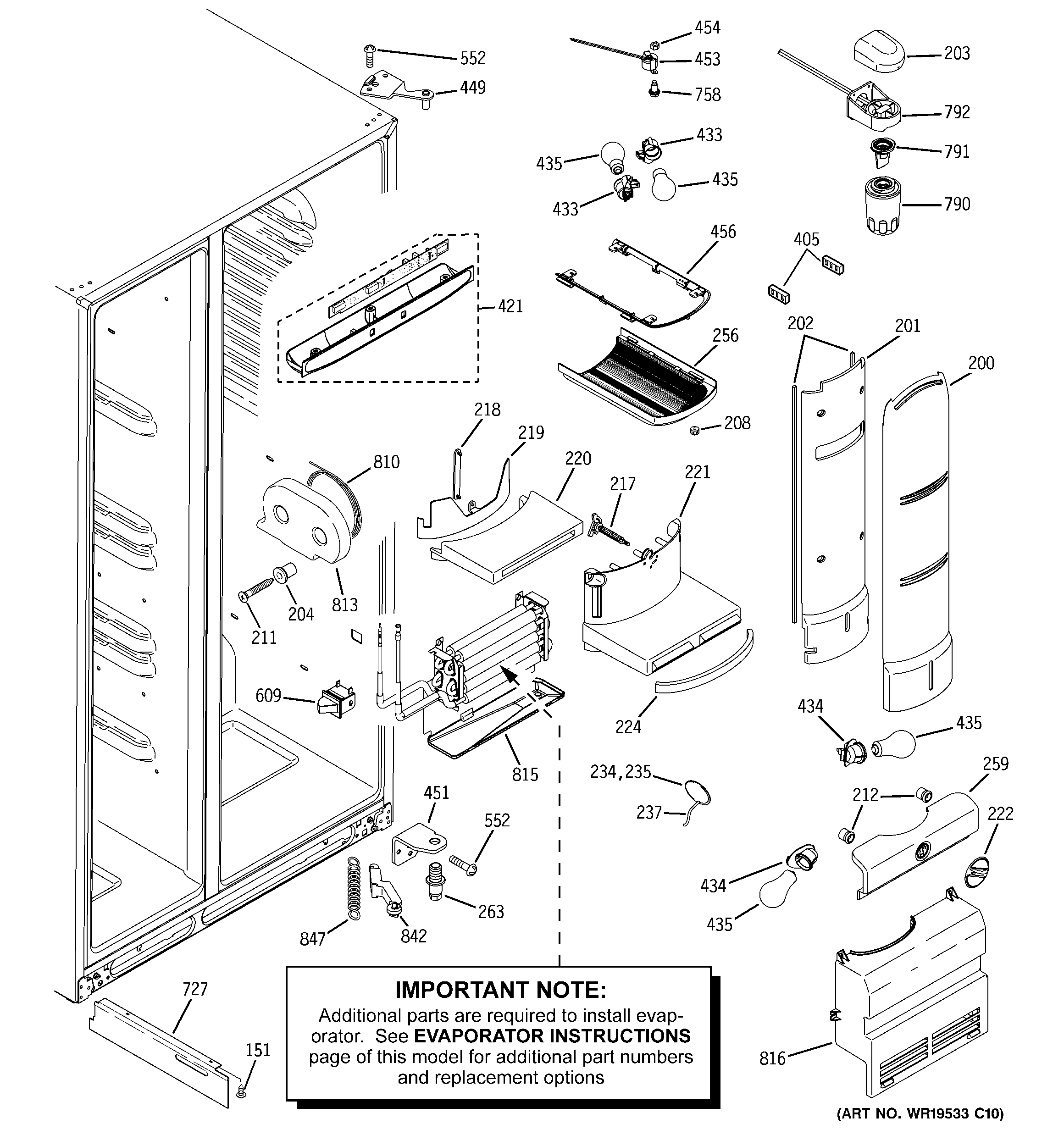

PCF25PGTAWW FRESH FOOD SECTION

PCF25PGTAWW FRESH FOOD SECTION

Written by

in

PCF25PGTAWW FRESH FOOD SECTION

Products

PositionProduct
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
200GEN WR17X11702
201GEN WR17X11703
202GEN WR14X10188
203WR17X11841 GE Water Filter Cover
204WR02X12188 GE Refrigerator Support Shelf
208WR01X10431 GE Refrigerator Nut 6-32 UN
211WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
212WR02X10689 GE Refrigerator Base Grille Grommet
217WR32X10154 GE Refrigerator Dial Chill Pan
218WR02X10665 GE Refrigerator Chill Linkage Pan
219WR02X10664 GE Refrigerator Chill Pan Shutter
220GEN WR02X11851
221WR02X11852 GE Refrigerator Chill Discharge Pan
222WR02X10666 GE Refrigerator Chill Pan Knob
224GEN WR02X11853
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
237WR55X10025 GE Refrigerator Temperature Sensor
256WR17X11713 GE Refrigerator Light Shield
259GEN WR17X11712
263WR02X12263 GE Refrigerator Pin Hinge Bottom Adjuster HOLLOW
421GEN WR55X10495
433WR2X9391 GE Socket and Terminal
434WR02X10645 GE Refrigerator Lamp Socket
449GEN WR13X10362
451WR13X10134 GE Refrigerator Bottom Hinge
454WR01X10212 GE Refrigerator 8-32 Nut
456WR71X10595 GE Refrigerator Light Bezel
552WR01X10631 GE Screw
609REFRIGERATOR DOOR LIGHT SWITCH
758WD2X323D GE Dishwasher Screw Package
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792FILTER ASM AND TUBE
810GEN WR17X11845
813GEN WR17X11710
815TROUGH DRAIN ASM
816GEN WR17X11915
842WR11X10007 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
