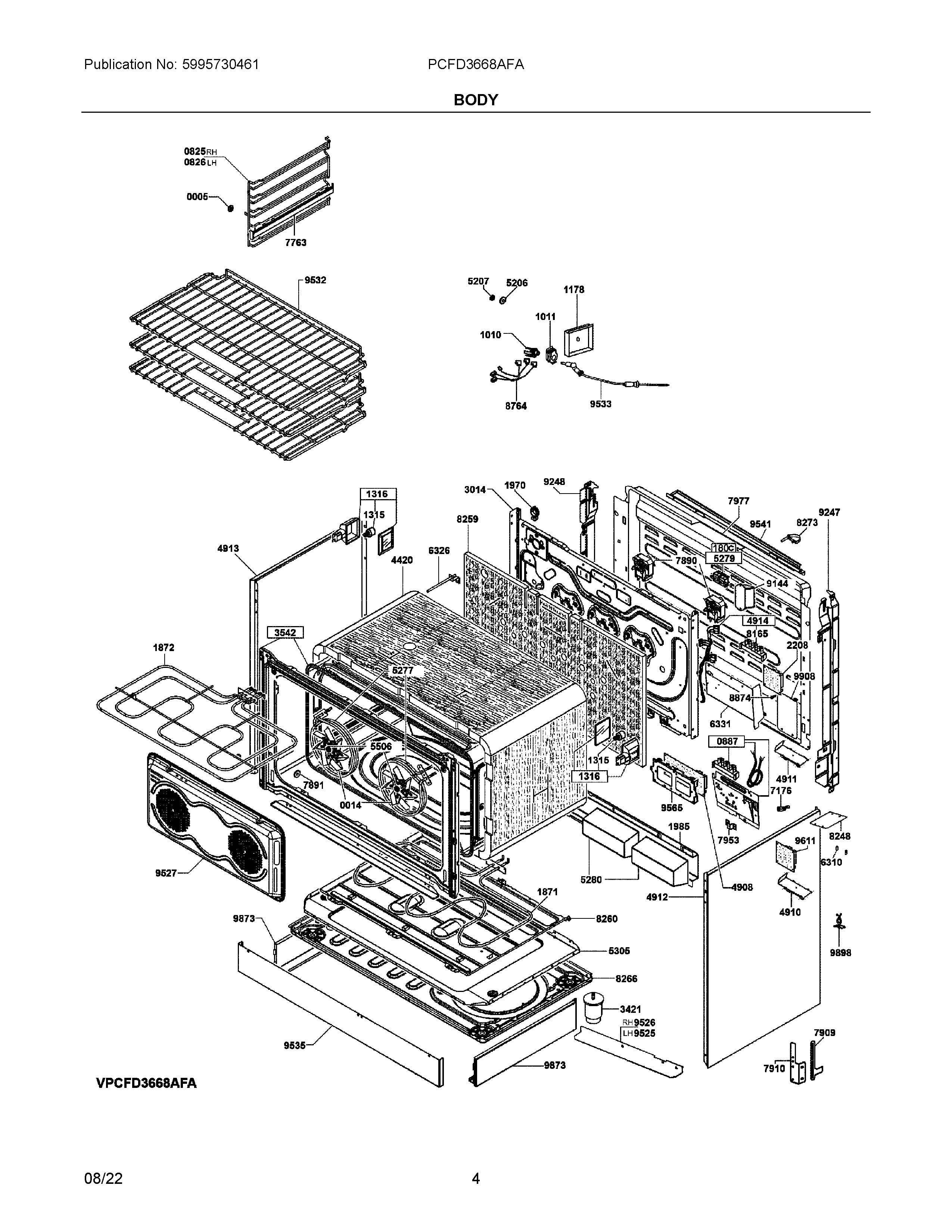

PCFD3668AFA 03 – BODY

PCFD3668AFA 03 – BODY

Written by

in

PCFD3668AFA 03 – BODY

Products

PositionProduct
5BUSHING, RACK SUPPORT, (4)
145304527454 Frigidaire Blade
8255304531576 Frigidaire Glide Rail
8265304531577 Frigidaire Glide Rail
887CABLE ASSEMBLY, FEEDER, W/TERM BLOCK
10105304527481 Frigidaire Receptacle Assembly
1011COVER, RECEPTACLE, MEAT PROBE
11785304531579 Frigidaire Housing
1315BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2)
1316LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), W/BULB
1871ELEMENT, OVEN BAKE, 1700W
18725304531581 Frigidaire Element
1970CLAMP, CABLE, (6)
19855304528981 Frigidaire Support
22085304531582 Frigidaire PC Board
3014PANEL, BACK
34215304531585 Frigidaire Cabinet Foot
3542LINER, OVEN CAVITY
4420INSULATION, OVEN WRAPPER
49085304531622 Frigidaire PC Board
49105304531624 Frigidaire Support
4911HOLDER, ASSEMBLY, FILTER
49125304531626 Frigidaire Panel
49135304531627 Frigidaire Panel
49145304531628 Frigidaire Harness
5206WASHER
5207NUT
5277ELEMENT, CONVECTION, 3380W, (2)
52795304527474 Frigidaire Thermostat
5280COUNTERWEIGHT, (2)
5305SHIELD, HIDDEN BAKE, LOWER
55065304527436 Frigidaire Nut
6310SPACER, (4)
63265304527492 Frigidaire Probe
63315304527494 Frigidaire Power Electronics
7176CLAMP, HOSE, RTE12000
77635304527498 Frigidaire Glide Kit
7890WCI 5304527722
7891WCI 5304531574
79095304533551 Frigidaire Bracket and Hook Assembly
7953BRACKET, ATTACHMENT
7977PANEL, BACK, MA
81655304527478 Frigidaire Block Terminal
8248SHIELD, FEEDER BOARD
8259INSULATION, OVEN BACK
8260BURNER BOX, SUPPORT, HIDDEN BAKE
82665304527703 Frigidaire Base Assembly
8273WCI 5304527697
87645304527530 Frigidaire Harness
8874SPACER, PC BOARD, (5)
9144WCI 5304527783
9247WCI 5304527457
9248WCI 5304527458
9525WCI 5304527731
9526WCI 5304527732
9527WCI 5304527733
95325304527737 Frigidaire Rack
95335304527535 Frigidaire Probe
95355304527738 Frigidaire Panel
9541WCI 5304527740
9565WCI 5304527743
96115304527540 Frigidaire PC Board
98735304527771 Frigidaire Cover Kit
9898WCI 5304527444
9908WCI 5304527568
