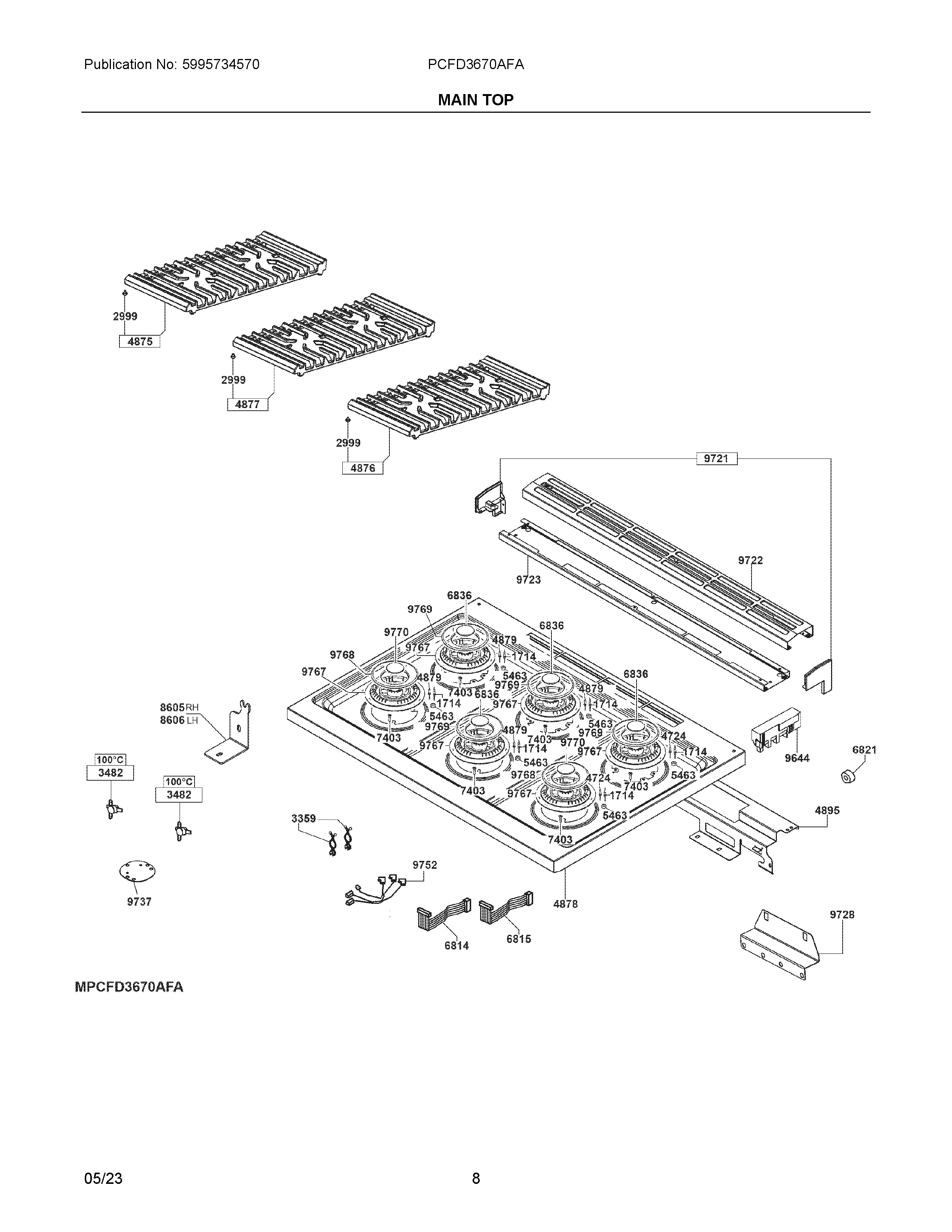

PCFD3670AFA 04 – MAIN TOP

PCFD3670AFA 04 – MAIN TOP

Written by

in

PCFD3670AFA 04 – MAIN TOP

Products

PositionProduct
17145304527484 Frigidaire Thermocouple Sensor
29995304531583 Frigidaire Foot
3359CLIP, WIRING, SPARK IGNITOR
3482THERMOSTAT, SAFETY, 100 DEG C
4724IGNITOR, SPARK, TOP BURNER
48755304531593 Frigidaire Grate
48765304531594 Frigidaire Grate
48775304531595 Frigidaire Grate Assembly
48785304531596 Frigidaire Maintop
4879IGNITOR
4895SUPPORT, MAINTOP, REAR
5463NUT, THERMOCOUPLE, TOP BURNER
68145304532699 Frigidaire Harness
68155304534122 Frigidaire Harness
6821SPACER, FRAME, REAR, (2)
68365304527495 Frigidaire Cap
7403SCREW, BURNER, M4 X 8
8605BRACKET, RH
86065304527729 Frigidaire Bracket
96445304527443 Frigidaire Module
97215304527541 Frigidaire Bracket Side
97225304527746 Frigidaire Trim
97235304530061 Frigidaire Trim Assemblyy
9728BRACKET, SUPPORT, (2)
9737PLATE, COOK TOP, (2)
97525304527548 Frigidaire Harness Assembly
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
