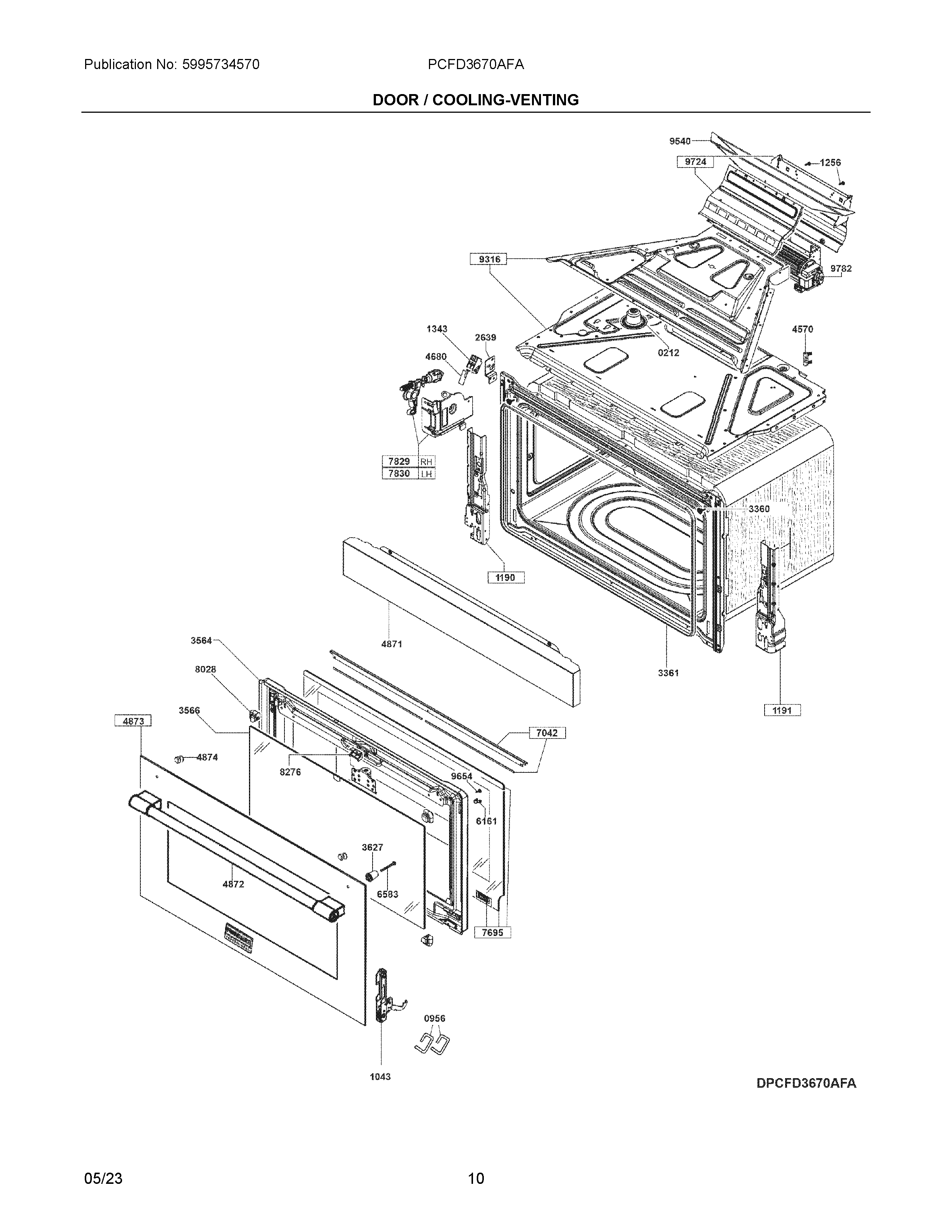

PCFD3670AFA 05 – DOOR / COOLING-VENTING

Products

PositionProduct
212CHIMNEY, OVEN CATALYST
9565304527463 Frigidaire Hook
1043HINGE, DOOR
1190BRACKET, COLUMN, LH FRONT
1191BRACKET, COLUMN, RH FRONT
1256BUMPER, RUBBER, REAR, (2), AIR DUCT
13435304527456 Frigidaire Switch
2639BRACKET, MICROSWITCH, DOOR
33605304527471 Frigidaire Bumper
33615304527709 Frigidaire Gasket
3564FRAME, INNER DOOR
35665304527718 Frigidaire Glass
3627SPACER, DOOR, INNER
45705304527488 Frigidaire Heater
46805304527473 Frigidaire Lever
48715304534039 Frigidaire Panel
48725304534036 Frigidaire Handle
48735304534037 Frigidaire Door Assembly
4874GUIDE PIN, HANDLE
6161SPRING, PIVOT FIXING, DOOR, (4)
6583SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE
7042TRIM ASSEMBLY, DOOR, UPPER
76955304527721 Frigidaire Door Glass
7829SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET
78305304527500 Frigidaire Shock Absorber
8028GROMMET, STOPPER, MIDDLE GLASS, (4)
8276CATCH, DOOR LATCH, INNER
9316AIR DUCT, ASSEMBLY, COOLING FAN
9540EXTENSION, AIR DUCT
96545304527448 Frigidaire Bumper Assembly
9724SUPPORT, ASSEMBLY, COOLING MOTOR
97825304527479 Frigidaire Blower
