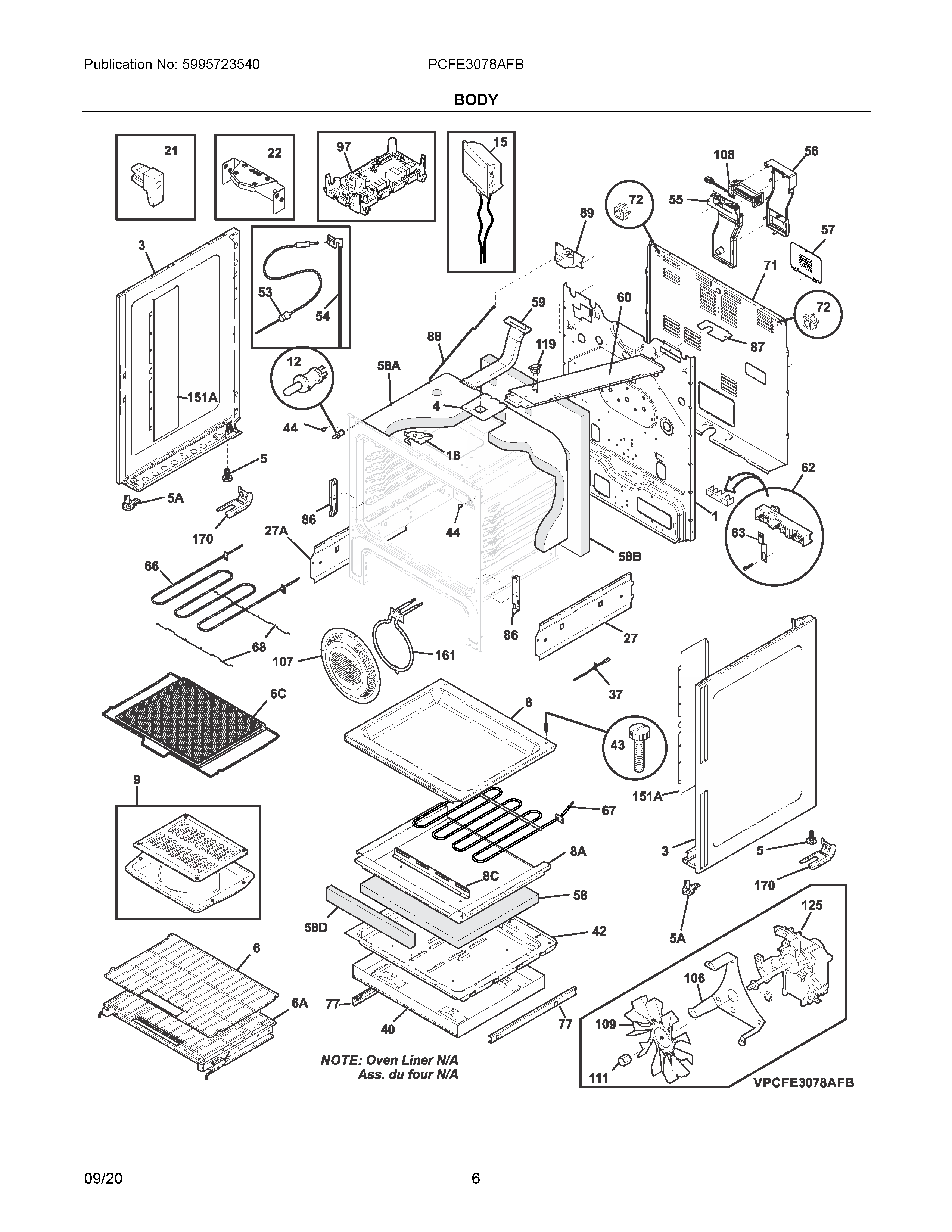

PCFE3078AFB 03 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316089500 Frigidaire Oven Screw
NIWCI 5304525009
NIB316205500 Frigidaire Oven Nut
NI5304522595 Frigidaire Harness
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NIB316116000 Frigidaire Screw
NIA316279600 Frigidaire Screw
NI316021132 Frigidaire Screw
NI5304525010 Frigidaire Harness
NIA316534100 Frigidaire Oven Washer
NI5303288566 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
NIA241853202 Frigidaire Refrigerator Screw
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NIC316542203 Frigidaire Insulator
NI5303289910 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NIA316064600 Frigidaire Oven Support
NI316247700 Frigidaire Oven Nut
NIA316001017 Frigidaire Screw
15304514161 Frigidaire Back
3A316400145 Frigidaire Panel Assembly
3316400144 Frigidaire Panel
4PLATE, OVEN VENT
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6CAIR FRY TRAY
6A5304525015 Frigidaire Rack
6316496201 Frigidaire Oven Rack
8C316505801 Frigidaire Oven Support
8A316505701 Frigidaire Oven Base
8WCI 316505601
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
155304523863 Frigidaire Lamp Assembly
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
225304514125 Frigidaire Bracket Assembly
27A316604101 Frigidaire Shield
27316604100 Frigidaire SHIELD
37316490000 Frigidaire Oven Range Temperature Sensor
40316602600 Frigidaire Shield
42316601600 Frigidaire Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
535304504202 Frigidaire Red Meat Temperature Probe
54316536904 Frigidaire Receptacle
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57316283600 Frigidaire Oven Cover
58D316509700 Frigidaire Insulation
58INSULATION, OVEN SUMP
58A316403700 Frigidaire Insulation
58BWCI 316403600
595304514160 Frigidaire Tube
605304522591 Frigidaire Duct Assembly
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66BROIL ELEMENT
67316505500 Frigidaire Oven Element
68316429100 Frigidaire Oven Support Bracket
715304514174 Frigidaire Oven Shield
725304514177 Frigidaire Spacer
77316456700 Frigidaire Oven Glide Assembly
86316580700 Frigidaire Door Hinge Receptacle
87316081200 Frigidaire Oven Bracket
88316232702 Frigidaire Rod
89MOTOR
975304516862 Frigidaire Oven Board
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
1085304514166 Frigidaire Fan Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125316256100 Frigidaire Oven Fan Motor
151AWCI 5304521158
1615304518014 Frigidaire Oven Element
