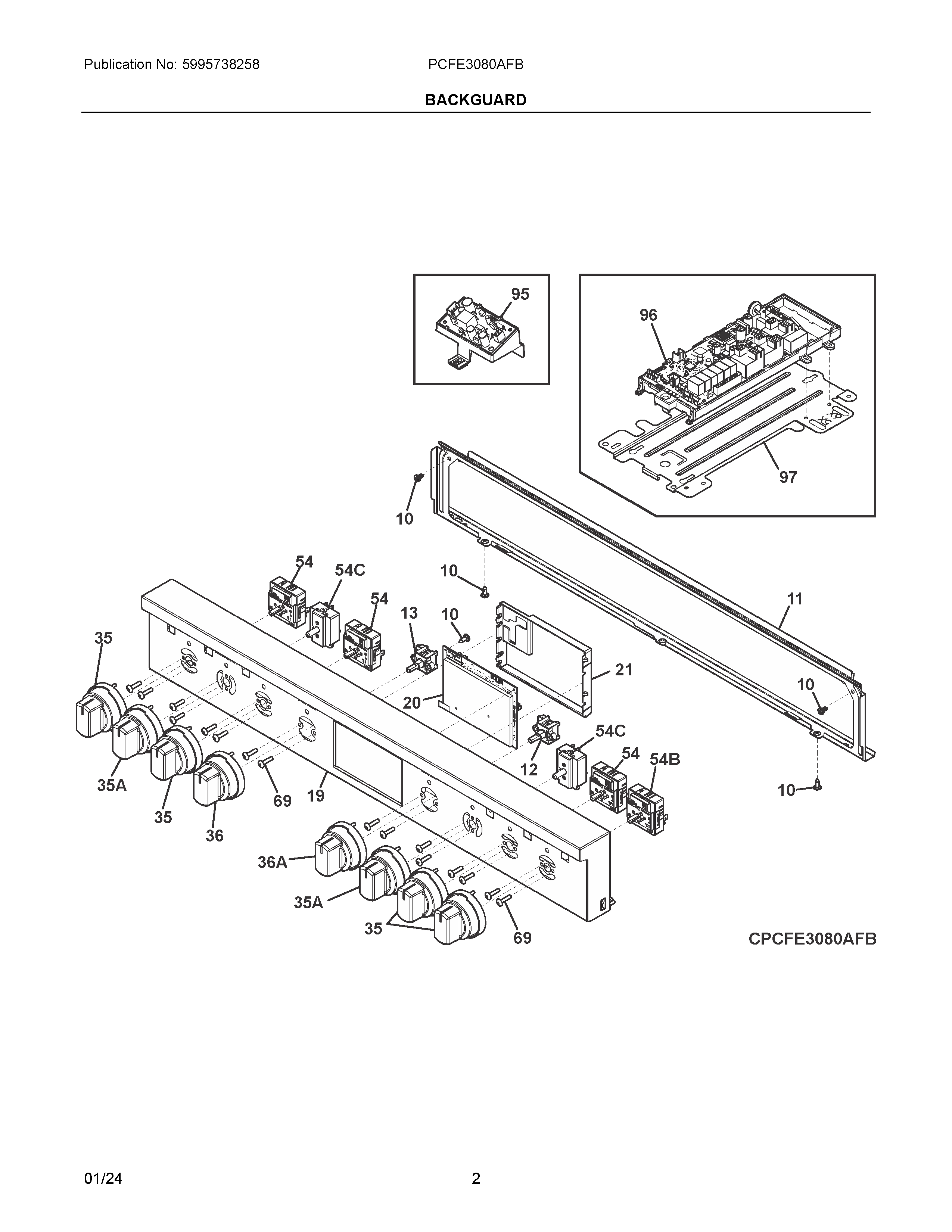

PCFE3080AFB 02 – BACKGUARD

PCFE3080AFB 02 – BACKGUARD

Written by

in

PCFE3080AFB 02 – BACKGUARD

Products

PositionProduct
NIAWCI 5304528293
NIHARNESS, WIRING, ENERGY, REGULATOR
NIHARNESS
NIHARNESS, WIRING, BACKLIT KNOBS
NIWCI 5304533472
NI5304529016 Frigidaire Harness Assembly
NI387856311 Frigidaire Screw
105304526533 Frigidaire Screw
115304528295 Frigidaire Bracket
12POTENTIOMETER
13808843110 Frigidaire Potentiometer Assembly
19CONTROL PANEL
20CONTROL ASSEMBLY
21COVER, CONTROL
35KNOB, INFINITE SWITCH, STAINLESS, 0 DEG. FLAT
35AKNOB, INFINITE SWITCH, STAINLESS, 90 DEG. FLAT
36AKNOB, OVEN TEMP, STAINLESS
36KNOB, OVEN SELECTOR, STAINLESS
545304522966 Frigidaire Switch
54C316471601 Frigidaire Switch-Infinite
54B5304522965 Frigidaire Switch Assembly
69SCREW, TRUSS, 8-32 X 17.65
955304534730 Frigidaire PC Board
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
