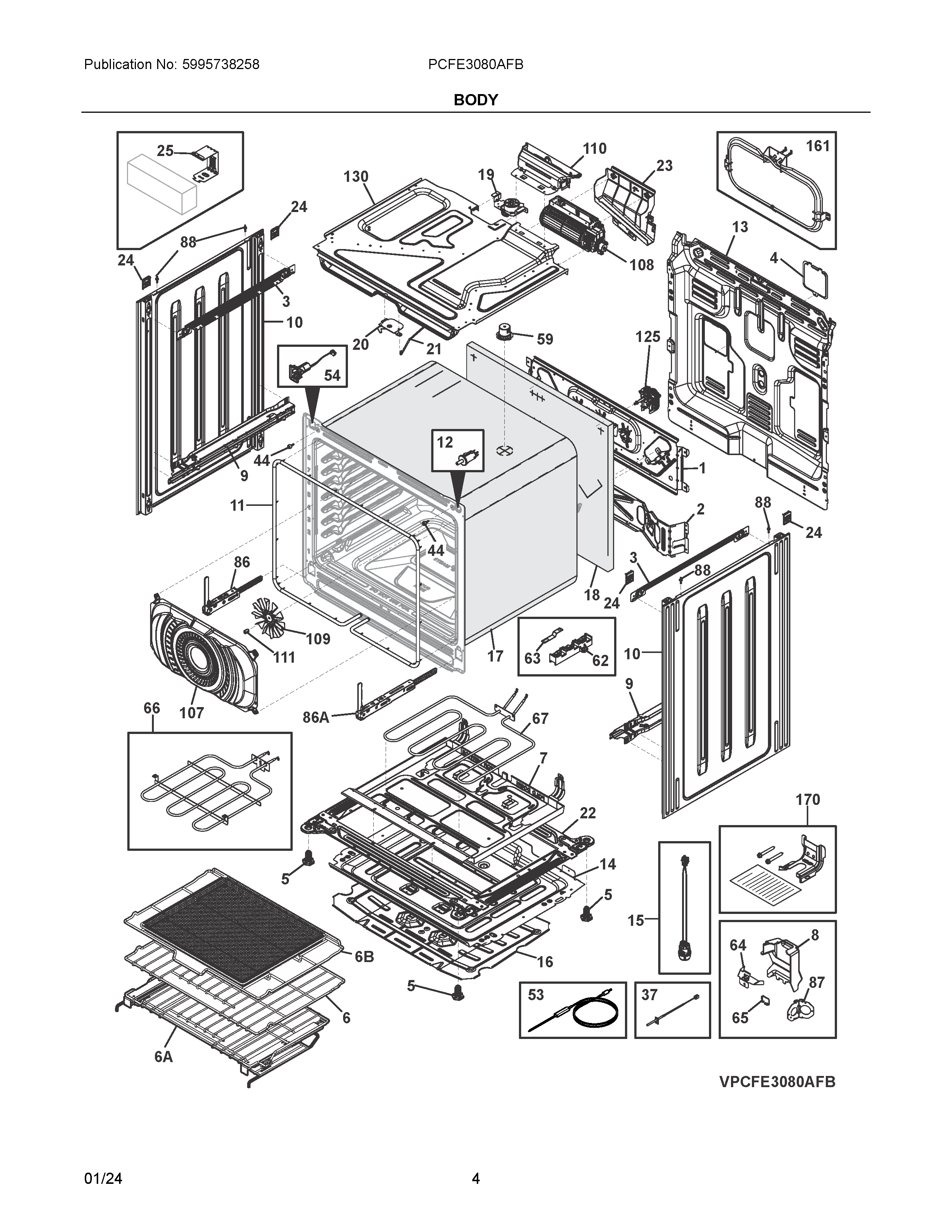

PCFE3080AFB 03 – BODY

PCFE3080AFB 03 – BODY

Written by

in

PCFE3080AFB 03 – BODY

Products

PositionProduct
NIA5304526234 Frigidaire Screw
NISCREW, SELF DRILL, M3.5 X 9.5
NISCREW, T20,
NI387856311 Frigidaire Screw
NIWCI 387872717
NIWCI 5304536410
NIWCI 5304533472
NIAWCI 5304533495
NIWCI 5304534728
NIA316001017 Frigidaire Screw
NIWCI 5304536347
NIB316205500 Frigidaire Oven Nut
NI5304526532 Frigidaire Screw
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6BFRIG AIR FRY TRAY PEREGRINE
6RACK
6ARACK ASSEMBLY, GLIDE
7TRAY, HIDDEN BAKE
85304528549 Frigidaire Cover
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304528053 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD
14SHIELD, INSULATION, LOWER
155304533411 Frigidaire Lamp Assembly
16SHIELD, DRAWER STORAGE, FULL
17INSULATION, OVEN WRAPPER
18INSUALTION, OVEN BACK
195304528260 Frigidaire Motor
205304528257 Frigidaire Latch Assembly
21ROD
22BASE RAIL, ASSEMBLY
235304533976 Frigidaire Guard
245304534653 Frigidaire Clip Assembly
25BRACKET, COUNTERWEIGHT
375304533448 Frigidaire Probe
44316517600 Frigidaire Oven Spacer
53807822611 Frigidaire Probe
54RECEPTACLE
59TUBE, OVEN VENT
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
645304528551 Frigidaire Shield
65CLIP, POWER CORD
66ELEMENT BROIL
675304535239 Frigidaire Element-Hidden Bk 2
86HINGE, OVEN DOOR, WHITE, SINGLE SPRING
86AHINGE, OVEN DOOR, WHITE, DUAL SPRING
87BRACKET, POWER CORD
88PIN, GUIDE
1075304526365 Frigidaire Cover
1085304528167 Frigidaire Blower Assembly
1095304525455 Frigidaire Blade
110WCI 5304528418
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
130DUCT ASSEMBLY
1615304526565 Frigidaire Element
170316112010 Frigidaire Anti Tip Kit
