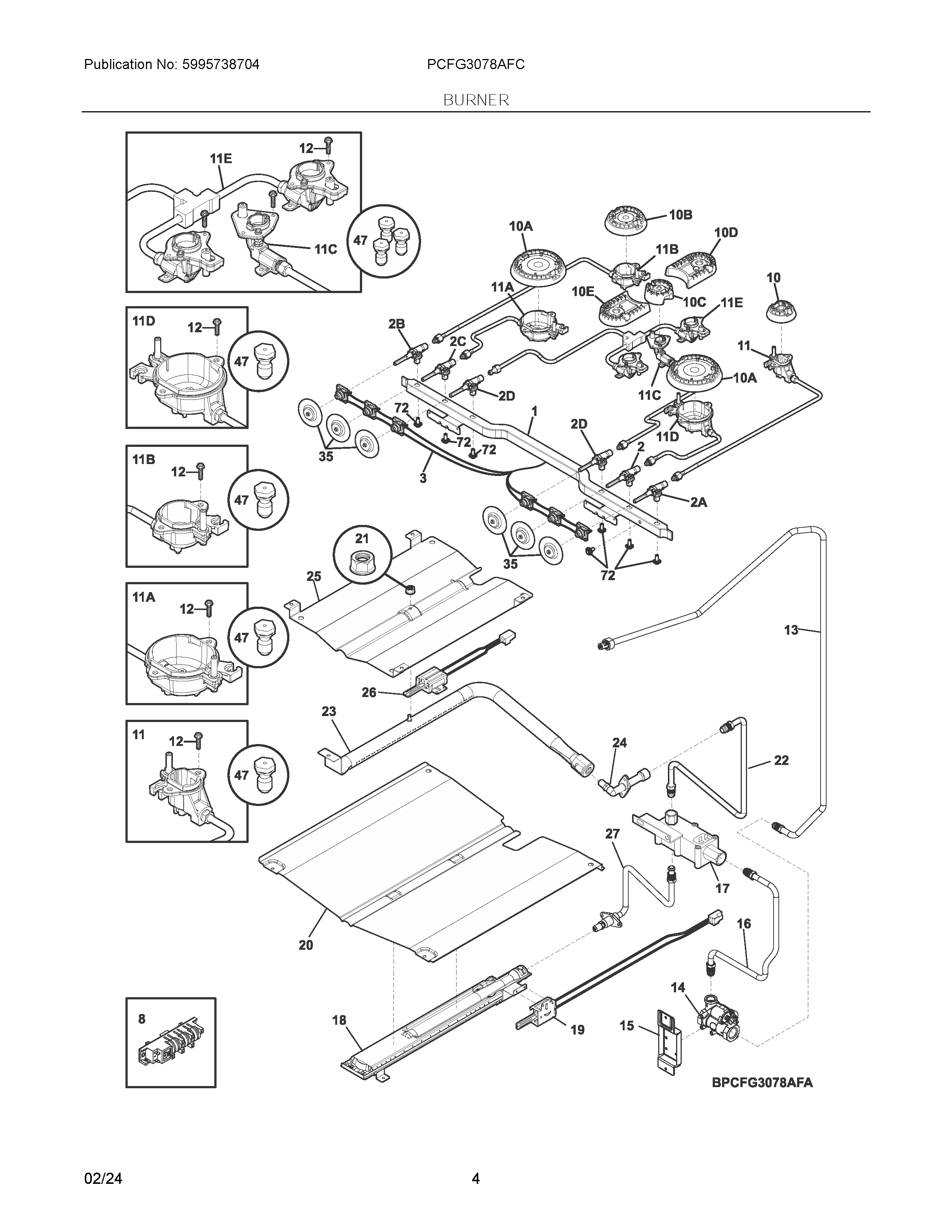

PCFG3078AFC 03 – BURNER

PCFG3078AFC 03 – BURNER

Written by

in

PCFG3078AFC 03 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316001017 Frigidaire Screw
NI5304505563 Frigidaire Oven Wire
NI316089500 Frigidaire Oven Screw
NIA316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5303289910 Frigidaire Oven Screw
NIA316498100 Frigidaire Shield
NI316401500 Frigidaire Oven Cover
NI316021105 Frigidaire Oven Screw
NI316602300 Frigidaire Bracket
15304523861 Frigidaire Manifold Assembly
2A5304506547 Frigidaire Oven Valve
25304506550 Frigidaire Oven Range Gas Valve (White)
2B5304506549 Frigidaire Oven Valve
2C5304506548 Frigidaire Oven Valve
2D5304507283 Frigidaire Oven Valve
35304528833 Frigidaire Harness-Ignition
8808608807 Frigidaire Spark Module
10A5304521016 Frigidaire Surface Burner Base
10B5304521015 Frigidaire Oven Surface Burner Base
10C5304523854 Frigidaire Burner
10D5304523856 Frigidaire Burner Simmer
10E5304523855 Frigidaire Burner Simmer
105304521014 Frigidaire Oven Surface Burner Base
11A5304523873 Frigidaire Assembly-Igniter/Orifice
115304523877 Frigidaire Igniter/Orifice Assembly
11B5304523872 Frigidaire Igniter/Orifice Assembly
11C5304523875 Frigidaire Igniter/Orifice Assembly
11D5304523876 Frigidaire Igniter/Orifice Assembly
11E5304523874 Frigidaire Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13TUBE, MANIFOLD SUPPLY
14316091711 Frigidaire Regulator Assembly
15316603300 Frigidaire Bracket
165304507349 Frigidaire Tube
175303210798 Frigidaire Range Wall Oven Gas Safety Valve
185304494426 Frigidaire Oven Burner
19BAKE IGNITOR
20BAFFLE, OVEN BURNER
215303013272 Frigidaire Oven Nut
225304516857 Frigidaire Tube
23316404302 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
255304497666 Frigidaire Oven Baffle
265304506545 Frigidaire Gas Oven Range Igniter
27316602400 Frigidaire Oven Tube
355304508440 Frigidaire Bushing
47808695310 Frigidaire LP Conversion Kit
72316215600 Frigidaire Oven Screw
