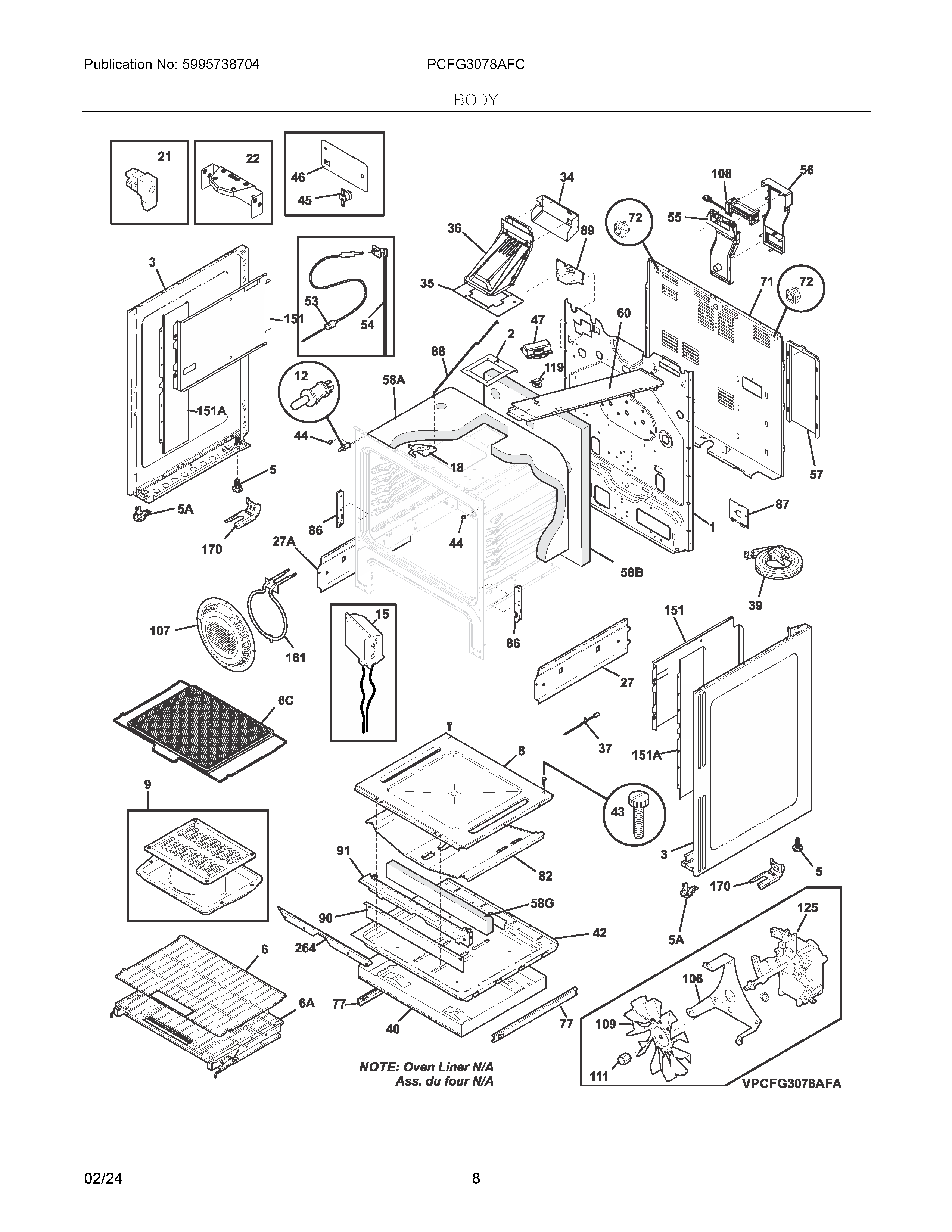

PCFG3078AFC 04 – BODY

PCFG3078AFC 04 – BODY

Written by

in

PCFG3078AFC 04 – BODY

Products

PositionProduct
NIA316534100 Frigidaire Oven Washer
NI316021132 Frigidaire Screw
NI5304534005 Frigidaire Gas Main Harness
NI5304533726 Frigidaire Low Voltage Harness
NIA316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
NI316001017 Frigidaire Screw
NIA316602300 Frigidaire Bracket
NI316247700 Frigidaire Oven Nut
NI316279600 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NIA316432800 Frigidaire Clip
NIA5304514202 Frigidaire Nut
NI5303288566 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5303271648 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NIA316064600 Frigidaire Oven Support
NI316021105 Frigidaire Oven Screw
NIB316116000 Frigidaire Screw
NI5303285179 Frigidaire Oven Door Screw
1BACK, MAIN
2316437100 Frigidaire Brace Assembly DSP
3316400144 Frigidaire Panel
3A316400145 Frigidaire Panel Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
5A5304509869 Frigidaire Oven Leveling Leg Assembly
6A5304525015 Frigidaire Rack
6CAIR FRY TRAY
6316496201 Frigidaire Oven Rack
8316603201 Frigidaire Oven Panel
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
12316445501 Frigidaire Oven Switch
155304523863 Frigidaire Lamp Assembly
18316405800 Frigidaire Assembly Latch
21316408000 Frigidaire Oven Clip Assembly
225304514125 Frigidaire Bracket Assembly
27316604100 Frigidaire SHIELD
27A316604101 Frigidaire Shield
345304514137 Frigidaire Shield
35316542102 Frigidaire Flue Gasket
365304514132 Frigidaire FLUE Box
37316490000 Frigidaire Oven Range Temperature Sensor
395304534000 Frigidaire Cord
40316602600 Frigidaire Shield
42316601600 Frigidaire Shield
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
455304514198 Frigidaire Thermostat
46BRACKET, MOUNTING, TCO
475304523889 Frigidaire Cover Assembly
535304504202 Frigidaire Red Meat Temperature Probe
54316536904 Frigidaire Receptacle
555304514171 Frigidaire Oven Duct
565304514172 Frigidaire Oven Duct
57DUCT
58BWCI 316403600
58A316403700 Frigidaire Insulation
58G08067973 Frigidaire 0 Insulation
60DUCT, COOLING, 60
715304514175 Frigidaire Shield
725304514177 Frigidaire Spacer
77316456700 Frigidaire Oven Glide Assembly
82316601401 Frigidaire Shield
86316580700 Frigidaire Door Hinge Receptacle
87316602200 Frigidaire Plate
88316232702 Frigidaire Rod
89MOTOR
90WCI 316601900
91316601800 Frigidaire Shield
106316404100 Frigidaire Oven Bracket
107316026701 Frigidaire Oven Cover Assembly
1085304514166 Frigidaire Fan Assembly
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
125316256900 Frigidaire Oven Fan Motor
1515304518926 Frigidaire Shield
151AWCI 5304521158
1615304518014 Frigidaire Oven Element
264316404700 Frigidaire Bracket
