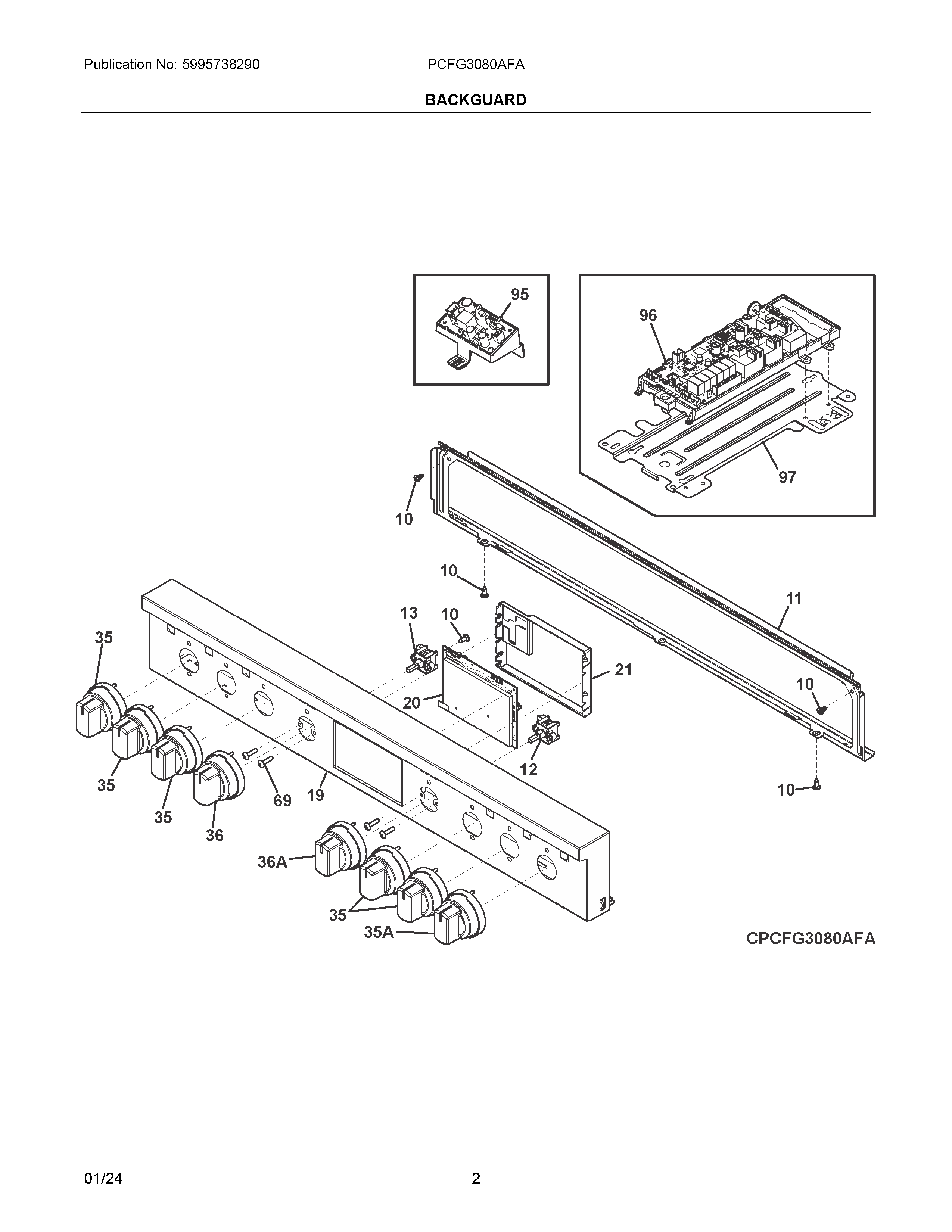

PCFG3080AFA 02 – BACKGUARD

Products

PositionProduct
NIAWCI 5304528293
NIHARNESS, WIRING, MACS PANEL, TO UI BOARD
NIHARNESS
NIHARNESS, BACKLIT KNOB, OVEN CONTROLS
NI387856311 Frigidaire Screw
105304526533 Frigidaire Screw
115304528295 Frigidaire Bracket
12POTENTIOMETER
13808843110 Frigidaire Potentiometer Assembly
16PANEL, MANIFOLD, STAINLESS
20CONTROLLER
21COVER, CONTROL
35KNOB, TOP VALVE, STAINLESS, SINGLE
35AKNOB, TOP VALVE, STAINLESS, DUAL
36AKNOB, OVEN TEMP, STAINLESS
36KNOB, OVEN SELECTOR, STAINLESS
69SCREW, TRUSS, 8-32 X 17.65
955304535286 Frigidaire Board Assembly
965304535108 Frigidaire PCB Board
97BRACKET, OVC BOARD
