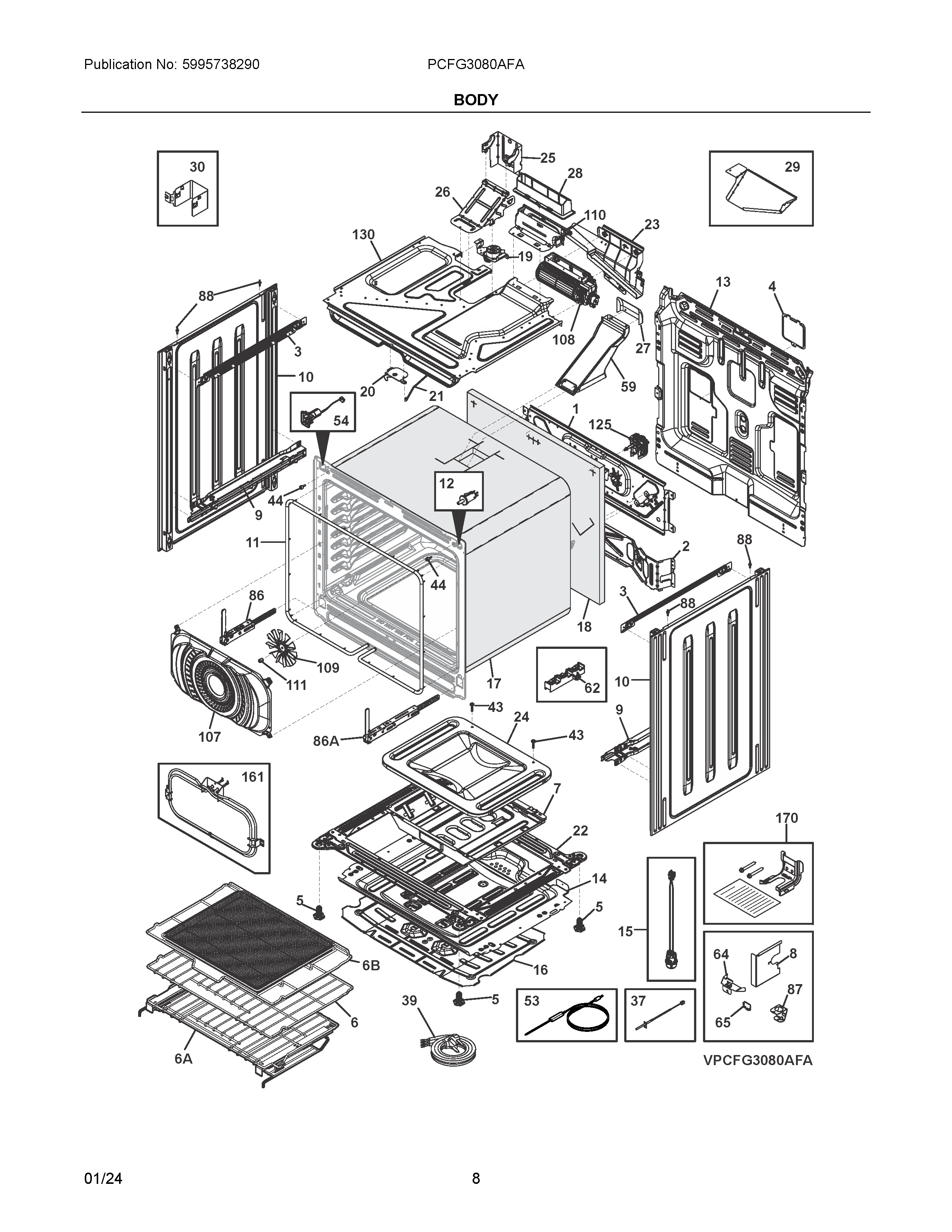

PCFG3080AFA 04 – BODY

PCFG3080AFA 04 – BODY

Written by

in

PCFG3080AFA 04 – BODY

Products

PositionProduct
NIWCI 387872717
NI5304526533 Frigidaire Screw
NI5304526532 Frigidaire Screw
NIB5304526234 Frigidaire Screw
NIWCI 5304533472
NISCREW, SELF DRILL, M3.5 X 9.5
NIWCI 5304536410
NIAWCI 5304533495
NISCREW, T20,
NI387856311 Frigidaire Screw
NIAWCI 5304533896
NIB316205500 Frigidaire Oven Nut
NI5304535285 Frigidaire Harness
NI5304535287 Frigidaire Harness
NIA316001017 Frigidaire Screw
1BRACKET
2BRACKET, COMPONENTS, LOWER
35304526493 Frigidaire Bracket
45304528328 Frigidaire Cover
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6ARACK ASSEMBLY, GLIDE
6BFRIG AIR FRY TRAY PEREGRINE
6RACK
75304534661 Frigidaire Box
85304533923 Frigidaire Cover Assembly
95304528546 Frigidaire Receptacle
105304526334 Frigidaire Panel
115304528053 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD
14SHIELD, INSULATION, LOWER
155304533411 Frigidaire Lamp Assembly
16SHIELD, DRAWER STORAGE, FULL
17INSULATION
18INSULATION
195304528260 Frigidaire Motor
205304528257 Frigidaire Latch Assembly
21ROD, DOOR LATCH
22BASE RAIL, ASSEMBLY
23GUARD, BLOWER
245304535291 Frigidaire Bottom
25SHIELD, HEAT, REAR
26SHIELD, HEAT, FRONT
27COVER, FLUE
28DIVERTER, EXHAUST
29SHIELD, DIVERTER
30SHIELD, BROIL, REAR
375304533901 Frigidaire Probe
395304534691 Frigidaire Cord
43316282700 Frigidaire Oven Screw
44316517600 Frigidaire Oven Spacer
53807822611 Frigidaire Probe
54RECEPTACLE
59FLUE, ASSEMBLY
625303935271 Frigidaire Oven Terminal Block
645304528551 Frigidaire Shield
65CLIP, POWER CORD
86HINGE, OVEN DOOR, WHITE, SINGLE SPRING
86AHINGE, OVEN DOOR, WHITE, DUAL SPRING
87BRACKET, POWER CORD
88PIN, GUIDE
1075304526365 Frigidaire Cover
1085304528167 Frigidaire Blower Assembly
1095304525455 Frigidaire Blade
110DUCT ASSEMBLY, EXHAUST, COOLI
111561231207 Frigidaire Nut
1255304528165 Frigidaire Motor
130WCI 5304534670
1615304528164 Frigidaire Element
170316112010 Frigidaire Anti Tip Kit
