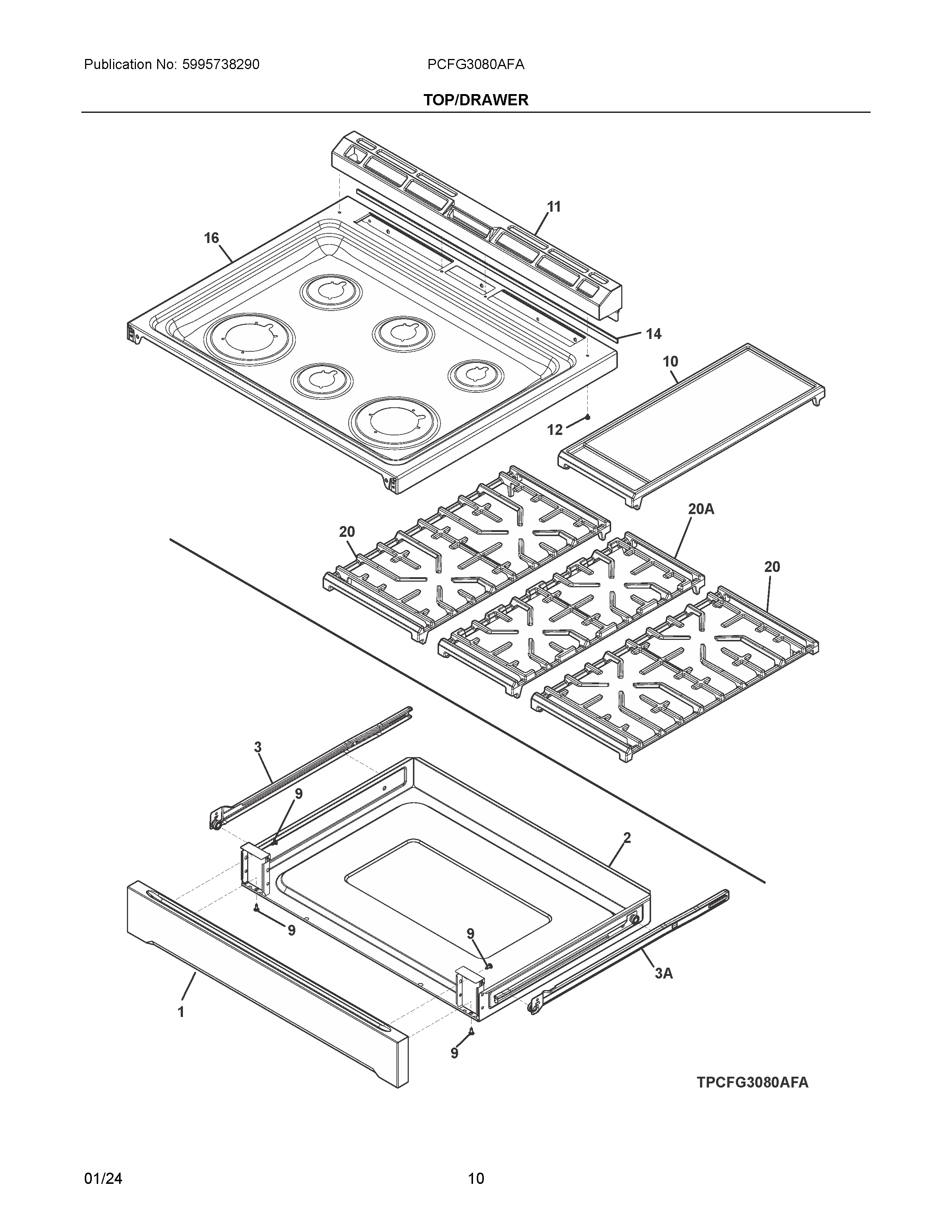

PCFG3080AFA 05 – TOP/DRAWER

PCFG3080AFA 05 – TOP/DRAWER

Written by

in

PCFG3080AFA 05 – TOP/DRAWER

Products

PositionProduct
NI316089500 Frigidaire Oven Screw
1PANEL
25304528242 Frigidaire Assembly Drawer
35304526306 Frigidaire Glide
3A5304526307 Frigidaire Glide
95304526533 Frigidaire Screw
10GRIDDLE, BLACK
11TRIM, VENT, STAINLESS, REAR
12SCREW, M4.2X7X1.06, BLACK
14SEAL, MAINTOP
16MAINTOP, ASSEMBLY, STAINLESS
20GRATE, SIDE, BLACK
20AGRATE, CENTER, BLACK
