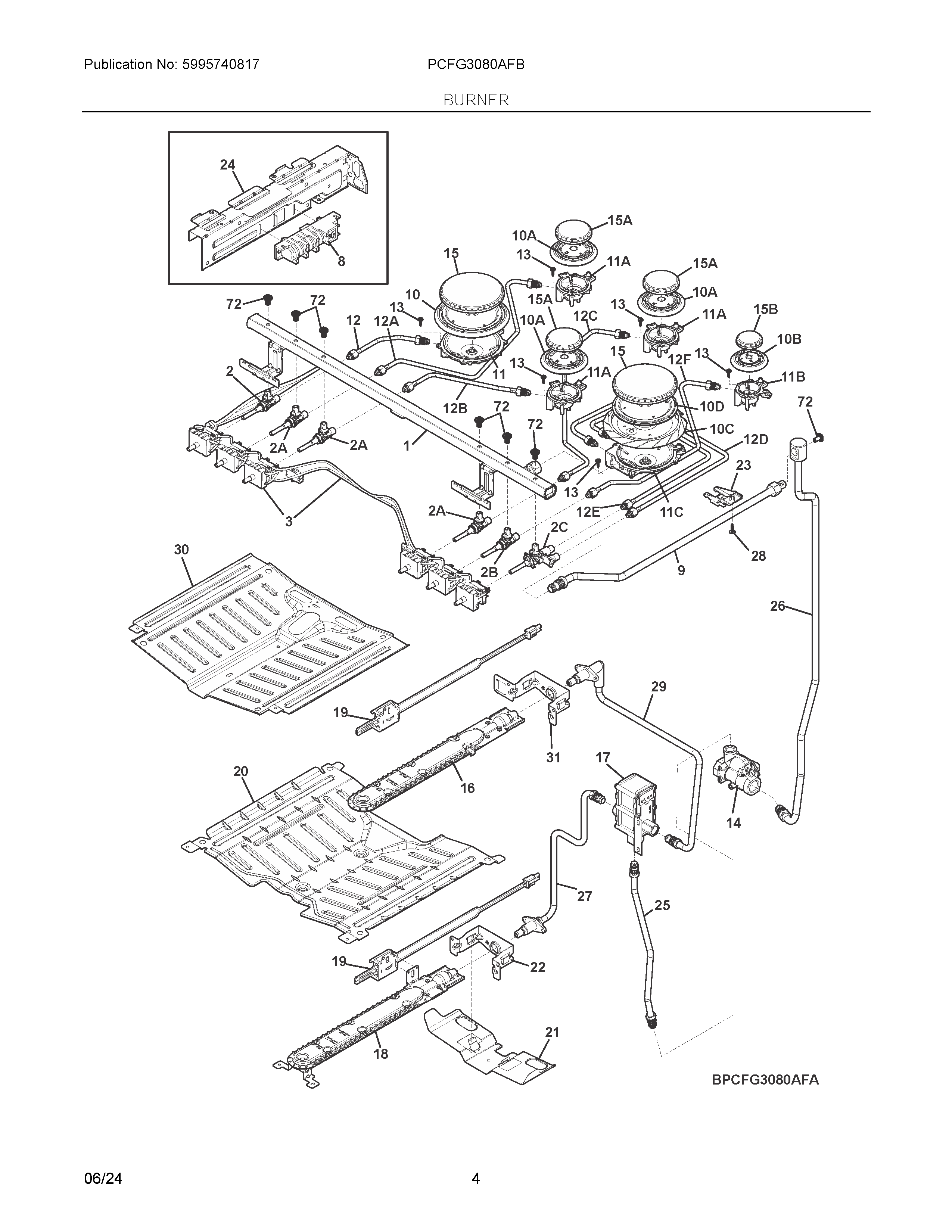

PCFG3080AFB 03 – BURNER

PCFG3080AFB 03 – BURNER

Written by

in

PCFG3080AFB 03 – BURNER

Products

PositionProduct
NIWCI 5304528293
NIA5304514202 Frigidaire Nut
NIAWCI 349098702
NIA5304526533 Frigidaire Screw
NI387856311 Frigidaire Screw
NIAWCI 387872717
NIA316001017 Frigidaire Screw
1MANIFOLD, TUBE
2A5304506548 Frigidaire Oven Valve
2B5304506547 Frigidaire Oven Valve
2CVALVE
25304507282 Frigidaire Oven Gas Valve
3HARNESS ASSEMBLY, BACKLIT, WITH SWITCHES
8SPARK MODULE
9TUBE, CONNECTING, MANIFOLD, TO REGULATOR
10CROWN,BURNER,XTRA LARGE
10B5304533592 Frigidaire Range Crown
10CBurner, double, 18K, bottom
10DBurner, double, 18K, top
10A5304533593 Frigidaire Range Crown
11B5304533582 Frigidaire Igniter/Orifice
115304533611 Frigidaire Igniter/Orifice Assembly
11AIGNITOR/ORIFICE, ASSEMBLY, 7.5K BTU
11CIGNITOR/ORIFICE
12TUBE, BURNER, LH FRONT
12ATUBE, BURNER, LH REAR
12BTUBE, BURNER, CENTER FRONT
12DTUBE, BURNER, RH FRONT, OUTER
12ETUBE, BURNER, RH FRONT, INNER
12FTUBE, BURNER, RH REAR
12CTUBE, BURNER, CENTER REAR
13SCREW, T10 WASHER, M2.9 X 13
14316091711 Frigidaire Regulator Assembly
155304533597 Frigidaire Range Cap Assembly
15B5304533595 Frigidaire Range Cap Assembly
15A5304533596 Frigidaire Range Cap
16BURNER ASSEMBLY
175304534971 Frigidaire Valve
185304533840 Frigidaire Burner Assembly
195304534663 Frigidaire Igniter
20BAFFLE
21SHIELD, BAKE BRACKET
225304535280 Frigidaire Bracket
23BRACKET, TUBING
24BRACKET, HARNESS
255304526247 Frigidaire Tube
265304534673 Frigidaire Tube
275304533910 Frigidaire Tube Assembly
28WCI 5304534684
295304533929 Frigidaire Tube Assembly
30WCI 5304528281
31Bracket, broil mixer
72SCREW
