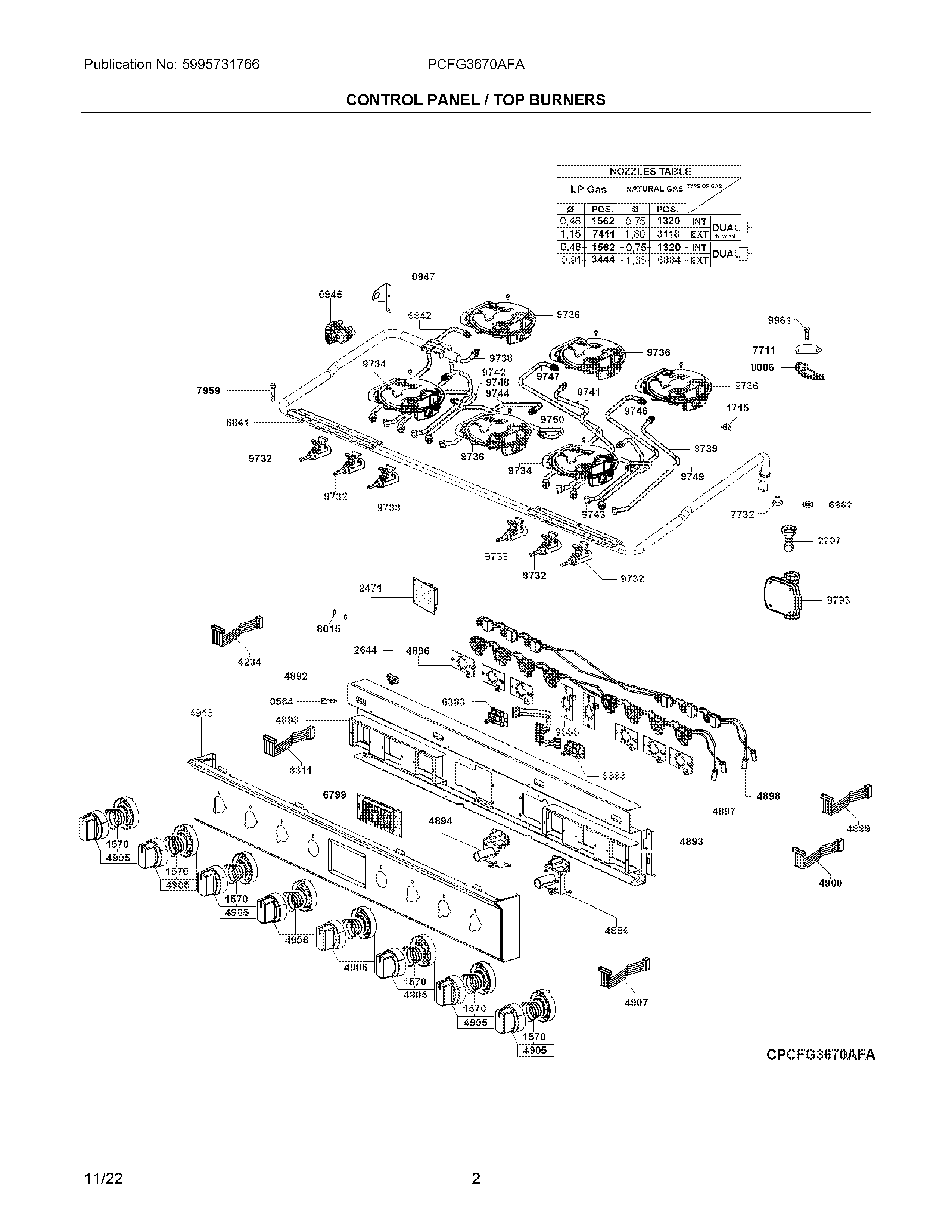

PCFG3670AFA 02 – CONTROL PANEL / TOP BURNERS

PCFG3670AFA 02 – CONTROL PANEL / TOP BURNERS

Written by

in

PCFG3670AFA 02 – CONTROL PANEL / TOP BURNERS

Products

PositionProduct
564SCREW, BRACKET, (10), CONTROL PANEL
946VALVE, SOLENOID, 2 WAY
947BRACKET, VALVE SUPPORT
13205304527459 Frigidaire Orifice
15625304527467 Frigidaire Orifice
15705304527483 Frigidaire Spring
1715SPRING CLIP, BURNER
2207CONNECTOR, MANIFOLD TUBE
24715304529252 Frigidaire PCB Board
2644CLAMP, CABLE, (2)
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
34445304527696 Frigidaire Orifice
42345304527487 Frigidaire Harness
4892SUPPORT, FRONT PANEL
4893SUPPORT, CONTROL VALVES
48945304531612 Frigidaire Support
48965304531614 Frigidaire PC Board
48975304531615 Frigidaire Micro Switch
48985304531616 Frigidaire Micro Switch
4899CABLE, COMMUNICATION
4900CABLE, COMMUNICATION
49055304531619 Frigidaire Assembly Knob
49065304531620 Frigidaire Assembly-Knob
4907CABLE, LIGHTING
4918CONTROL PANEL, STAINLESS, 4918
63115304532116 Frigidaire Harness
63935304527476 Frigidaire Switch
67995304534038 Frigidaire Controller
6841MANIFOLD, ASSEMBLY, TOP BURNERS
6842TUBE, BURNER, LH REAR, SIDE
6884ORIFICE, NATURAL GAS, D.1, 35-12K BTU
69625304527447 Frigidaire Seal
74115304527438 Frigidaire Orifice
7711PLATE, BURNER
7732CAP, GAS PIPE
7959SCREW
80065304527505 Frigidaire Gasket
8015SPACER, ELECTRONIC UNIT, (3)
87935304527531 Frigidaire Regulator
95555304527536 Frigidaire Harness
97325304527750 Frigidaire Valve
97335304527544 Frigidaire Valve
97345304527545 Frigidaire Holder Assembly
97365304527751 Frigidaire Assembly Holder
9738WCI 5304527752
9739WCI 5304527753
9741WCI 5304527754
9742WCI 5304527755
9743WCI 5304527756
9744WCI 5304527757
9746WCI 5304527759
9747WCI 5304527760
9748WCI 5304527761
9749WCI 5304527762
9750WCI 5304527763
9961WCI 5304527449
