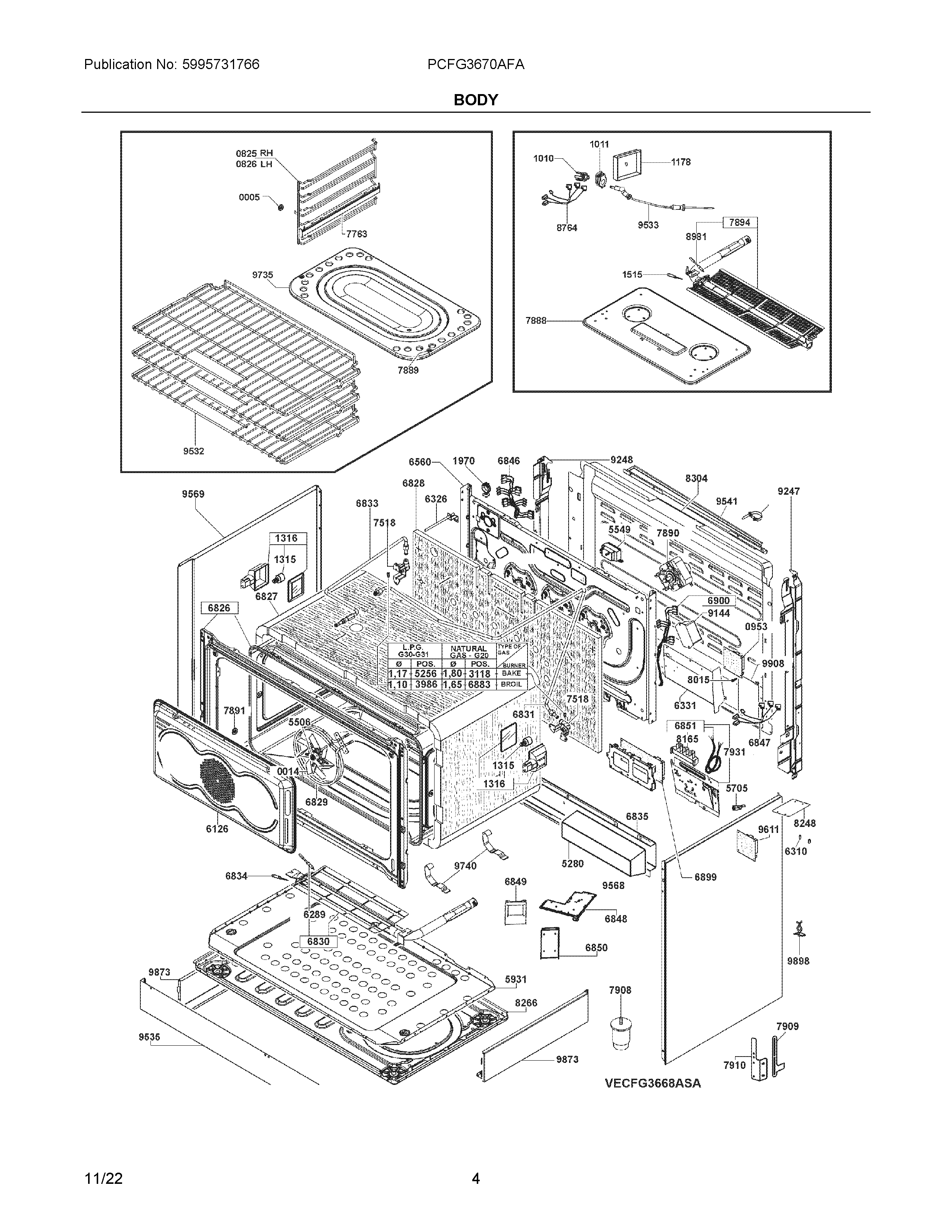

PCFG3670AFA 03 – BODY

PCFG3670AFA 03 – BODY

Written by

in

PCFG3670AFA 03 – BODY

Products

PositionProduct
5BUSHING, RACK SUPPORT, (4)
145304527454 Frigidaire Blade
8255304531576 Frigidaire Glide Rail
8265304531577 Frigidaire Glide Rail
9535304532685 Frigidaire Pc Board
10105304527481 Frigidaire Receptacle Assembly
1011COVER, RECEPTACLE, MEAT PROBE
11785304531579 Frigidaire Housing
1315BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2)
1316LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), W/BULB
1515THERMOCOUPLE
1970CLAMP, CABLE, (6)
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
39865304532725 Frigidaire Orifice
5256ORIFICE, LP GAS, 1.17, OVEN BURNER
5280COUNTERWEIGHT, (2)
55065304527436 Frigidaire Nut
5549THERMOSTAT
5705CLAMP, WIRING
5931SHIELD, OVEN BURNER, LOWER
6126COVER, CONVECTION FAN
6289IGNITOR, OVEN BURNER
6310SPACER, (4)
63265304527492 Frigidaire Probe
63315304527494 Frigidaire Power Electronics
65605304532741 Frigidaire Panel
6826LINER ASSEMBLY, OVEN, W/FRONT FRAME
6827INSULATION, OVEN WRAPPER
6828INSULATION, OVEN REAR
6829ELEMENT, CONVECTION
6830BAKE BURNER, ASSEMBLY, W/IGNITOR
6831TUBE, OVEN BURNER, SUPPLY
6833TUBE, BROIL BURNER, SUPPLY
68345304532749 Frigidaire Thermocouple
6835SUPPORT BRACKET, WEIGHT
6846HARNESS, WIRING, LH SIDE
6847HARNESS, WIRING
6848SUPPORT
6849SUPPORT
6850SUPPORT
6851P
6883WCI 5304532724
68995304534041 Frigidaire Pc Board
6900MAIN HARNESS KIT W
7518WCI 5304532673
77635304527498 Frigidaire Glide Kit
7888WCI 5304532735
7889WCI 5304532736
7890WCI 5304527722
7891WCI 5304531574
7894WCI 5304532737
79085304531585 Frigidaire Cabinet Foot
79095304533551 Frigidaire Bracket and Hook Assembly
7931WCI 5304532738
8015SPACER, ELECTRONIC UNIT, (3)
81655304527478 Frigidaire Block Terminal
8248SHIELD, FEEDER BOARD
82665304527703 Frigidaire Base Assembly
8304WCI 5304532726
87645304527530 Frigidaire Harness
8981WCI 5304532727
9144WCI 5304527783
9247WCI 5304527457
9248WCI 5304527458
95325304527737 Frigidaire Rack
95335304527535 Frigidaire Probe
95355304527738 Frigidaire Panel
9541WCI 5304527740
95685304531626 Frigidaire Panel
95695304531627 Frigidaire Panel
96115304527540 Frigidaire PC Board
9735WCI 5304532729
9740WCI 5304532681
9771WCI 5304532731
98735304527771 Frigidaire Cover Kit
9898WCI 5304527444
9908WCI 5304527568
