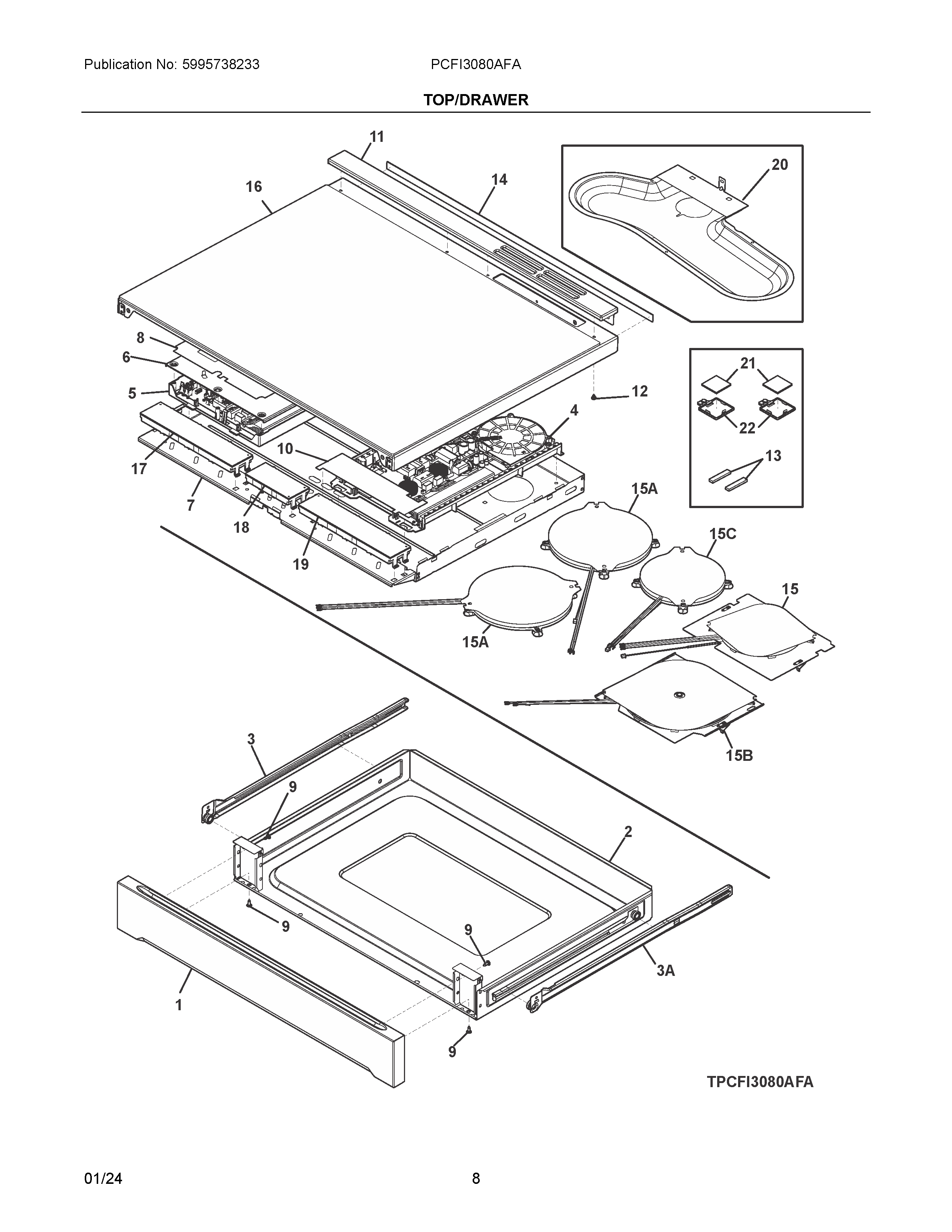

PCFI3080AFA 04 – TOP/DRAWERadmin2025-04-26T11:34:07+00:00PCFI3080AFA 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| NI | 316089500 Frigidaire Oven Screw |
| NI | 316001017 Frigidaire Screw |
| NI | HARNESS, WIRING, FERRITE GROUND |
| NI | 387856311 Frigidaire Screw |
| NI | 5304533972 Frigidaire Harness Assembly |
| NI | 5304533959 Frigidaire Harness |
| NI | HARNESS |
| NI | SCREW |
| 1 | PANEL |
| 2 | 5304528242 Frigidaire Assembly Drawer |
| 3A | 5304526307 Frigidaire Glide |
| 3 | 5304526306 Frigidaire Glide |
| 4 | CONTROL MODULE |
| 5 | 5304533955 Frigidaire Control Module |
| 6 | 5304528719 Frigidaire Support |
| 7 | 5304528600 Frigidaire Box |
| 8 | 5304533973 Frigidaire Shield |
| 9 | 5304526533 Frigidaire Screw |
| 10 | 5304533978 Frigidaire Deflector Assembly |
| 11 | TRIM, REAR VENT, STAINLESS |
| 12 | SCREW, M4.2X7X1.06, BLACK |
| 13 | SPACER, COOKTOP BOX |
| 14 | SEAL |
| 15 | 387404760 Frigidaire Range Element Assembly |
| 15C | ELEMENT |
| 15B | 387761255 Frigidaire Element Assembly |
| 15A | 357226373 Frigidaire Element |
| 16 | SMOOTHTOP, ASSEMBLY, STEEL/GLASS, STAINLESS |
| 17 | 5304536435 Frigidaire Controller |
| 18 | 5304536437 Frigidaire Controller |
| 19 | 5304536436 Frigidaire Controller |
| 20 | DUCT, AIR INTAKE |
| 21 | SHIELDING, FERRITE BAR |
| 22 | BRACKET, FERRITE SHIELD |
