PCG23NGMHFWW FREEZER DOOR

PCG23NGMHFWW FREEZER DOOR

Written by

in

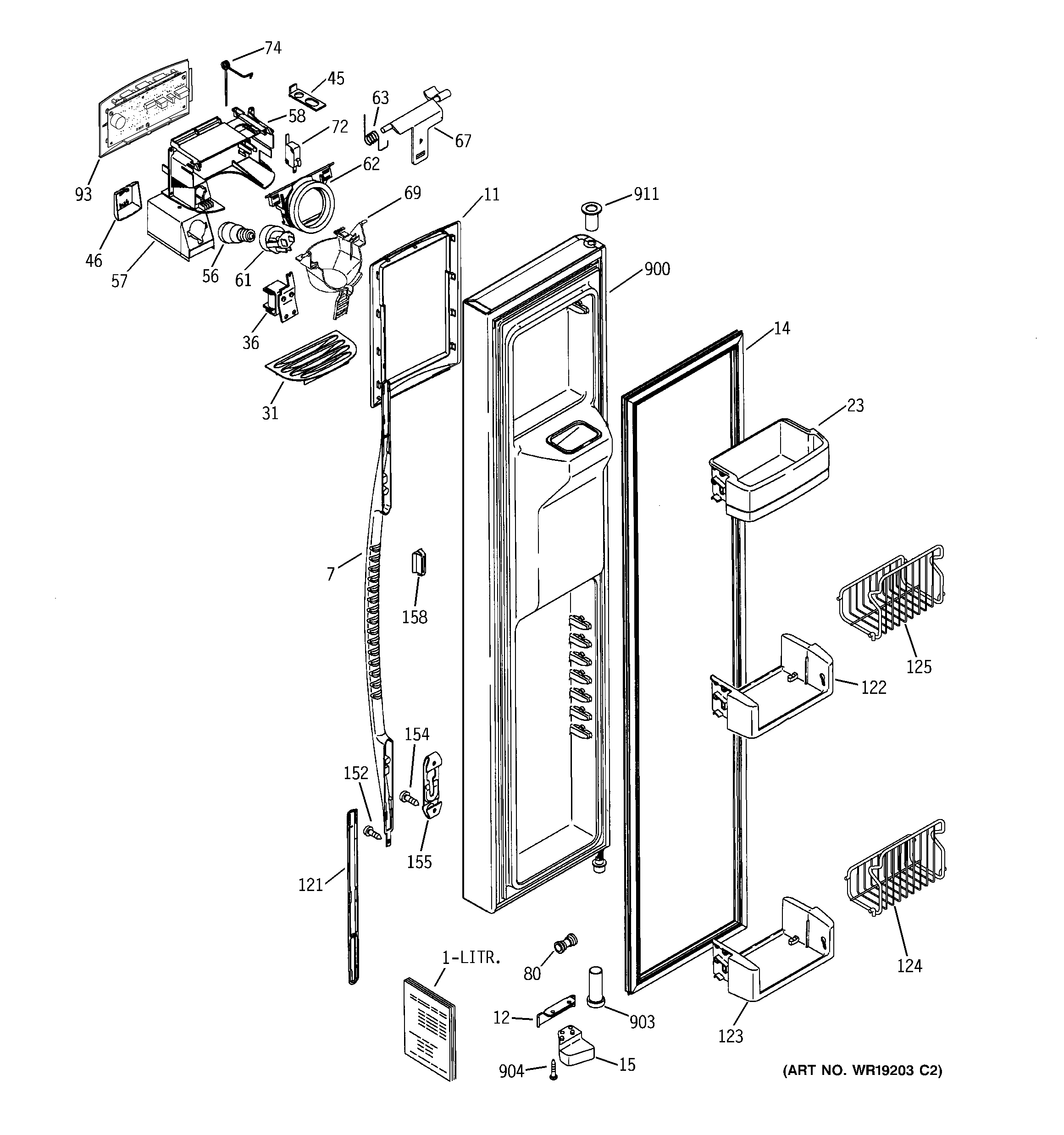

PCG23NGMHFWW FREEZER DOOR

Products

Position	Product
1	GEN 31-45940
1	GEN 49-60243
1	GEN 46-60312
1	GEN 49-60358
7	GEN WR12X10430
7	GEN WR12X10406
11	GEN WR38X10227
11	WR38X10237 GE Refrigerator Black Recess Trim
12	WR02X13425 GE Refrigerator Door Stop
12	WR02X13424 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
14	WR24X10156 GE Refrigerator Door Gasket White
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
23	GEN WR71X10355
31	WR17X11654 GE Refrigerator White Recess Grille
31	WR17X11655 GE Refrigerator Grille Recess Black
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
46	GEN WR02X11177
46	GEN WR02X11434
46	GEN WR02X11433
56	WR01X37886 GE Refrigerator Dispenser Light
57	WR02X10670 GE Refrigerator Reflector Light
58	WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
58	WR17X11170 GE Refrigerator Housing Shield Dispenser
61	WR2X9561 GE Refrigerator Lamp Socket
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	GEN WR17X11523
69	GEN WR17X11529
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	GEN WR02X10584
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10238
93	GEN WR55X10239
121	GEN WR12X10405
121	GEN WR12X10429
122	WR71X10256 GE Refrigerator Module Support
123	GEN WR71X10358
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
152	GEN WR01X10038
154	SCR 8-18 AB RNT20 5/8 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
158	GEN WR02X10646
900	DOOR FOAM ASM WH
900	GEN WR78X10984
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10955 GE Refrigerator Door Thimble
911	WR01X10956 GE Door Thimble
