PCG23YESAFBB FREEZER DOOR

PCG23YESAFBB FREEZER DOOR

Written by

in

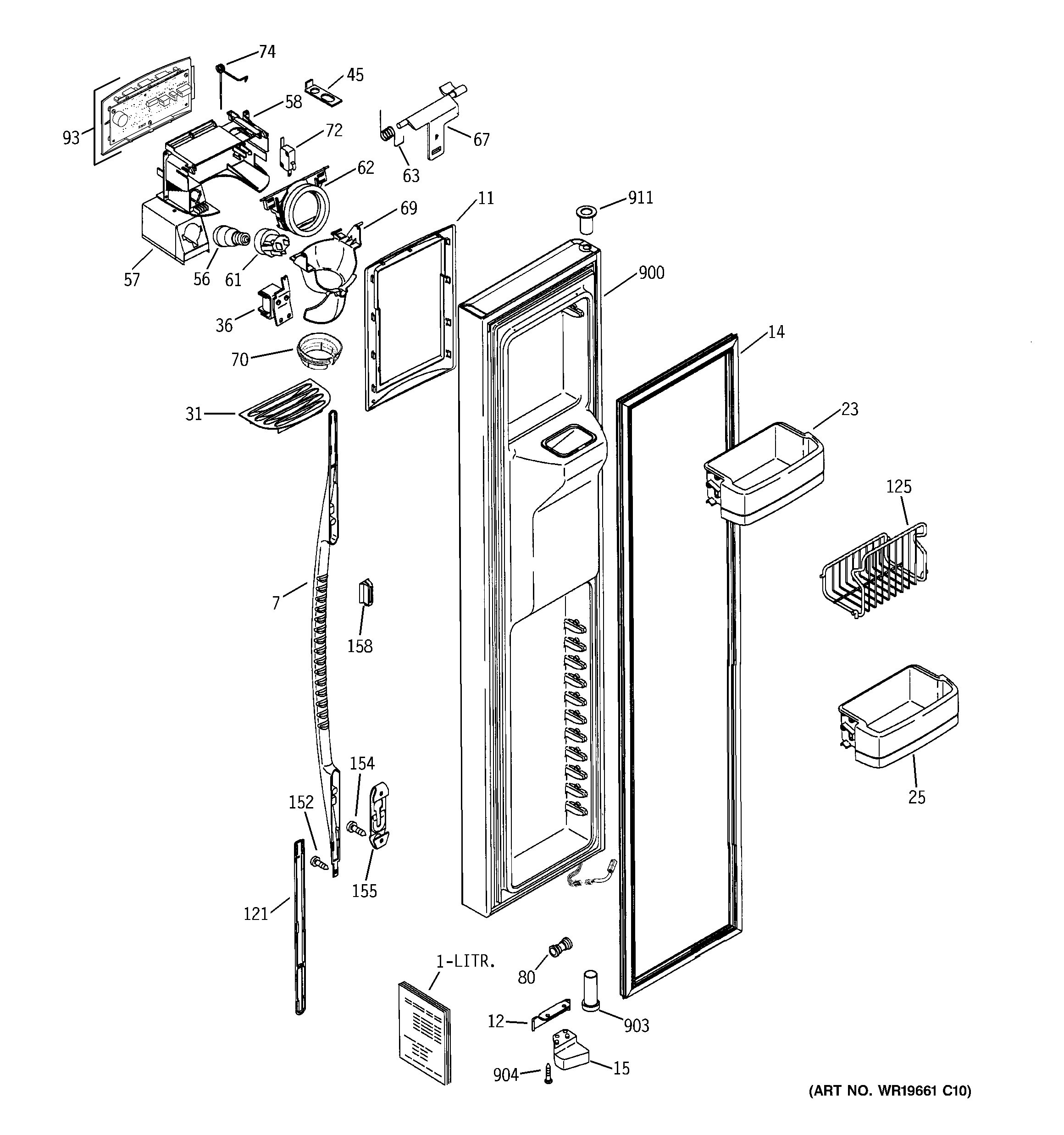

PCG23YESAFBB FREEZER DOOR

Products

PositionProduct
1GEN 49-60345
1WR02X12187 GE Refrigerator Support Shelf
1GEN 31-46222
1WR02X12188 GE Refrigerator Support Shelf
1WR01X10568 GE Refrigerator Scr8-18 AB UFL 1.5 Stainless Steel
7GEN WR12X10430
7GEN WR12X10406
11WR38X10237 GE Refrigerator Black Recess Trim
11GEN WR38X10227
12WR02X13425 GE Refrigerator Door Stop
12WR02X13424 GE Refrigerator Door Stop
14WR24X10156 GE Refrigerator Door Gasket White
14WR24X20455 GE Refrigerator Freezer Door Gasket
15WR02X10780 GE Refrigerator Cam Closure
15WR02X10638 GE Refrigerator Cam Closure
23WR71X10254 GE Refrigerator Fixed Shelf Module
25GEN WR71X10355
31WR17X11655 GE Refrigerator Grille Recess Black
31WR17X11654 GE Refrigerator White Recess Grille
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
57WR02X10670 GE Refrigerator Reflector Light
58WR49X10227 GE Refrigerator Dispenser Housing Shield Kit
58WR49X10228 GE Dispenser Shield Housing Kit
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69GEN WR17X11881
69GEN WR17X11883
70WR49X10076 GE Refrigerator FUNL EXTN BK
70GEN WR17X11265
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10483
93GEN WR55X10480
121GEN WR12X10429
121GEN WR12X10405
125GEN WR71X10379
152GEN WR01X10467
154SCR 8-18 AB RNT20 5/8 S
155WR02X10643 GE Refrigerator Handle Lock Bracket
158GEN WR02X10646
900GEN WR78X11172
900GEN WR78X11173
903WR01X10208 GE Refrigerator Door Thimble
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10955 GE Refrigerator Door Thimble
911WR01X10956 GE Door Thimble
