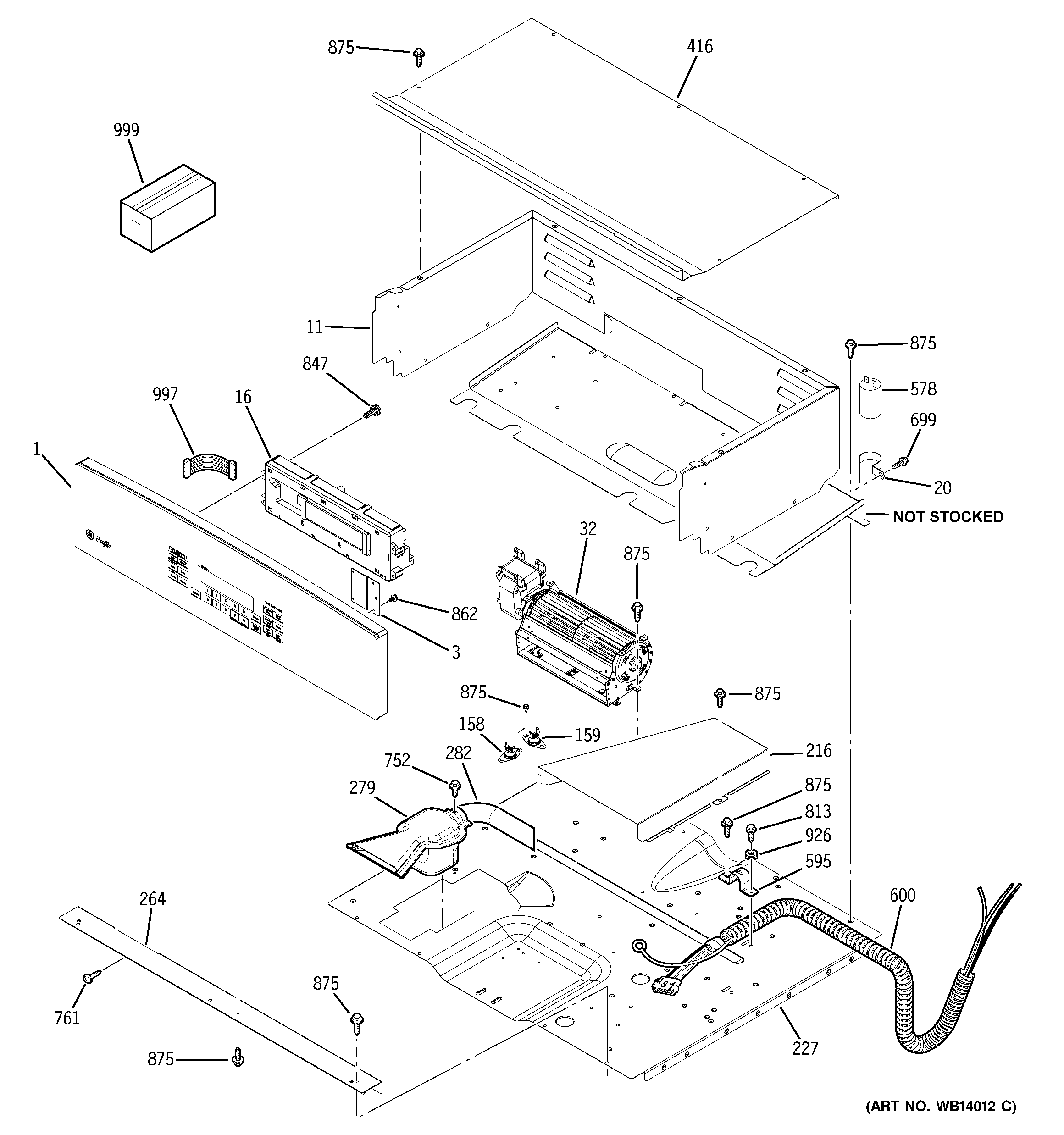

PCK916WM1WW CONTROL PANEL

PCK916WM1WW CONTROL PANEL

Written by

in

PCK916WM1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11093
3GEN WB02T10386
11WB02T10362 GE Fan Housing
16GEN WB27T10922
20WB02T10152 GE Oven Motor Capacitor Bracket
32GEN WB26T10045
158WB24T10144 GE Oven Limit Switch
159WB24K5085 GE Oven Limit Switch
216WB34T10057 GE Oven Top Cover Wire
227GEN WB02T10356
264WB07T10539 GE Trim Vent
279WB38T10019 GE Oven Vent Box Assembly
282WB28T10213 GE Vent Tube Assembly
282WB28T10212 GE Inlet Duct Vent
416WB02T10363 GE Electrical Top Cover
578WB27T10662 GE Oven Capacitor
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18T10221
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
761WB1K5029 GE Oven Screw
761WB1K5162 GE Oven Black Screw
813WB1X1261 GE Oven Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
862GEN WB01X1178
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
926GROUND WASHER
997WB18T10386 GE Oven Touch Glass Wire Harness
999GEN 31-10666
999GEN 31-10653
999GEN 31-14521
999GEN 29-5587
999INSTR INSTALL OVN DOOR
