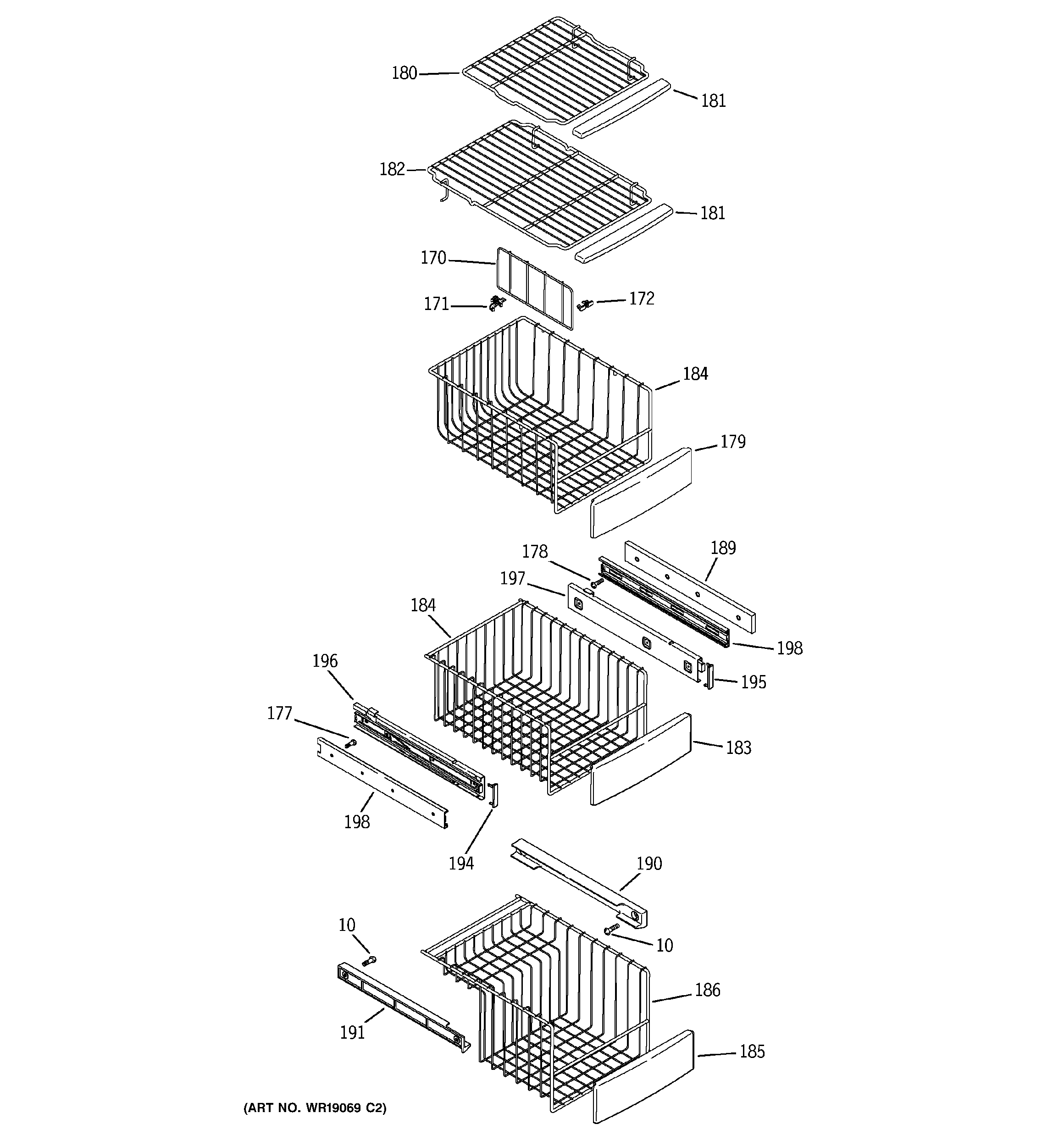

PCP23SHMFFBS FREEZER SHELVES

PCP23SHMFFBS FREEZER SHELVES

Written by

in

PCP23SHMFFBS FREEZER SHELVES

Products

PositionProduct
10WR01X10065 GE Screw
170GEN WR21X10058
171GEN WR02X11252
172GEN WR02X11253
177WR01X10613 GE Refrigerator Screw 8-18 AB PNT20 7/16 S
178WR01X10614 GE Refrigerator Screw 8-18 AB PNT 20 13/16
179GEN WR12X10553
180WR71X10527 GE Wire Shelf
181WR38X10456 GE Refrigerator Trim Shelf
182WR71X10966 GE Refrigerator Shelf Slide-Out
183GEN WR12X10510
184WR21X10156 GE Refrigerator Basket
185GEN WR12X10552
186WR21X10041 GE Refrigerator Wire Basket
189WR17X10945 GE Refrigerator Spacer
190WR72X10066 GE Refrigerator Support Slide Basket
191WR72X10067 GE Refrigerator Support Slide Basket
194GEN WR02X10810
195WR02X10811 GE Refrigerator Right Inside Cover
196WR72X10068 GE Refrigerator Left Hand Slide & Bracket Assembly
197WR72X10069 GE Refrigerator Slide and Bracket Assembly
198WR72X10070 GE Refrigerator Slide Liner
