PCR06WATESS CABINET & SHELVES

PCR06WATESS CABINET & SHELVES

Written by

in

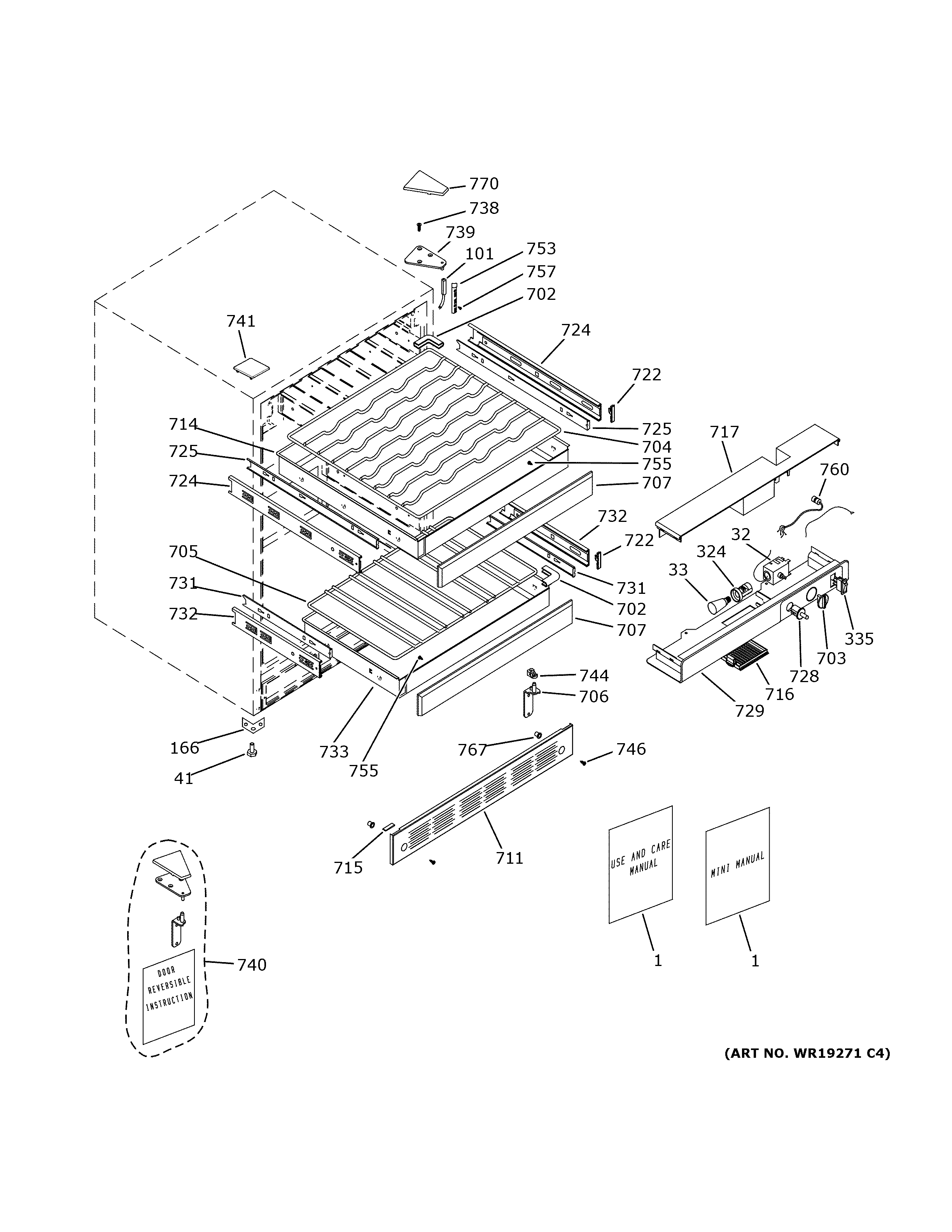

PCR06WATESS CABINET & SHELVES

Products

PositionProduct
1USE AND CARE MANUAL
1MINI MANUAL
1PM MINI MANUAL
32WR09X10093 GE Refrigerator Temperature Control
33WR23X23840 GE Refrigerator 120V LED Bulb
41WR01X10384 GE Refrigerator Rear Levelling Leg
101WR55X10409 GE Refrigerator Temperature Sensor
166WR02X11844 GE Leveling Leg Support
324WR23X10376 GE Refrigerator Lamp Socket
335WR23X10292 GE Switch
702WR02X11830 GE Refrigerator Corner Piece
703WR02X11408 GE Refrigerator Thermostat Knob
704WR71X10468 GE Refrigerator Bottle Rack
705GEN WR71X10469
706WR17X11701 GE Refrigerator Hinge & Cam Riser Assembly
707WR40X10048 GE Front Frame
711WR79X10030 GE Refrigerator Kick Plate Stainless Steel
714GEN WR72X10120
715WR02X11414 GE Front Kick Plate
716WR02X11415 GE Refrigerator Bulb Shield
717GEN WR17X11674
722WR02X11412 GE Front Guide
724WR17X11393 GE Refrigerator Inner Liner Guide
725WR72X10122 GE Frame Guide
728WB24T10147 GE Oven SPDT Light Switch
729GEN WR17X12159
731GEN WR72X10123
732WR17X11394 GE Refrigerator Inner Liner Guide Short
733WR72X10121 GE Refrigerator Bottle Shelf Frame
738WR01X10349 GE Upper Hinge Screw
739UPPER HINGE RIGHT
740REVERSE DOOR HINGE KIT
741HINGE COVER
744WR02X11417 GE Refrigerator Cam Riser
746WR01X10643 GE Kick Plate Screw – Stainless
753WR02X11410 GE Refrigerator Temperature Control Bulb Cover
755WR01X10526 GE Frame Front Screw
757GEN WR01X10470
760WR23X10410 GE Refrigerator Harness Temp Control
767WR02X11485 GE Spacer Kick Plate
770WR02X11486 GE Refrigerator Cover Hinge Support Right Hand
