PCT920SR2SS CONTROL PANEL

PCT920SR2SS CONTROL PANEL

Written by

in

PCT920SR2SS CONTROL PANEL

Products

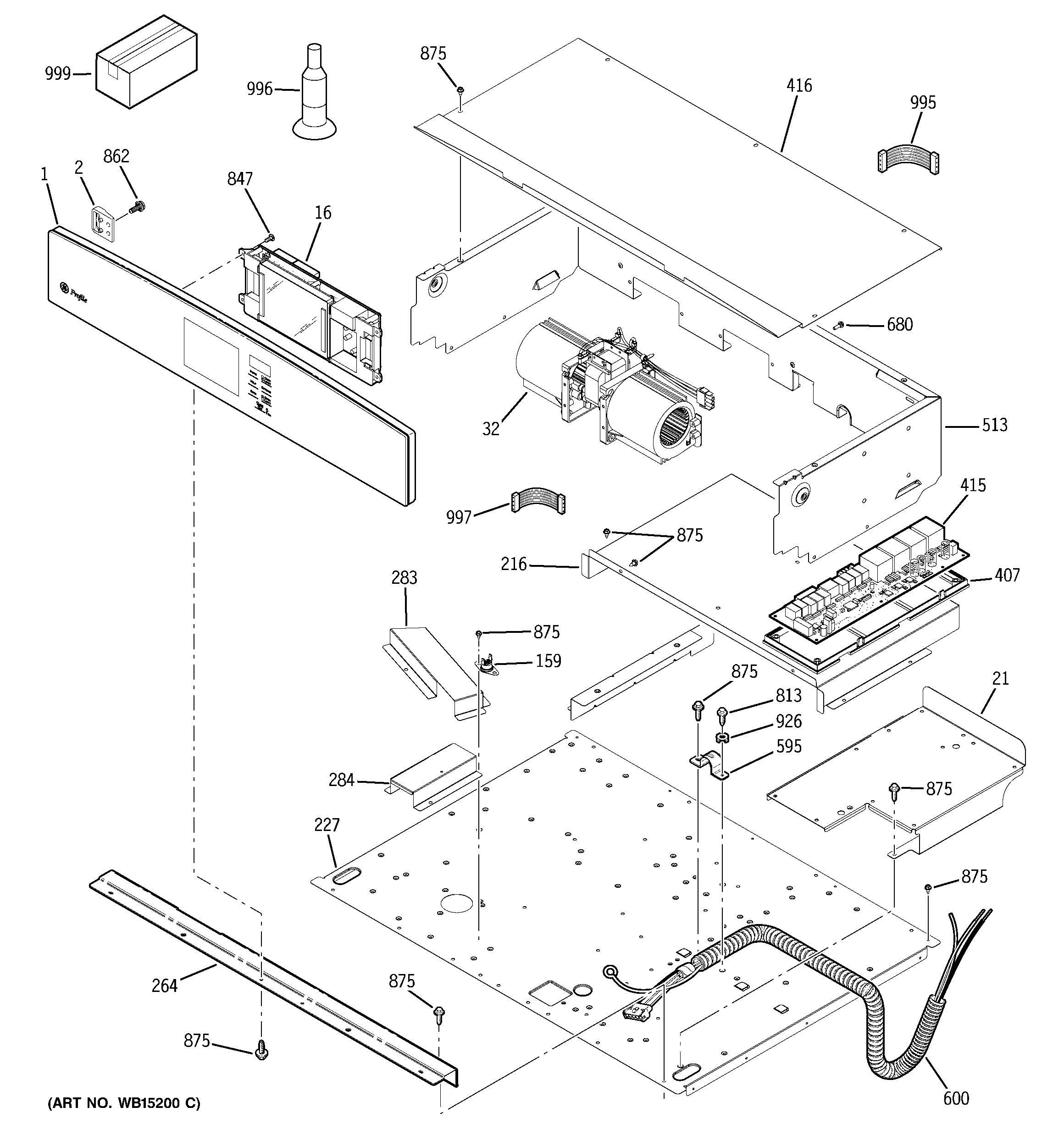

PositionProduct
1GEN WB27T11053
2GEN WB02T10387
16HOUSING LCD & BKT ASM
21GEN WB02T10400
32WB26X10264 GE Oven Fan Kit
159GEN WB24T10172
216GEN WB02T10374
227WB02T10378 GE Insulation Retainer Top
264WB07T10580 GE Oven Inner Trim Vent
283WB02T10402 GE Oven Exhaust Duct
284WB02T10403 GE Oven Exhaust Duct
407WB02T10512 GE Range Relay Board Frame
415WB27T11299 GE Oven Relay Board Assembly
416WB02T10565 GE Fan Housing Cover
513GEN WB26T10047
595WB2K5126 GE Oven Condenser Clamp
600OPT CONDUIT WIRE ASM 72"
600WB18T10444 GE Conduit Wire Assembly 52"
680WR1X1850 GE Refrigerator Screw
813WB1X1261 GE Oven Screw
847WB1K5049 GE Screw
875WH2X930 GE Screw
926GROUND WASHER
995GEN WB18T10475
996WB02T10303 GE Cleaner Lubricant
997GEN WB18T10402
997GEN WB18T10474
999GEN 31-10666
999INSTR INSTALL OVN DOOR
999GEN 29-5679
999GEN 31-14863
