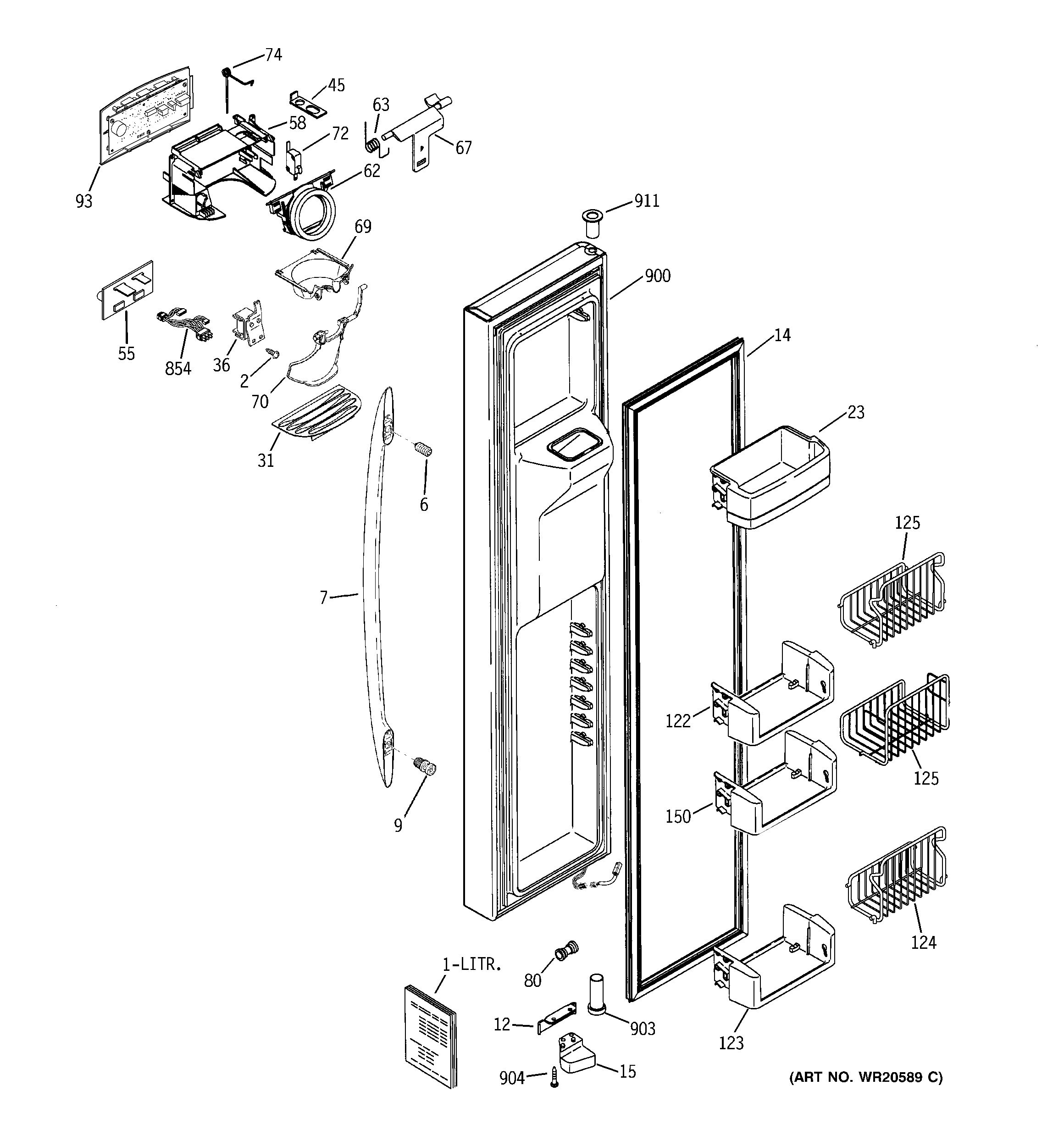

PCU23VGXAFSS FREEZER DOOR

Products

Position	Product
1	GEN 31-46245
1	GEN 49-60565-1
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6	WR01X10450 GE Refrigerator Screw Set
7	GEN WR12X10698
9	WR02X12028 GE Refrigerator Stainless Steel Handle Screw Fastener
12	WR02X13425 GE Refrigerator Door Stop
14	GEN WR24X10234
14	GEN WR24X10260
15	WR02X10780 GE Refrigerator Cam Closure
23	GEN WR71X10355
31	WR17X12625 GE Refrigerator Recessed Grille
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	WR17X12496 GE Refrigerator Housing Shield Dispenser
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12120 GE Refrigerator Ice Dispenser Funnel
70	WR17X12494 GE Refrigerator Paddle Ice Dispenser
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	WR55X10953 GE Refrigerator Dispenser Control
123	GEN WR71X10358
124	WR21X10111 GE Refrigerator Basket Wire TILTOUT
125	WR21X10110 GE Refrigerator Basket Wire TILTOUT
150	WR71X10256 GE Refrigerator Module Support
854	WR23X10665 GE Dispenser Recess Harness
900	GEN WR78X12468
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
