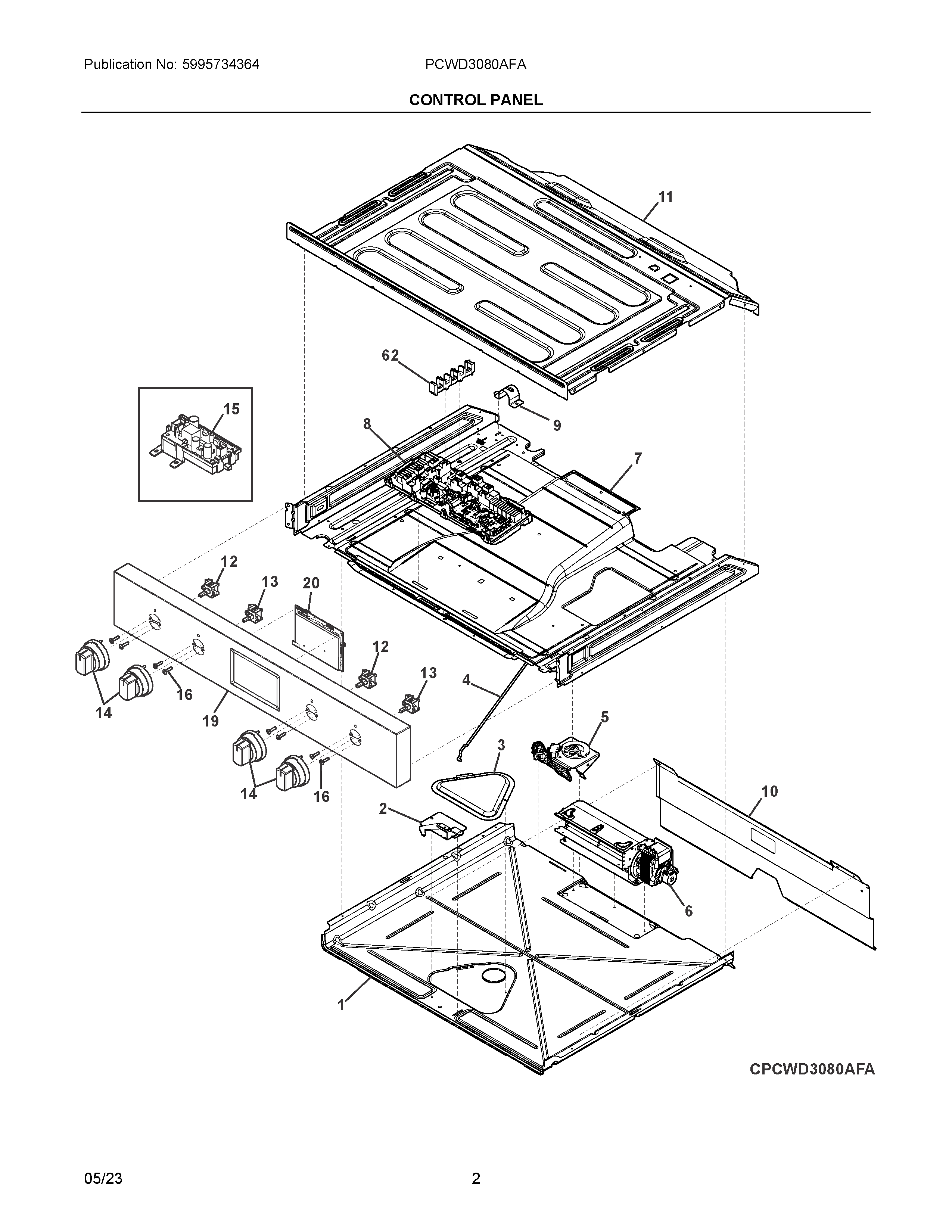

PCWD3080AFA 02 – CONTROL PANELadmin2025-04-26T11:36:14+00:00PCWD3080AFA 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| NIB | 316205500 Frigidaire Oven Nut |
| NI | 5304532094 Frigidaire Harness Assembly |
| NI | HARNESS ASSEMBLY |
| NI | 5304532100 Frigidaire Harness |
| NI | 5304530448 Frigidaire Harness |
| NI | HARNESS, WIRING, OVC, TO LOWER OVEN |
| NI | 5304535368 Frigidaire Harness |
| NI | 387856311 Frigidaire Screw |
| NIA | 316001017 Frigidaire Screw |
| NI | WCI 387872717 |
| NIC | WCI 5304528293 |
| 1 | SHIELD, BOTTOM DUCT |
| 2 | 5304526367 Frigidaire Latch Door |
| 3 | COVER, VENT |
| 4 | 5304526368 Frigidaire Rod Assembly |
| 5 | 5304526552 Frigidaire Motor Assembly |
| 6 | 5304530368 Frigidaire Blower Assembly |
| 7 | 5304526538 Frigidaire Carrier Plate |
| 8 | 5304525432 Frigidaire Board Assembly |
| 9 | BRACKET, CONDUIT MTG. |
| 10 | SHIELD, INSULATION, REAR, UPPER |
| 11 | 5304532474 Frigidaire Shield Assembly |
| 12 | POTENTIOMETER |
| 13 | 808843110 Frigidaire Potentiometer Assembly |
| 14 | KNOB |
| 15 | 5304534050 Frigidaire Pc Board |
| 16 | SCREW, TRUSS, 8-32 X 17.65 |
| 19 | 5304532089 Frigidaire Control Panel |
| 20 | CONTROL,ELEC OVEN PRO DOUBLE |
| 62 | 5304535277 Frigidaire Terminal Block |
