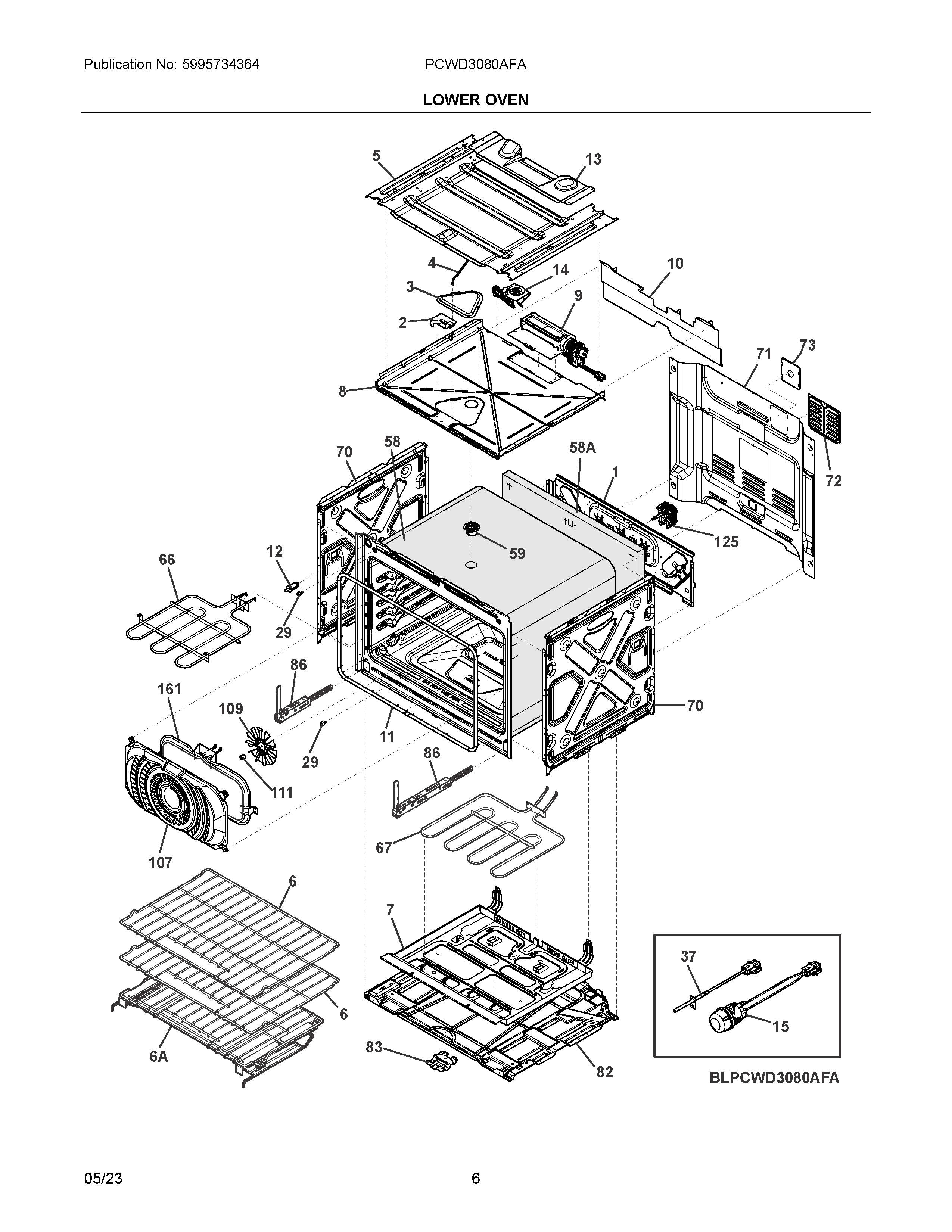

PCWD3080AFA 04 – LOWER OVENadmin2025-04-26T11:37:39+00:00PCWD3080AFA 04 – LOWER OVEN
Products
| Position | Product |
|---|
| NI | 387856311 Frigidaire Screw |
| NIB | 5304526532 Frigidaire Screw |
| NI | 5304532099 Frigidaire Harness |
| NI | SCREW, SELF DRILL, M3.5 X 9.5 |
| NIA | 5304526234 Frigidaire Screw |
| NI | 5304530448 Frigidaire Harness |
| NI | 5304530450 Frigidaire Anti Tip |
| NI | 5304530449 Frigidaire Harness |
| NIA | WCI 387872717 |
| NI | HARNESS, WIRING, OVC, TO LOWER OVEN |
| NI | 5304535368 Frigidaire Harness |
| NI | 5304530459 Frigidaire Harness |
| 1 | PANEL |
| 2 | 5304526367 Frigidaire Latch Door |
| 3 | COVER, VENT |
| 4 | 5304526368 Frigidaire Rod Assembly |
| 5 | 5304526313 Frigidaire Panel |
| 6A | RACK ASSEMBLY, GLIDE |
| 6 | RACK, HANDLED, FLAT |
| 7 | TRAY, HIDDEN BAKE |
| 8 | SHIELD, BOTTOM DUCT |
| 9 | 5304530369 Frigidaire Blower Assembly |
| 10 | SHIELD, INSULATION, LOWER OVEN, DWO |
| 11 | 5304526242 Frigidaire Seal |
| 12 | 808136601 Frigidaire Oven Switch |
| 13 | SHIELD, BAFFLE, LOWER DWO, COOLING |
| 14 | 5304526552 Frigidaire Motor Assembly |
| 15 | 5304530343 Frigidaire Lamp Assembly |
| 29 | 316517600 Frigidaire Oven Spacer |
| 37 | 5304526310 Frigidaire Probe |
| 58 | INSULATION, OVEN, WRAPPER |
| 58A | INSULATION, OVEN, REAR |
| 59 | TUBE, VENT CATALYST |
| 66 | 5304536847 Frigidaire Element-Broil 6Pass |
| 67 | 5304535239 Frigidaire Element-Hidden Bk 2 |
| 70 | PANEL |
| 71 | 5304526330 Frigidaire Shield Assembly |
| 72 | 5304526588 Frigidaire Cover |
| 73 | COVER, ANTI VIBRATION |
| 82 | PLATE-EXT BOTTOM SC |
| 83 | BRACKET, BASE PANEL, MOUNT |
| 86 | 5304530348 Frigidaire Hinge |
| 86A | 5304530349 Frigidaire Hinge |
| 107 | 5304526365 Frigidaire Cover |
| 109 | 5304525455 Frigidaire Blade |
| 111 | 561231207 Frigidaire Nut |
| 125 | 5304526375 Frigidaire Motor |
| 161 | 5304526565 Frigidaire Element |
